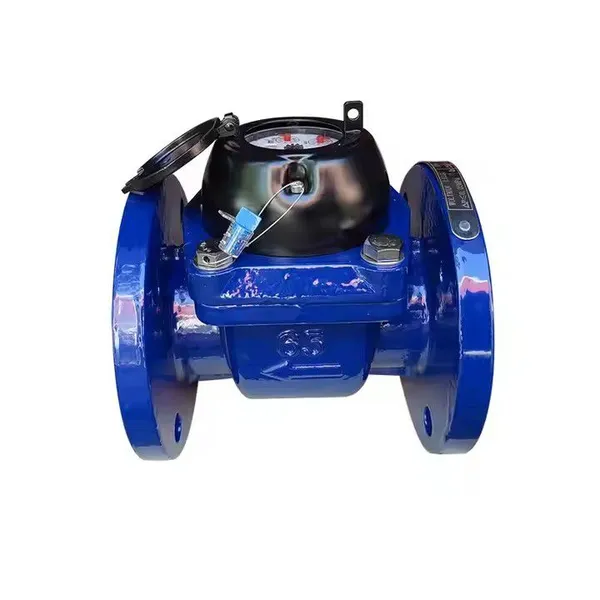

Help Center65mm Irrigation Cast Iron Cold Woltmann Water Meter
Related Products
-
ISO 4064 Class B Smart 50mm Removable Woltman Water MeteNegotiableMOQ: 1 Ton -
Dn50-300 Bulker Flow Meter Woltmann Type Flange Water MeterNegotiableMOQ: 1 Ton
-
Factory Price Woltman Type Irrigation Water Meter Flanged Type Water MeterNegotiableMOQ: 1 Ton
-
LXLC(R)-50~300(mm) Factory Price Removable Dry Dial Type Bulk Meter Woltman Water Meter ManufacturerNegotiableMOQ: 1 Ton
-
Horizontal Installation Cast Iron Flanged End Bulk Flow Meter Woltman Water Meter ManufacturerNegotiableMOQ: 1 Ton
Specification:
Item |
Specification |
Operating condition |
PN: 1.0/1.6 Mpa (10/16bar) |
The water temperature |
cold water up to 50℃ and hot water up to 90℃ |
Standard |
ISO 4064 Class B |
Material |
Cast iron |
Size |
DN40 - DN600 |
Pressure loss |
ΔP25 |
Application:
To totalize the total volume of water passing through the pipeline.
Features: a magnetic drive, dry dial and helix type water meter with an interchangeable measuring unit. It has the advantages of small resistance, negligible head loss, big capacity, excellent accuracy, high measuring capacity, and long life of service. The measuring unit with sealed indicator offers the meter with very clear reading condition. The meters can be equipped with a kind of remote transmission Device, the pulse generating volume could be 100, 1000 or 10000 liter/pulse.
Error curve: From qt inclusive up to and including qs is ±2%; From qmin inclusive up to but excluding qt is ±5%.
Packing:
plywood case per piece, or carton + pallet.
