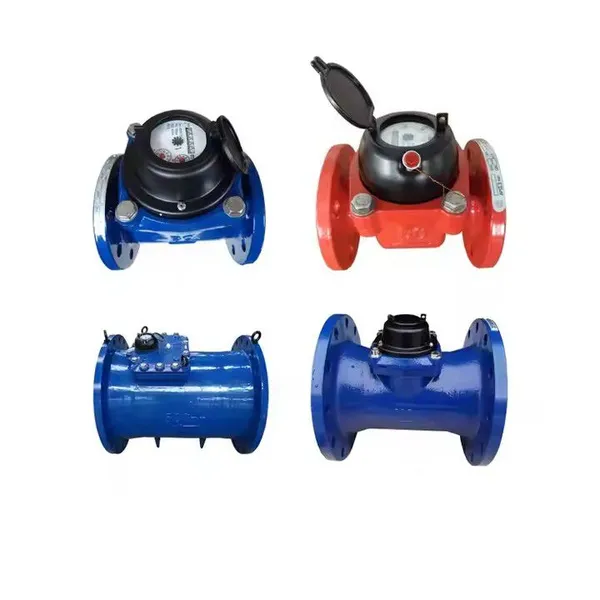

Help CenterHorizontal Installation Cast Iron Flanged End Bulk Flow Meter Woltman Water Meter Manufacturer
Related Products
-
ISO4064 Standard Ductile Iron Irrigation Flange End Bulk Woltman Water MeterNegotiableMOQ: 1 Ton -
Woltman Type Detachable Dry Type Water Meter Lxlc50-600NegotiableMOQ: 1 Ton
-
Double Flange Connection Woltman Type Water MeterNegotiableMOQ: 1 Ton
-
Cast Iron Class B Removable Element Dry Dial Double Flanged Hot Red Woltman Type Water MeterNegotiableMOQ: 1 Ton
-
DN15 Stainless Steel Multi Jet Dry Dial Water MeterNegotiableMOQ: 1 Ton
Application
Measuring the volume of cold (hot) water passing through the pipeline.
Note
This water can be used for a remote reading transmission system as equipped with a built-in sensor.
Feature
a)Removable element structure,easy installation and maintenance,registerfor universal use within this range detachable without removing the meter from the pipeline;
b)Dry-dial,magnetic driven,with sensitive action,small pressure loss;
c)Vacuum sealed register ensures the dial face keep free from fog and reading clearly in a long time;
d)High quality materials for steady and reliable characteristic;
e)echnical data conform to ISO 4064 Class B,and ISO4064-1:2005.
Working condition
Water temperature:0.1℃~50℃(cold water meter) 0.1℃~90℃(hot water meter)
Water pressure:≤1.0MPa(1.6MPa)
Maximum permissible errors
From Q1 to Q2:±5%
From Q2 to Q4:±2%(±3% for water meter)
MAIN TECHNICAL SPECIFICATIONS
Type |
Size(mm) |
Q3/Q1 |
Overload Flow |
Permanent Flow |
Transitional Flow |
Min. Flow |
Min. Reading |
Max. Reading |
m3/h |
M3 |
|||||||
LXLC-50 |
50 |
50 |
31.25 |
25 |
2 |
0.5 |
0.0005 |
999,999 |
LXLC-65 |
65 |
50 |
40 |
3.2 |
0.8 |
0.0005 |
999,999 |
|
LXLC-80 |
80 |
78.75 |
63 |
5.04 |
1.26 |
0.002 |
999,999 |
|
LXLC-100 |
100 |
125 |
100 |
8 |
2 |
0.002 |
999,999 |
|
LXLC-125 |
125 |
200 |
160 |
12.8 |
3.2 |
0.002 |
999,999 |
|
LXLC-150 |
150 |
312.5 |
250 |
20 |
5 |
0.002 |
999,999 |
|
LXLC-200 |
200 |
500 |
400 |
32 |
8 |
0.002 |
999,999 |
|
LXLC-250 |
250 |
787..5 |
630 |
50.4 |
12.6 |
0.02 |
9,999,999 |
|
LXLC-300 |
300 |
1250 |
1000 |
80 |
20 |
0.02 |
9,999,999 |
|
