Product Introduction
HC-AM series electro-optical intensity modulators use the electro-optical effect of lithium niobate crystals and push-pull Machzender interference structure to achieve intensity modulation of optical signals. They have the characteristics of low insertion loss, high modulation bandwidth, high extinction ratio, low half-wave voltage, high damage optical power, etc. They are mainly used for electro-optical signal conversion in high-speed optical communication systems, and the generation of optical edge bands. High extinction ratio optical pulse generation in quantum communication and microwave fiber links.
Product Features
Multiple operating wavelengths
Lower half wave voltage
High bandwidth
Low insertion loss
Application scope
high-speed optical fiber communication system
microwave optical fiber link
quantum communication
functional block diagram

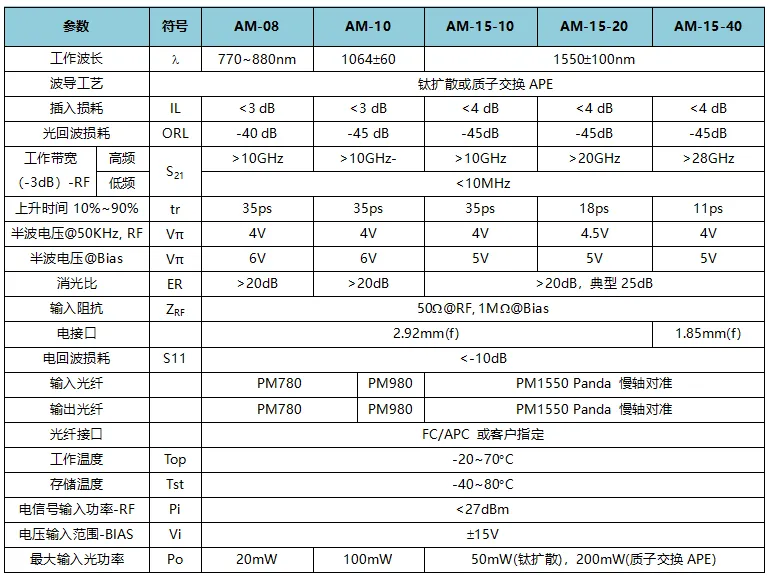

technical specification
Ordering information HC-AM-WL-BW-PP
WL - Working wavelength: 15-1550nm, 10-1064nm, 08-800nm
BW - Working bandwidth: 10G, 20G, 40G
PP- Input/output fiber: PP-- PM/PM PS-- PM/SM
