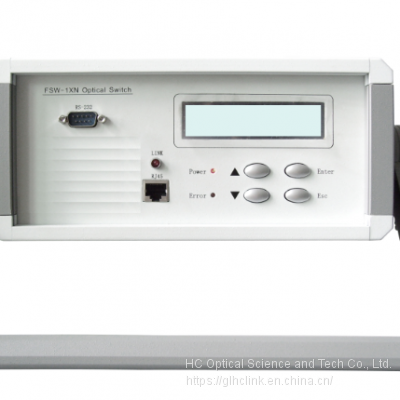

Bench Light Switch,Can be customized according to demand
- 40000 Piece / Pieces per Month
Product Details
Brand Name: | HC | Place of Origin: | China | Model Number: | HC-FSW-1×N-T |
Product Description
1×N desktop optical switch is a kind of optical path control device, which is used for controlling and switching optical paths.The product can manually select and switch the working optical path through the panel button, or control the optical path switch through RS232 serial port and Ethernet port, or set the frequency to automatically scan the optical path to be monitored and switched.In optical communication projects, it is mainly used in: multi-channel optical monitoring in optical transmission system, LAN multi-light source/detector automatic switching and optical sensor multi-point dynamic monitoring system;The optical testing system is used for optical fiber, optical devices, network and field engineering optical cable testing.Optical device installation adjustment.
Features
Low loss and high reliability
The LCD displays the working optical path directly
Standard RS232 serial port, Ethernet interface
Applications
Optical fiber loop
Automatic measurement
Optical fiber network remote monitoring
Specification:
Type no. | unit | HC-FSW-1×N-T | |||
Insertion loss | dB | 1 | 16 | 32 | 64 |
Typ:1.0 Max:1.2 | Typ:1.2 Max:1.4 | Typ:1.4 Max:1.6 | Typ:1.8 Max:2.2 | ||
Working wavelength (optional) | nm | 532~980 | 1260~1650 | ||
Test the wavelength | nm | 650/780/850/980 | 1310/1490/1550/1625/1650 | ||
Return loss | dB | SM≥50、MM≥30 | |||
Channel crosstalk | dB | SM≥55、MM≥35 | |||
Polarization dependent loss | dB | ≤0.05 | |||
Wavelength dependent loss | dB | ≤0.25 | |||
Temperature dependent loss | dB | ≤0.25 | |||
repetitive | dB | ≤±0.02 | |||
The service life of the | time | 107 | |||
Transmitted optical power | mW | ≤500 | |||
Switch time | ms | ≤10( Sequential switch of adjacent channels ) | |||
Working temperature | °C | -10~+50 | |||
Storage temperature | °C | -40~+85 | |||
Electrical source | V | AC 85-264V,50/60Hz | |||
Overall dimensions | mm | 245(w)×110(l)×320(h)mm(>32 way to customize the case ) |
Order Information: HC-FSW-1×N-T-A-B-C-D-E-F
N | A | B | C | D | E |
Channel | Mode | Wavelength | Voltage Type | Fiber Type | Connector |
1~128 | S:SM M:MM | 85: 850nm 13: 1310nm 14: 1490nm 15: 1550nm 162: 1625nm 165: 1650nm 13/15:1310/1550nm X:Others | AC: 85-264V DC: 36-72V AC/ DC: 220V&48V | 5:50/125、6:62.5/125 9: 9/125 X: Others
Internal optical switch module fiber type | FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC STP: ST/PC STA: ST/APC LP: LC/PC LA: LC/APC X: Others |
For more product information, please visit our website:https://www.glhclink.com/index.php?aid=68
