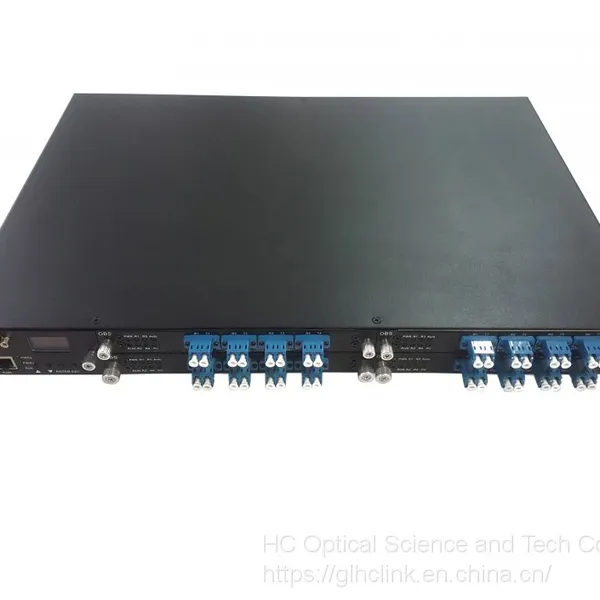

Optical Bypass Switch Equipment，Can be Customized

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

Place of Origin:

China

Model Number:

OBP

HC Optical Science And Tech Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Brand Name HC

Place of Origin China

Model Number OBP

Features

Transparent transmission for optical physical links

Supports gigabit and gigabit network

Multiple heartbeat patterns

Low insertion loss, high stability instantaneous switch

Range of application

PDH, SDH line protection system

DWDM line protection system

Power communication line protection system

CATV line protection system

Parameters

parameter	Unit	Indicators
		Single mode	Multimode
Test the wavelength	nm	1310 / 1550	850
Insertion loss	dB	≤ 1.5	≤ 1.5
Return loss	dB	≥ 45	≥30
Crosstalk	dB	≥ 55	≥ 35
Wavelength dependent loss	dB	≤ 0.25	≤ 0.25
Polarization dependent loss	dB	≤ 0.1	≤ 0.1
Switch time	ms	＜ 10	＜ 10
Optical fiber type		SM（9/125um）	MM（62.5/125um）
Optical connector		LC/PC
Monitor the port		RJ45、RS-232
Working power supply	V	AC: 85 ～ 264（50/60Hz）Or DC: 36 ～ 72
Power consumption	W	＜ 5
Working temperature	℃	-5 ～ 55
Storage temperature	℃	-20 ～ 75
The case type		1U standard 19 "rack（483×220×44mm）

light path principle

Application solutions

Order information HC－OBP－A－B－C－D－E－F－G

A	B	C	D	E	F	G
Structure	Working wavelength	Protect the way	To protect the imlet	Number of light detection paths	Heartbeat/communication interface	The power supply mode
1: 1U rack type	3: 13/15 single mode	1: useing	1:1 road	0: No ground light	1:USB	1: USB power supply
5: Insert disc	4: More than 85 die	3: Power loss + passive heartbeat	2:2 road	1: R1, R2 detection	2:RS232	2:AC85~265V
X: Other	X: Other	4: Power loss + active heartbeat	4: 4 road	2:R1-R4 detection	3:RJ45	3:DC36~72V
		5: Detecting light + passive heartbeat	X: Other	X: Other	4:RS232/RJ45	4: Double AC
		6: Light detection + active heartbeat			5:RS485	5: Double DC
		X: Other			6:RS485/RJ45	6: Hybrid AC/DC
