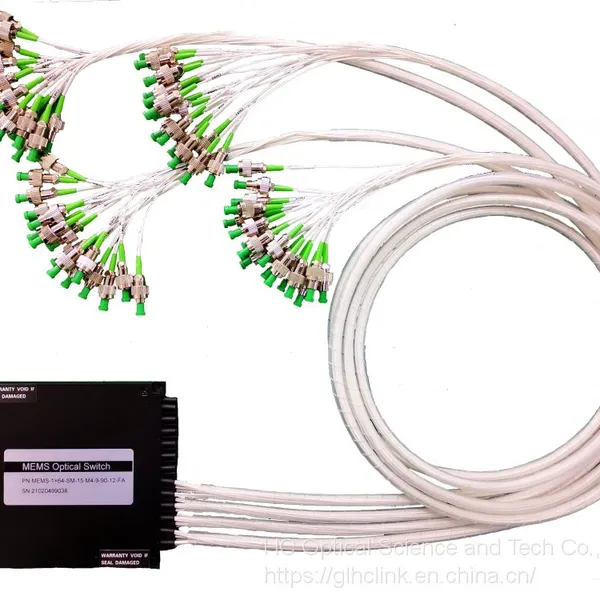

1x64 MEMS Optical Switch Module，Can be Customized

1x64 MEMS Optical Switch Module，Can be Customized thumbnail-1
1x64 MEMS Optical Switch Module，Can be Customized photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
HC
Place of Origin:
China
Model Number:
HC-MEMS-1X64
Contact Supplier Request Quote Chat Now
HC Optical Science And Tech Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HC
Place of Origin China
Model Number HC-MEMS-1X64

Features

Mini Size

 Fast Switch Speed

Low Insertion Loss & PDL

Wide Operating Wavelength Range

High Reliability & Stability




Application

Network Monitor System

Remote Fiber Testing System

 Module & System Integration

Instrumentation


Performance indicators

Model

MEMS-1X64

Type

SM

MM

Working wavelength

1260~1650nm

850±20nm

or 1310±20nm

or 1400~1700nm

Test  wavelength

1310/1550nm

850/1310/1550nm

Insertion loss 1

≤1.0dB（Typical:0.8）（N≤16）

≤1.8dB（Typical:1.6）（16＜N≤64）

≤2.0dB（Typical:1.8）（64＜N≤144）

≤2.2dB（Typical:2.0）（144＜N≤256）

≤1.0dB（Typical:0.8）（N≤8）

≤1.8dB（Typical；1.6）（8＜N≤64）

≤3.2dB（Typical;3.0）（64＜N≤128）

Wavelength dependent   loss

≤0.3 dB（N≤16）

≤0.4 dB（16＜N≤144）

≤0.5 dB（144＜N≤256）

≤0.3 dB（N≤8）

≤0.4 dB（8＜N≤64）

≤0.6 dB（64＜N≤128）

Polarization   dependent loss

≤0.15dB

≤0.2dB

Return loss

≥45   dB

≥30   dB

Crosstalk

≥50   dB

≥30   dB

Repetitive

≤±0.05dB

≤±0.05dB

Switch time

≤15ms

Switching times

≥109

Input optical power

≤500   mW

Operating   voltage/current

DC5V±10%

≤50mA（N≤16）

≤250mA（16＜N≤64）

≤350mA（64＜N≤144）

≤500mA（144＜N≤256）

DC5V±10%

≤50mA（N≤8）

≤250mA（8＜N≤32）

≤450mA（32＜N≤96）

≤550mA（96＜N≤128）

Working   temperature

-5 ~ 70 °C

Storage   temperature

-40 ~ 85 °C

Module size

M1:34(L) x24(W) x 11(H) ±0.2mm

 （N≤16，Bare Fiber）

M2:60(L) x24(W) x 11(H) ±0.2mm

（N≤16，Loose Tube）

M3:90(L) x 55(W) x 12(H) ±0.2mm

（16＜N≤64，Loose Tube）

M4:100(L) x   100(W) x 12(H) ±0.2nm（64＜N≤144，Loose Tube）

M5:110(L) x   141(W) x 12(H) ±0.2nm（144＜N≤256，Loose Tube）

M1:34(L) x24(W) x 11(H) ±0.2mm

 （N≤8，Bare Fiber）

M2:60(L) x24(W) x 11(H) ±0.2mm

（N≤8，Loose Tube）

M3:90(L) x 55(W) x 12(H) ±0.2mm

（8＜N≤32，Loose Tube）

M4:100(L) x   100(W) x 12(H) ±0.2nm（32＜N≤96，Loose Tube）

M5:110(L) x   141(W) x 12(H) ±0.2nm（96＜N≤128，Loose Tube）

Note:1. All parameters were tested at room temperature.

    2. All parameters do not include insertion loss of connectors. A pair of connectors adds 0.3dB loss



Internal Diagram of Module


Module size

M3:


M4:



 Pin definition

Pin number

Pin definition

Signal direction and   type

Functional   specifications

M1/M2

M3/M4/M5

5

1

D0

Input

Data   bit D0 (low bit)

2

D5

Input

Data   bit D5

2

3

VCC

Power

Working   power supply，DC 5V，1.0A

4

D7

Input

Data   bit D7 (high)

5

D6

Input

Data   bit D6

4

6

GND

Power

GND

7

D4

Input

Data   bit D4

6

8

D1

Input

Data   bit D1

9

9

TXD

Output

Serial   port data transmitting terminal (TTL level serial port)

10

10

RXD

Input

Serial   port data receiver (TTL level serial port)

7

11

D2

Input

Data   bit D2

8

12

D3

Input

Data   bit D3

12

13

/BUSY

Output

Low   level ready to reset or receive data

14

/ALARM

Output

A   high level indicates an error in the operation of the optical module

3

15

/STROBE

Input

The   falling edge executes data bits.

14

16

/RESET

Input

Reset   low level to channel 0.

11

GND

Power

GND

13

MODE

Low   level data bit control switch, high level UART control switch

1

NC

dangling

Note: Molex 87833-1620 is used for the electrical interfaces of modules M3, M4 and M5, and it is recommended to use Molex 87568-1694 for customer connectors.




Order information  MEMS-1X64-A-B-C-D-E-F-G

A

B

C

D

E

F

G

Mode

Wavelength

Dimension Type

Fiber type

Fiber diameter

Fiber Length

Connector

S:SM

M:MM

85: 850nm

13: 1310nm

14: 1490nm

15: 1550nm

162: 1625nm

165: 1650nm

13/15:1310/1550nm

X:Other

M1：

34 x 24 x 11

M2：

60 x 24 x 11

M3：

90 x 55 x 12

M4：

100 x 100 x 12

M5：

110 x 141 x 12

X: Other

5:50/125

6:62.5/125

9: 9/125

X: Other

25:250um

90:900um

X: Other

05:0.5m

10:1.0m

X:Other

OO:None

FP: FC/PC

FA: FC/APC

SP: SC/PC

SA: SC/APC

LP: LC/PC

LA: LC/APC

MP: MPO

X: Other



Other channel parameters can be viewed on our company website:/index.php?aid=94
