NOIKE Explosion-proof Target Type Flow Switch NK01BS Baffle Type

Principle Characteristics

Baffle flow switch is mainly an explosion-proof flow switch designed for industrial explosion-proof area. It is suitable for when the flow rate exceeds the set value, the fluid pushes the baffle and drives the micro switch on the top through the mechanical device in the flow switch.

Product Application

Gas-liquid dual type, fire protection industry/chemical industry/industrial automation/mechanical equipment/smelting equipment/hydraulic lubrication equipment.

Technical Parameters

◇ Scope setting: see the table below

◇ Reproducibility: ±2.5% of the total range

◇ Wiring mode: terminal wiring

◇ Output form: micro switch SPDT (normally

     open + normally closed) output

◇ Withstand pressure: 100bar

◇ Average pressure loss: 0.08bar(at maximum flow)

◇ Ambient temperature: -25... 80 °C

◇ Dielectric temperature: 250°C

◇ Interface thread: R1 thread

◇ Protection level: EX CT4

◇ Materials

Main body: stainless steel

Process connection: stainless steel

Connecting rod: stainless steel

Baffle: stainless steel

Protective enclosure: stainless steel explosion-proof junction box

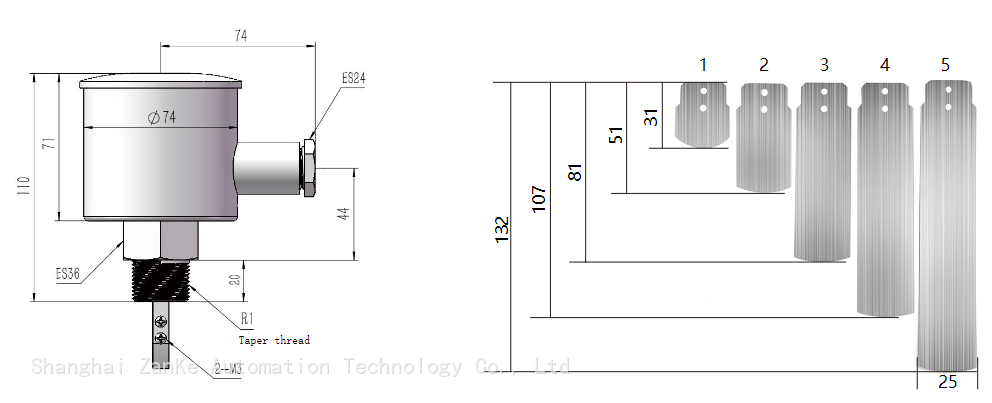

Size Chart（mm）

Prompt Order

1. When ordering, please indicate medium flow direction, medium type, pipe diameter and expected setting value.We can help you to complete the setting before delivery.

2. If it is a viscous medium, please indicate the viscosity, temperature and type of medium.

3. For gaseous medium, please indicate pressure (gauge pressure /absolute pressure), temperature and medium type.

4. The micro switch can be imported according to customer demand two options.
