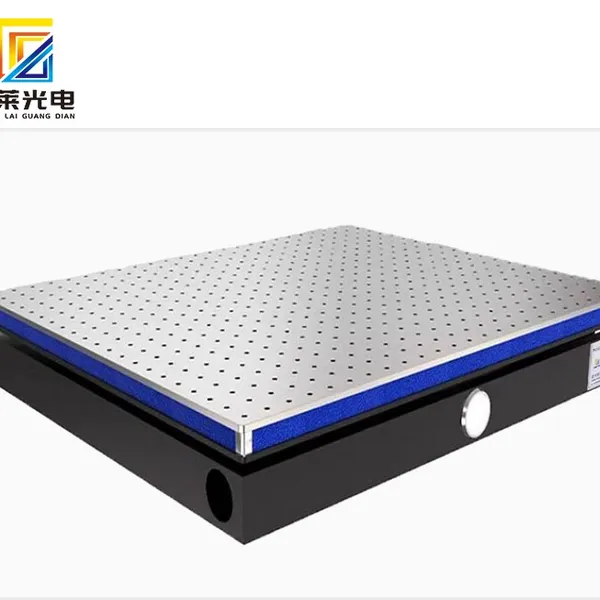

Chuanglai Optoelectronics Desktop Air Floatation Self Leveling Platform Desktop Seismic Platform Air Floatation Vibration Isolation Platform Desktop Air Floatation Vibration Isolation Platform
US$ 10 - 50
MOQ: 1 Piece
Key Specifications
Get Latest Price
Year Established:
2020
Product Certifications:
ISO9001
Port of Shipment:
tianjin, shanghai, shenzheng
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
7 days
Related Products
-
Chuanglai Optoelectronics Optical Platform Precision Damping Vibration Isolation Optical Platform Optical Experiment Seismic Platform Optical Seismic Isolation PlatformUS$ 10 - 50MOQ: 1 Piece -
Air Floating Optical Isolation Platform, Honeycomb Bread Board, Automatic Inflation, Self Horizontal Balance, Shock-absorbing Platform, Independent Suspension TypeUS$ 10 - 50MOQ: 1 Piece
-
Chuanglai Optoelectronics High Precision Optical Flat Plate Bread Plate Experimental Plate Aluminum Alloy Bread Hole Plate Aluminum Alloy Porous Fixed Optical Flat PlateUS$ 10 - 50MOQ: 1 Piece
-
Chuanglai Optoelectronics Optical Darkroom Experimental Simulation Black Dark Environment Steel Plate Dustproof Cover Shed Instrument Rack Light Shield Light Shielding Darkroom CustomizationUS$ 10 - 50MOQ: 1 Piece
-
Optical Dark Box, Laser Specific Dark Box, Optical Cassette, Darkroom, Optical Platform, Shading Dark Box, Darkroom, Experimental Flat PanelUS$ 10 - 50MOQ: 1 Piece
Product features

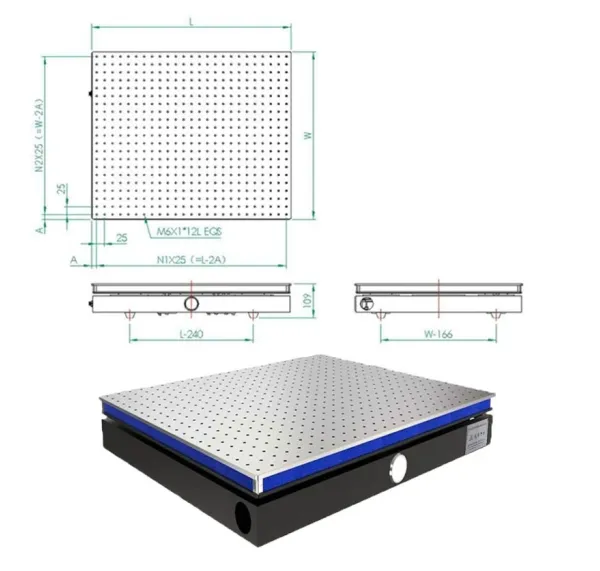

Economical model, can provide breadboard with matrix M6 threaded holes and smooth breadboard according to user's application
Ultra-thin air-floating vibration isolation platform
Tic-tac-toe welded structure table
Three-point automatic balancing height sensor
The equipment is easy to move and can be used for light-load optical instruments
Product parameters
Natural frequency: vertical: 2~3HZ horizontal: 2~3HZ (load related)
Material structure: upper plate: SUS430 cold-rolled ferrite stainless steel lower plate: SS400 steel
Vibration isolation method: ultra-soft molded diaphragm type air spring
Isolation method: self-balancing air floating
Amplitude: <1um
Load capacity: 100KG/M2
Repeat positioning accuracy: ±0.05MM
