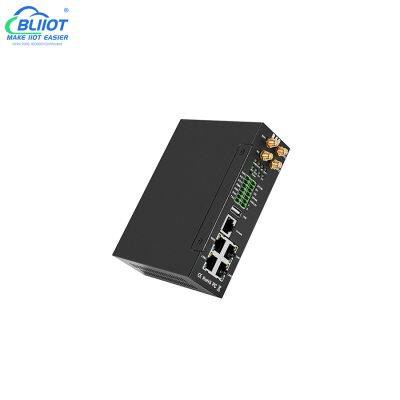

Remote Data Acquisition Control 4G Industrial Router With RS485 2DI 2DO 4AI for Smart Water Conservancy

Shenzhen Beilai Technology Co., Ltd.
Remote Data Acquisition Control 4G Industrial Router With RS485 2DI 2DO 4AI for Smart Water Conservancy thumbnail-1
Remote Data Acquisition Control 4G Industrial Router With RS485 2DI 2DO 4AI for Smart Water Conservancy thumbnail-2
Remote Data Acquisition Control 4G Industrial Router With RS485 2DI 2DO 4AI for Smart Water Conservancy thumbnail-3
Remote Data Acquisition Control 4G Industrial Router With RS485 2DI 2DO 4AI for Smart Water Conservancy thumbnail-4
Remote Data Acquisition Control 4G Industrial Router With RS485 2DI 2DO 4AI for Smart Water Conservancy thumbnail-5
Remote Data Acquisition Control 4G Industrial Router With RS485 2DI 2DO 4AI for Smart Water Conservancy photo-1
Remote Data Acquisition Control 4G Industrial Router With RS485 2DI 2DO 4AI for Smart Water Conservancy photo-2
Remote Data Acquisition Control 4G Industrial Router With RS485 2DI 2DO 4AI for Smart Water Conservancy photo-3
Remote Data Acquisition Control 4G Industrial Router With RS485 2DI 2DO 4AI for Smart Water Conservancy photo-4
Remote Data Acquisition Control 4G Industrial Router With RS485 2DI 2DO 4AI for Smart Water Conservancy photo-5
US$ 195.85 - 240.45 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
BLIIOT
Place of Origin:
China
Model Number:
R40B
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name BLIIOT
Place of Origin China
Model Number R40B

Product Description

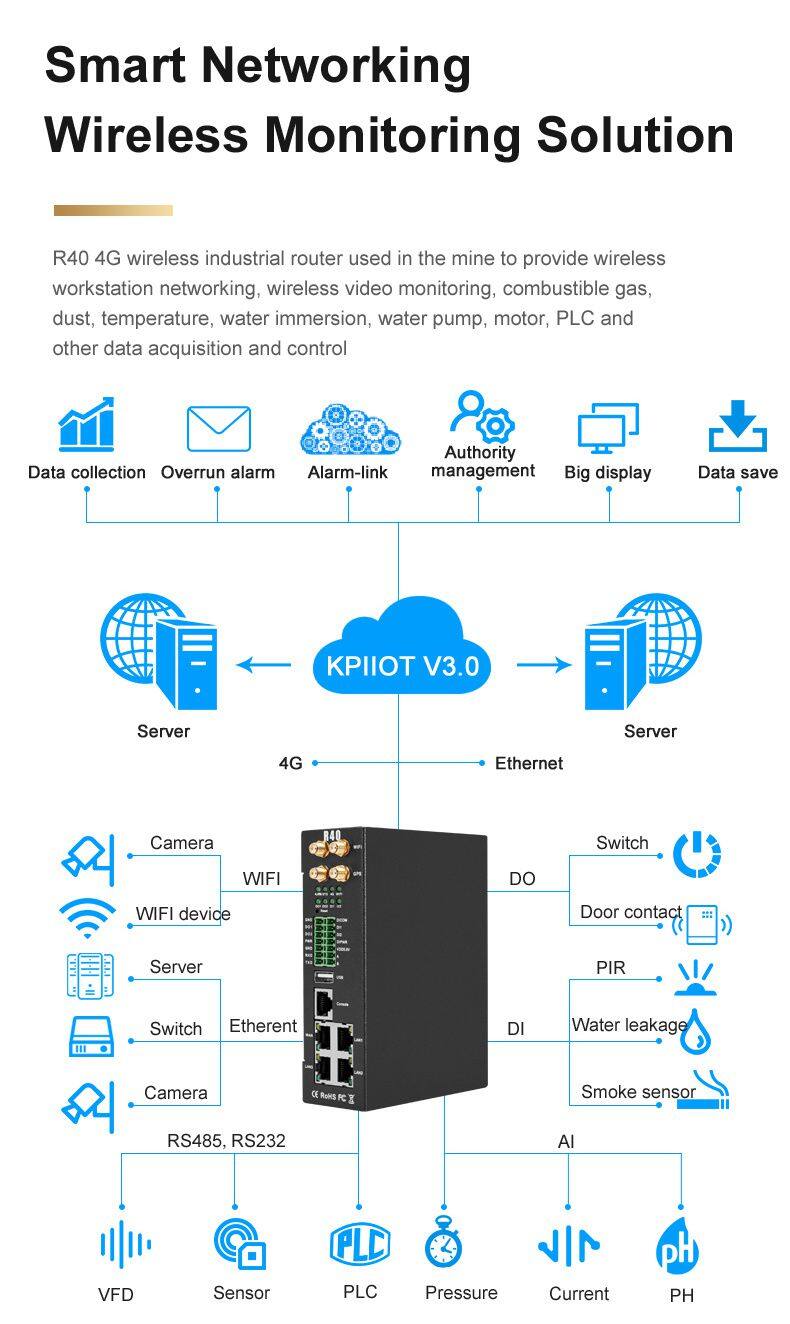

The R40B industrial router communicate via 4G and WiFi, it comes with Digital input, Digital output, Analog input, Ethernet ports, Serial ports, which can perform as Modbus master to collect data from sensors and detectors and upload the data to cloud platform for remote monitoring and event alarms.

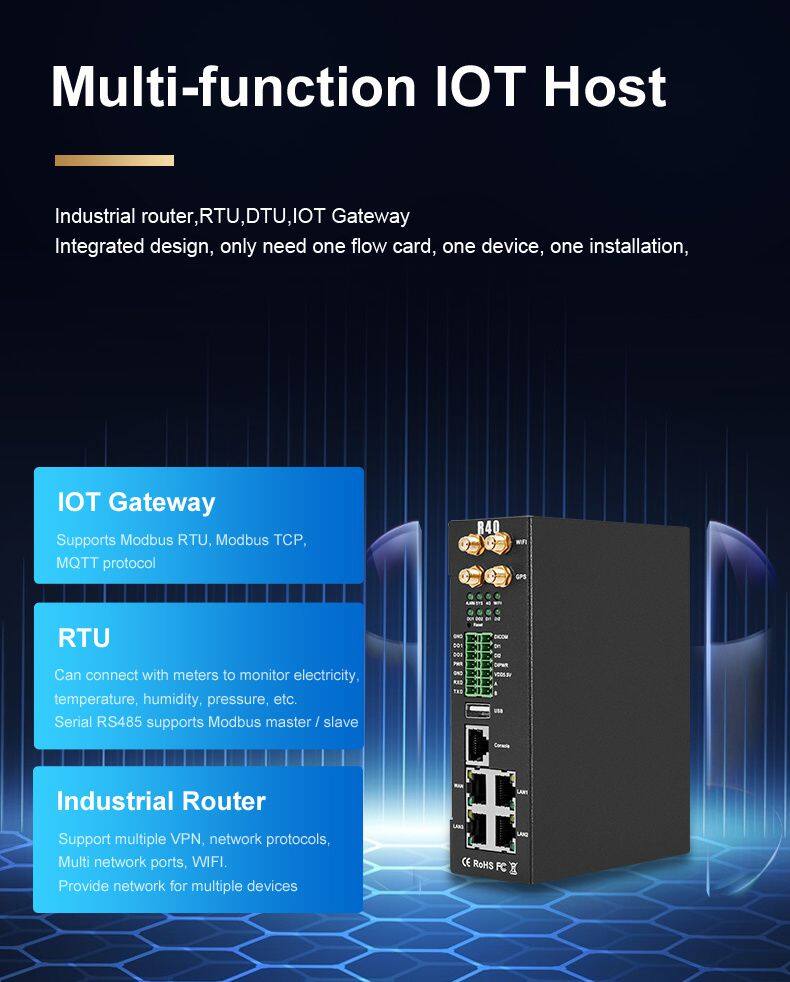

The IoT router integrates the functions of IoT gateway, RTU and industrial router, users only need one IoT router to meet the needs of data acquisition, remote control, event alarm and remote monitoring. It is an ideal solution for smart cities.

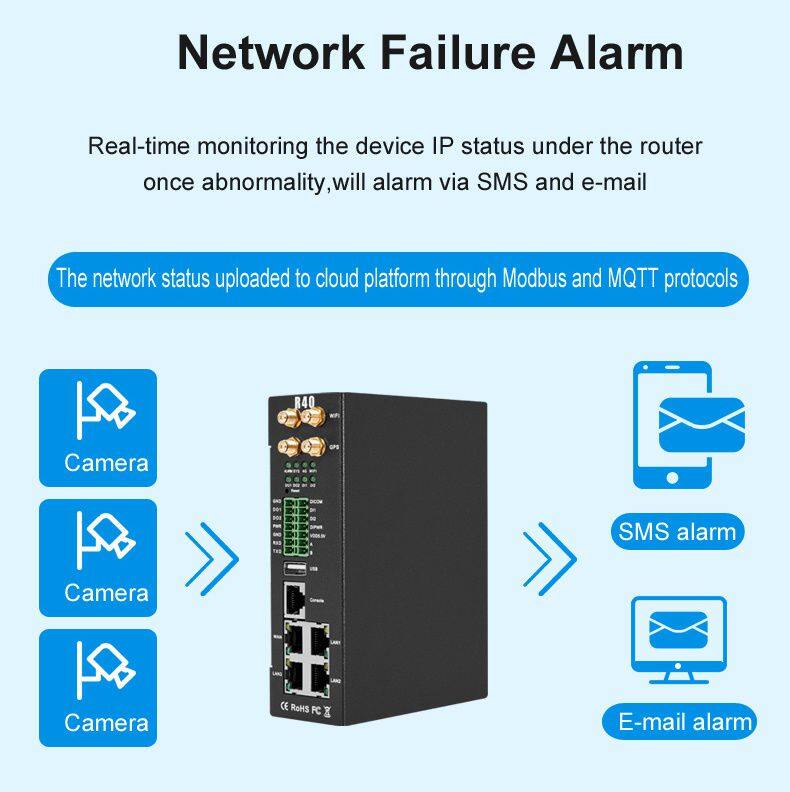

The M2M cellular routers support monitoring the online status of network devices connected to the LAN port, which can be reported to the platform through MODBUS or MQTT.

Product Parameters
ItemParametersDescription
Power
Supply		Input voltage9~57VDC
Input currentNormal: 240mA@12V, max: 800mA@12V
Connection5.08mm terminals
ProtectionAnti-reverse connection Protection
WANQty1
Interface SpecRJ45,10/100Mbps, Automatically adapted to MDI/MDIX
ProtectionESD ±30kV(contact), ±30kV(air)
EFT 40A(5/50ns)
Lightning strike 24A(8/20µs)
LAN(POE)Qty3
Interface SpecRJ45,10/100Mbps, Automatically adapted to MDI/MDIX
POE(optional)Supports 3 POE power output
compatible IEEE802.3at/af
Single POE maximum output power 30W
With power management function
Voltage range 48~57V
ProtectionESD ±30kV(contact), ±30kV(air)
EFT 40A(5/50ns)
Lightning strike 24A(8/20µs)
Serial PortQty2
Type1 RS485, 1 RS232
Baud rate1200, 2400, 4800, 9600, 14400, 19200, 38400, 57600, 115200, 230400
Data Bit5, 6, 7, 8
Parity BitNone, Even, Odd
Stop Bit1, 2
Working modeData transparent transmit, Modbus RTU to TCP, Modbus master, Modbus slave
ProtectionESD(contact): 8KV Surge: 4KV(8/20us)
ESD ±8kV(contact), ±15kV(air)
EFT 4KV, 40A(5/50ns)
ConsoleQty1
TypeCONSOLE
Interface SpecRJ45
ProtectionESD:±8kV(contact), ±15kV(air)
USB
(Reserved)		Qty1
TypeUSB2.0(HOST)
ProtectionESD ±8kV(contact), ±15kV(air)
WIFIAntenna qty2
Antenna typeSMA
Protocol802.11a/b/g/n (mixed)
ModeAP mode, client mode
Frequency2.4G
ChannelChannel 1 - 13
SecurityOpen, WPA, WPA2
EncryptionAES, TKIP, TKIPAES
Connection number16(Max)
Speed300Mbps(Max)
Transmit DistanceOutdoor non-blocking/opening, covering up to 20 meters
SSID
Broadcast Switch		Support
Cellular
Network		Antenna Port Qty1
Antenna Port TypeSMA
4G(L-E)GSM/EDGE:900,1800MHz
WCDMA:B1,B5,B8
FDD:B1,B3,B5,B7,B8,B20
TDD:B38,B40,B41
4G(L- AU)GSM/EDGE:850,900,1800MHz
WCDMA:B1,B2,B5,B8
FDD:B1,B2,B3,B4,B5,B7,B8,B28
TDD:B40
4G(L-A)WCDMA:B2,B4,B5
FDD:B2,B4,B12
4G(L-V)FDD:B4,B13
4G(L-J)WCDMA:B1,B3,B8,B18,B19,B26
FDD:B2,B4,B12
TDD: B41
4G(L-CE)GSM/EDGE:900,1800MHz
WCDMA:B1,B8
TD-SCDMA:B34,B39
FDD:B1,B3,B8
TDD:B38,B39,B40,B41
SIMQty2
Interface SpecDrawer interface, supports 1.8V/3V SIM/UIM (NANO)
ProtectionIn-built 15KV ESD Protection
GPS
(optional)		Antenna qty1
Antenna typeSMA
Tracking Sensitivity> -148 dBm
Horizontal Accuracy2.5m
ProtocolNMEA-0183 V2.3
Digital inputQty2
TypeSwitch contact signal (dry node) or level signal (wet node)
Range1: High level, 5~30VDC, close signal
0: low level 0~1VDC open signal
Pulse frequencyMax 100Hz
ProtectionIsolation voltage 3750Vrms
Digital outputQty2
TypeSINK output
Load voltageMax 50VDC
Load current500mA(single), 625mW
ProtectionEFT: 40A(5/50ns)
Analog inputQty4
Type0~5V,4~20mA,0~20mA
ADC Resolution16bit
ProtectionEFT: 40A(5/50ns)
Indicator lightALARMAlarm indicator light
SYSSystem running status indicator
4G4G status indicator
WiFiWiFi status indicator
DO1, DO2Digital output indicator light
DI1, DI2Digital input indicator light
SystemCPUMIPS CPU, Clock Speed 580Mhz
Storage16MB (Scalable to 32MB)
RAM128MB (Scalable to 256MB)
SoftwareNetwork ProtocolPPP, PPPoE, TCP, UDP,DHCP, ICMP, NAT,
HTTP, HTTPs, DNS, ARP, NTP, SMTP, SSH2, DDNS,SNMP etc.
VPNIpsec, OpenVPN, L2TP
FirewallDMZ, DoS defense, IP packet, Domain name and MAC address filtering, port mapping, access control
Remote ManagementSupport web remote configuration
System LogSupport
Firmware UpgradeSupport serial port local TFTP/web firmware upgrade
CertificateEMIEN 55022: 2006/A1: 2007
EMSIEC(EN)61000-4-2(ESD)
IEC(EN)61000-4-3(RS)
IEC(EN)61000-4-4(EFT)
IEC(EN)61000-4-5(Surge)
IEC(EN)61000-4-6(CS)
IEC(EN)61000-4-8
MTBF100,000 hours
OthersCE, FCC, ROHS, 3C
Working
Environment		Working temperature-40~85ºC
Storage temperature-40~105ºC
Humidity5~95%RH
OthersEnclosureMetal
SizeH145mm * L110mm * W45mm
IP levelIP30
Net weight790g
InstallationWall-amount/Rail-amount
