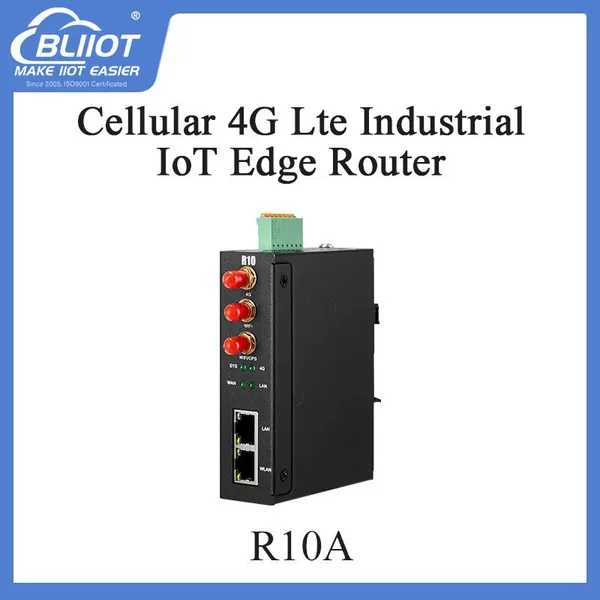

Support SSL Encryption, Protocol Conversion and Timing Control Modbus MQTT Cellular 4G Edge Router

Support SSL Encryption, Protocol Conversion and Timing Control Modbus MQTT Cellular 4G Edge Router thumbnail-1
Support SSL Encryption, Protocol Conversion and Timing Control Modbus MQTT Cellular 4G Edge Router thumbnail-2
Support SSL Encryption, Protocol Conversion and Timing Control Modbus MQTT Cellular 4G Edge Router thumbnail-3
Support SSL Encryption, Protocol Conversion and Timing Control Modbus MQTT Cellular 4G Edge Router thumbnail-4
Support SSL Encryption, Protocol Conversion and Timing Control Modbus MQTT Cellular 4G Edge Router thumbnail-5
Support SSL Encryption, Protocol Conversion and Timing Control Modbus MQTT Cellular 4G Edge Router photo-1
Support SSL Encryption, Protocol Conversion and Timing Control Modbus MQTT Cellular 4G Edge Router photo-2
Support SSL Encryption, Protocol Conversion and Timing Control Modbus MQTT Cellular 4G Edge Router photo-3
Support SSL Encryption, Protocol Conversion and Timing Control Modbus MQTT Cellular 4G Edge Router photo-4
Support SSL Encryption, Protocol Conversion and Timing Control Modbus MQTT Cellular 4G Edge Router photo-5
US$ 83 - 110 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
BLIIOT
Place of Origin:
China
Model Number:
R10A
Contact Supplier Request Quote Chat Now
Shenzhen Beilai Technology Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name BLIIOT
Place of Origin China
Model Number R10A

Product Description

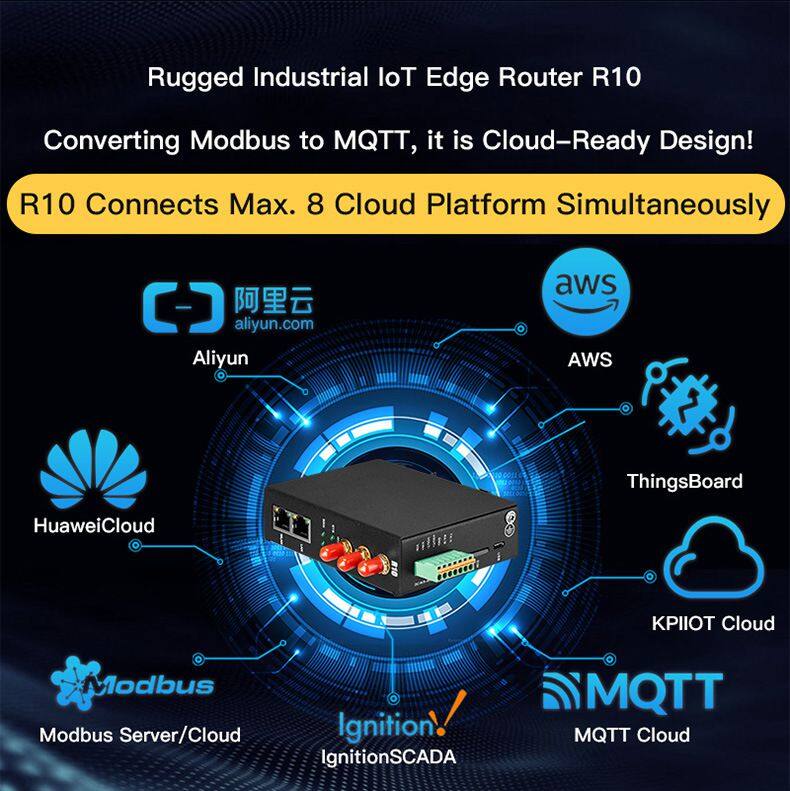

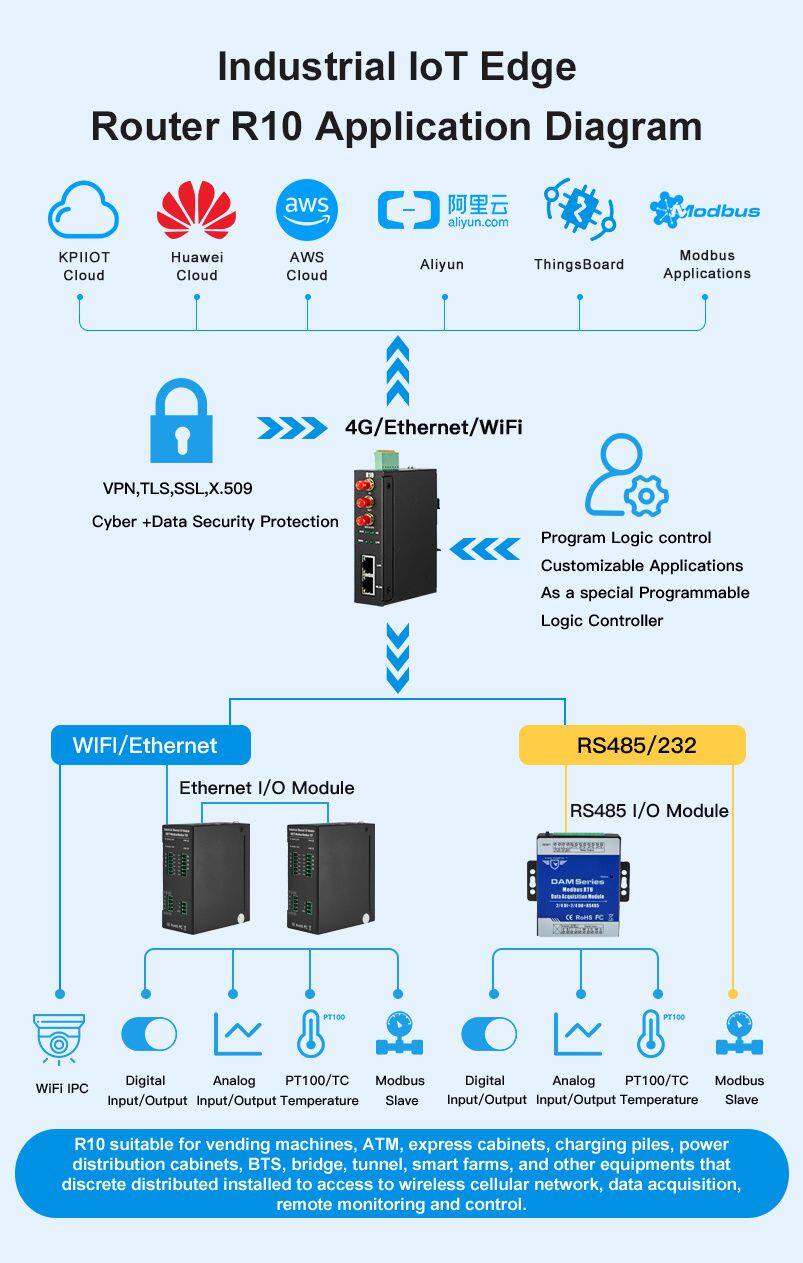

The R10 industrial router can provide wireless access network, and also can performs Modbus Master to poll meters over RS485/232 or LAN ports, then upload the data to cloud platforms under MQTT format, e.g.: AWS IoT, ThingsBoard. And the R10A industrial router can connect the remote I/O modules either by RS485/232 or Ethernet cable to monitoring data or switch on/off devices, etc.

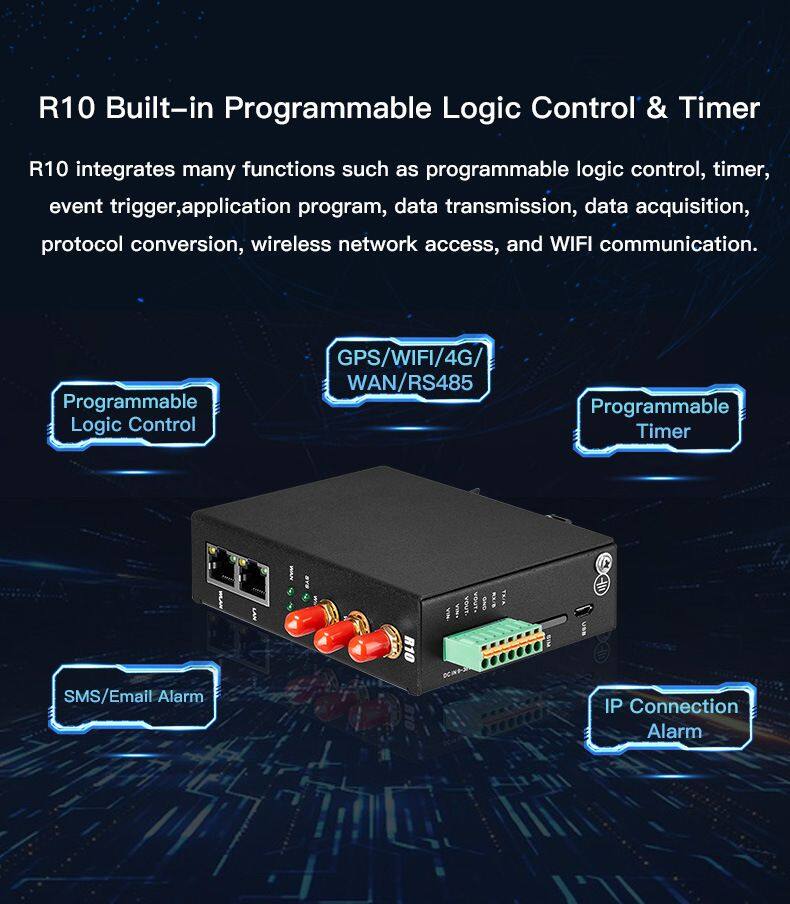

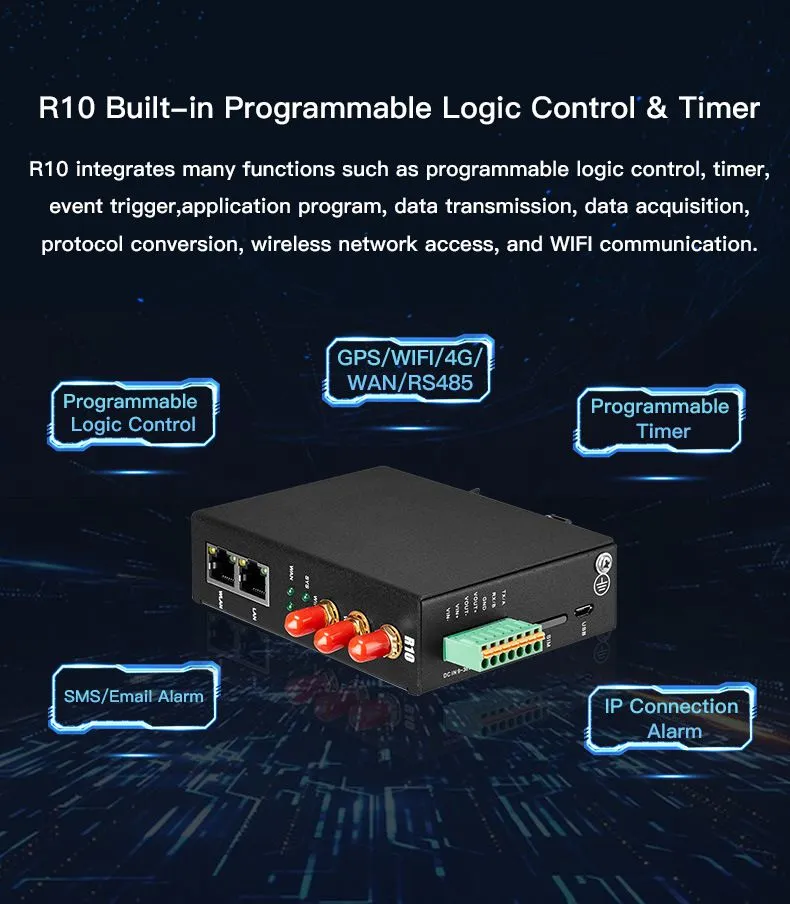

The 4G Edge router features programmable logic control, timer, event trigger, IP connection alarm functions.

R10A industrial router also can used as Modbus RTU/TCP Master to collect data, convert Modbus to MQTT protocol, Transmit Transparently (Pass-through), and directly connect to cloud platforms such as AWS, THINGSBOARD etc.

R10A industrial router also can used as Modbus RTU/TCP Master to collect data, convert Modbus to MQTT protocol, Transmit Transparently (Pass-through), and directly connect to cloud platforms such as AWS, THINGSBOARD etc.

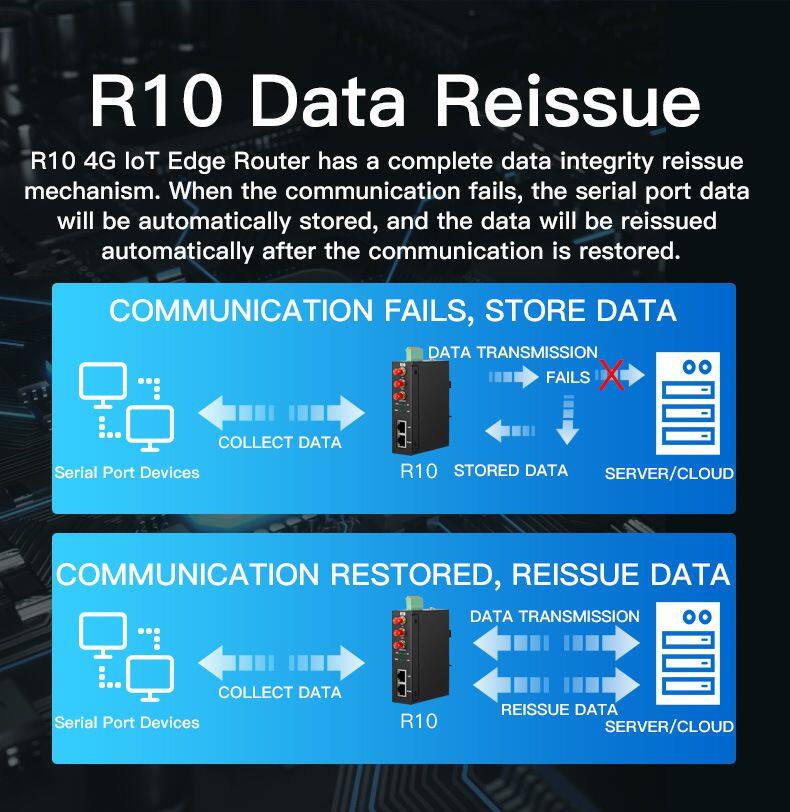

When the industrial router communication fails, the data will be automatically restored and retransmit when communication restored.

Product Parameters
Item Parameters Description
Power
Supply 		Input voltage 9~36VDC
Input current Normal: 130mA@12V. Maximum: 800mA@12V
Connection 3.5mm wiring terminal
Protection Anti-reverse connection Protection
WAN Qty 1
Interface Spec RJ45 interface, 10M/100Mbps, adaptive MDI/MDIX
Protection ESD ±30kV (contact), ±30kV (air)
EFT 40A (5/50ns)
Lightning 24A (8/20µs)
LAN
(non-POE) 		Qty 1
Interface Spec RJ45 interface, 10M/100Mbps, adaptive MDI/MDIX
Protection ESD ±30kV (contact), ±30kV (air)
EFT 40A (5/50ns)
Lightning 24A (8/20µs)
Serial Port Qty 1
Type 1 Channel RS485 or RS232
Baud rate 1200,2400,4800,9600,14400,19200,38400,57600,115200,230400
Data Bit 5,6,7,8
Parity None, Even, Odd
Stop Bit 1,2
Working mode Transparent transmission, Modbus RTU to TCP, Modbus slave, Modbus master ( R10A support but R10 can't)
Protection ESD contact: 8KV Surge: 4KV (8/20us)
ESD ±8kV (contact), ±15kV (air)
EFT 4KV, 40A (5/50ns)
WIFI Antenna Port qty 2
Antenna type SMA hole type
Protocol 802.11a/b/g/n (mixed)
Mode AP mode, client mode
Frequency 2.4G
Channel Channel 1 - 13
Security Open, WPA, WPA2
Encryption AES, TKIP, TKIPAES
Connection number 16(Max)
Speed 300Mbps(Max)
Transmit Distance Max. 20 meters in open space where there is no obstruction
SSID
Broadcast Switch 		Support
Cellular
Network 		Antenna Port Qty 1
Antenna Port Type SMA hole type
SIM Qty 1
Interface Spec Drawer interface, support 1.8V/3V SIM/UIM card (NANO)
Protection Built-in 15KV ESD protection
GPS
(optional) 		Antenna qty 1
Antenna type SMA hole type
Tracking Sensitivity > -148 dBm
Horizontal Accuracy 2.5m
Protocol NMEA-0183 V2.3
Indicator light SYS System running indicator (blinking for 2S and then off after normal operation)
4G 4G cellular operating status indicator ( when SIM registered successfully, this indicator always on )
WAN WAN status indicator
LAN LAN status indicator
System CPU MIPS CPU, main frequency 580Mhz
Storage 128Mbits SPI Flash
RAM 1024Mbits DDR2
Software Network Protocol PPP,  PPPoE, TCP, UDP, DHCP, ICMP, NAT,
HTTP, HTTPs, DNS, ARP, NTP, SMTP, SSH2, DDNS
VPN IPsec, OpenVPN, L2TP
Firewall DMZ, DoS defense, IP packet, domain name and MAC address filtering, port mapping, access control
Remote Management Supports web remote configuration
System Log Support
Firmware Update Supports serial port local TFTP and Web upgrade
Certificate EMI EN 55022: 2006/A1: 2007
EMS IEC(EN)61000-4-2(ESD)
IEC(EN)61000-4-3(RS)
IEC(EN)61000-4-4(EFT)
IEC(EN)61000-4-5(Surge)
IEC(EN)61000-4-6(CS)
IEC(EN)61000-4-8
Others CE, FCC, ROHS, 3C
Working
Environment 		Working temperature -20~+65ºC
Storage temperature -40~+85ºC
Humidity 5 ~ 95%RH (non-condensation)
Others Enclosure Metal material
Size Height 110mm * Length 83mm * Width 30mm
IP level IP30
Net weight 300g
Installation Wall mounted, DIN rail
