Advanced Industrial 4G Router R10A With Modbus Master/Slave/MQTT for Remote Sensing Survey

Shenzhen Beilai Technology Co., Ltd.
Advanced Industrial 4G Router R10A With Modbus Master/Slave/MQTT for Remote Sensing Survey thumbnail-1
Advanced Industrial 4G Router R10A With Modbus Master/Slave/MQTT for Remote Sensing Survey thumbnail-2
Advanced Industrial 4G Router R10A With Modbus Master/Slave/MQTT for Remote Sensing Survey thumbnail-3
Advanced Industrial 4G Router R10A With Modbus Master/Slave/MQTT for Remote Sensing Survey thumbnail-4
Advanced Industrial 4G Router R10A With Modbus Master/Slave/MQTT for Remote Sensing Survey thumbnail-5
Advanced Industrial 4G Router R10A With Modbus Master/Slave/MQTT for Remote Sensing Survey photo-1
Advanced Industrial 4G Router R10A With Modbus Master/Slave/MQTT for Remote Sensing Survey photo-2
Advanced Industrial 4G Router R10A With Modbus Master/Slave/MQTT for Remote Sensing Survey photo-3
Advanced Industrial 4G Router R10A With Modbus Master/Slave/MQTT for Remote Sensing Survey photo-4
Advanced Industrial 4G Router R10A With Modbus Master/Slave/MQTT for Remote Sensing Survey photo-5
US$ 93.6 - 131.05 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
BLIIOT
Place of Origin:
China
Model Number:
R10A
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name BLIIOT
Place of Origin China
Model Number R10A

Product Description

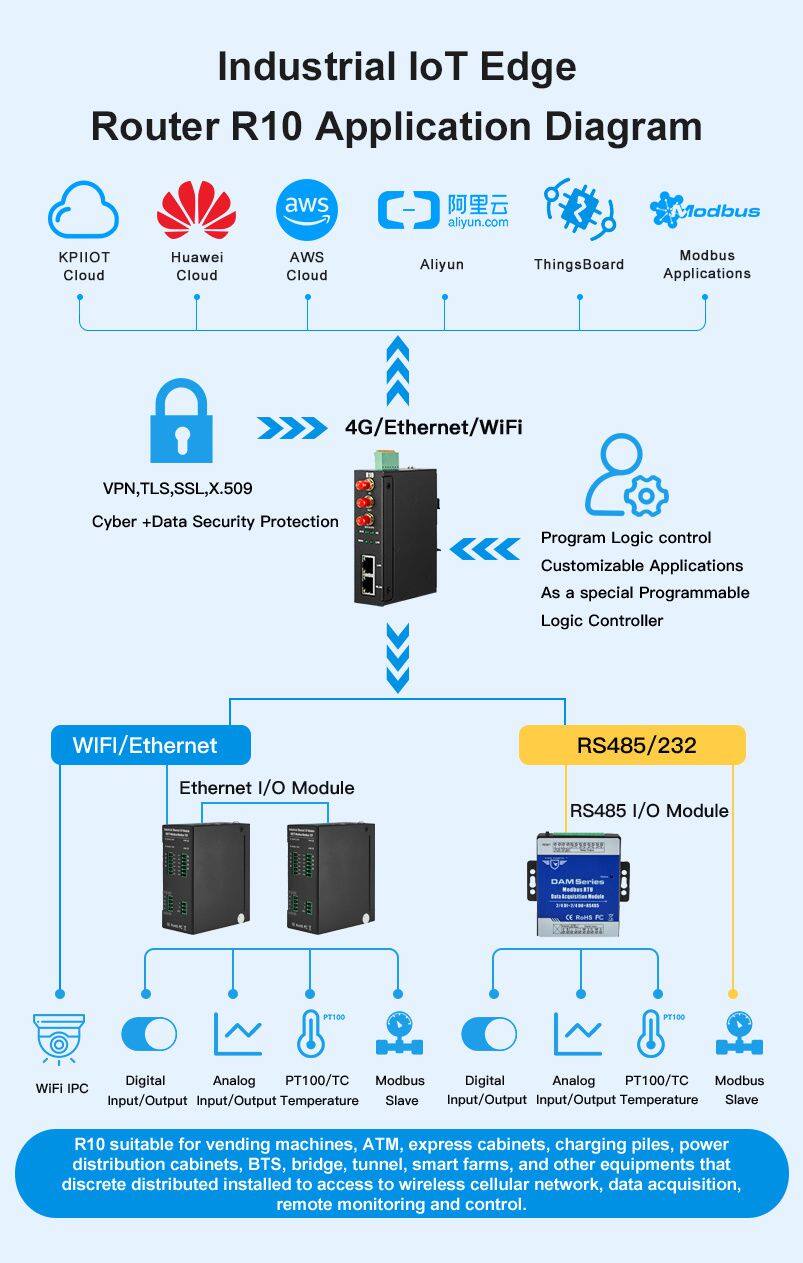

The R10 industrial router can provide wireless access network, and also can performs Modbus Master to poll meters over RS485/232 or LAN ports, then upload the data to cloud platforms under MQTT format, e.g.: AWS IoT, ThingsBoard. And the R10A industrial router can connect the remote I/O modules either by RS485/232 or Ethernet cable to monitoring data or switch on/off devices, etc.

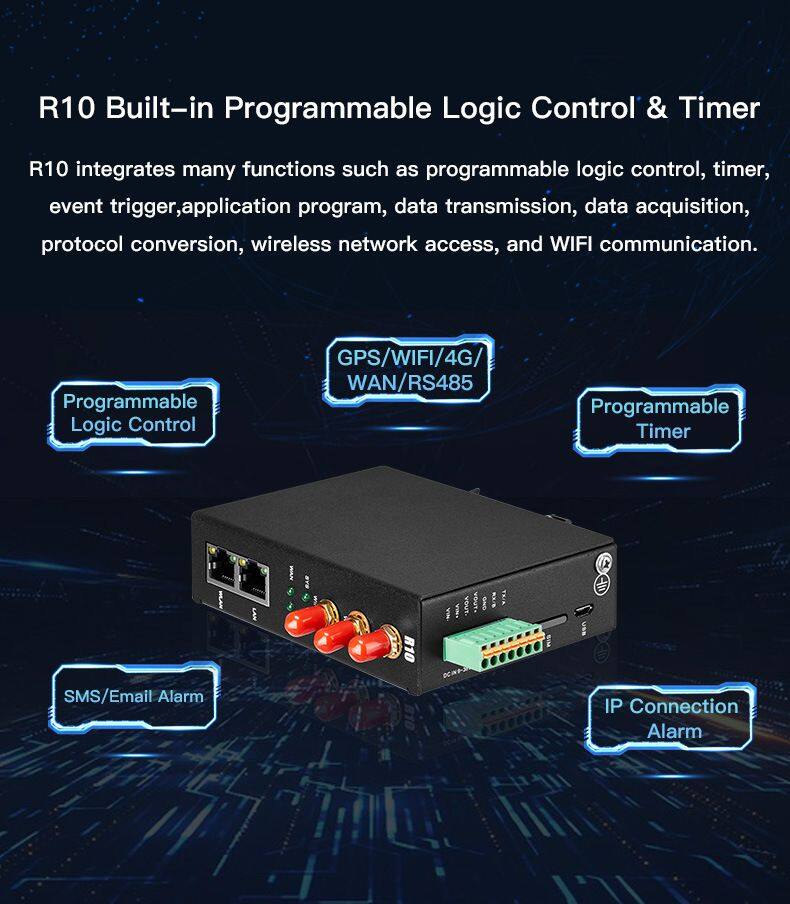

The 4G Edge router features programmable logic control, timer, event trigger, IP connection alarm functions.

R10A industrial router also can used as Modbus RTU/TCP Master to collect data, convert Modbus to MQTT protocol, Transmit Transparently (Pass-through), and directly connect to cloud platforms such as AWS, THINGSBOARD etc.

R10A industrial router also can used as Modbus RTU/TCP Master to collect data, convert Modbus to MQTT protocol, Transmit Transparently (Pass-through), and directly connect to cloud platforms such as AWS, THINGSBOARD etc.

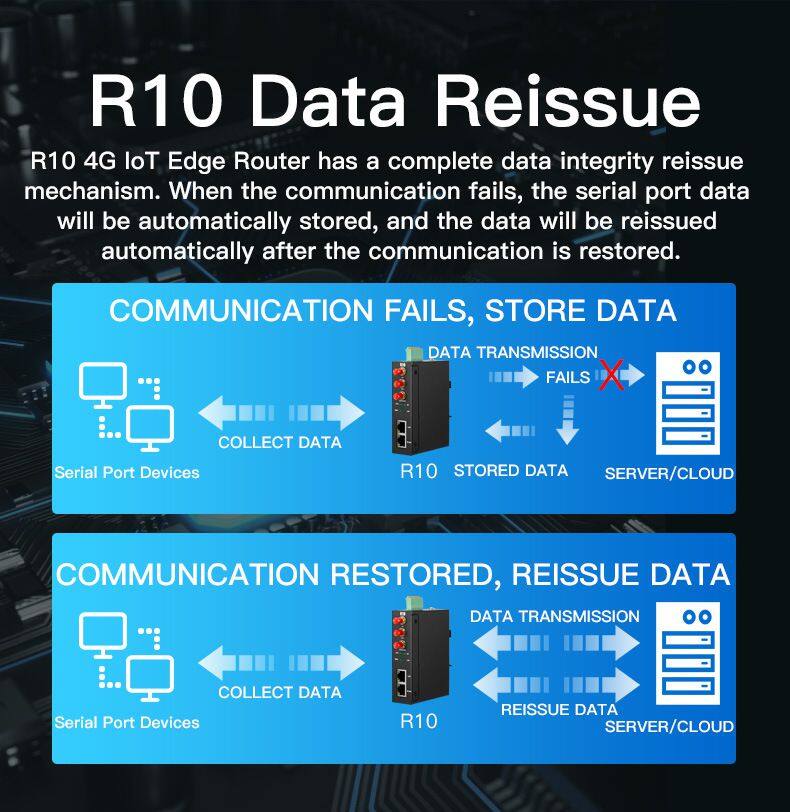

When the industrial router communication fails, the data will be automatically restored and retransmit when communication restored.

Product Parameters
ItemParametersDescription
Power
Supply		Input voltage9~36VDC
Input currentNormal: 130mA@12V. Maximum: 800mA@12V
Connection3.5mm wiring terminal
ProtectionAnti-reverse connection Protection
WANQty1
Interface SpecRJ45 interface, 10M/100Mbps, adaptive MDI/MDIX
ProtectionESD ±30kV (contact), ±30kV (air)
EFT 40A (5/50ns)
Lightning 24A (8/20µs)
LAN
(non-POE)		Qty1
Interface SpecRJ45 interface, 10M/100Mbps, adaptive MDI/MDIX
ProtectionESD ±30kV (contact), ±30kV (air)
EFT 40A (5/50ns)
Lightning 24A (8/20µs)
Serial PortQty1
Type1 Channel RS485 or RS232
Baud rate1200,2400,4800,9600,14400,19200,38400,57600,115200,230400
Data Bit5,6,7,8
ParityNone, Even, Odd
Stop Bit1,2
Working modeTransparent transmission, Modbus RTU to TCP, Modbus slave, Modbus master ( R10A support but R10 can't)
ProtectionESD contact: 8KV Surge: 4KV (8/20us)
ESD ±8kV (contact), ±15kV (air)
EFT 4KV, 40A (5/50ns)
WIFIAntenna Port qty2
Antenna typeSMA hole type
Protocol802.11a/b/g/n (mixed)
ModeAP mode, client mode
Frequency2.4G
ChannelChannel 1 - 13
SecurityOpen, WPA, WPA2
EncryptionAES, TKIP, TKIPAES
Connection number16(Max)
Speed300Mbps(Max)
Transmit DistanceMax. 20 meters in open space where there is no obstruction
SSID
Broadcast Switch		Support
Cellular
Network		Antenna Port Qty1
Antenna Port TypeSMA hole type
SIMQty1
Interface SpecDrawer interface, support 1.8V/3V SIM/UIM card (NANO)
ProtectionBuilt-in 15KV ESD protection
GPS
(optional)		Antenna qty1
Antenna typeSMA hole type
Tracking Sensitivity> -148 dBm
Horizontal Accuracy2.5m
ProtocolNMEA-0183 V2.3

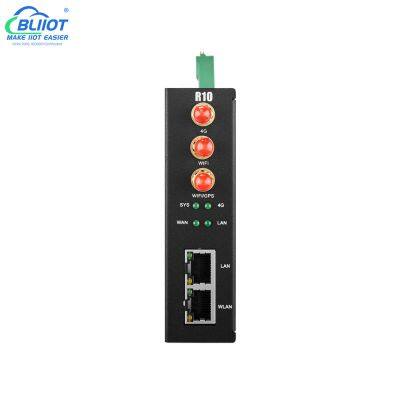

Indicator lightSYSSystem running indicator (blinking for 2S and then off after normal operation)
4G4G cellular operating status indicator ( when SIM registered successfully, this indicator always on )
WANWAN status indicator
LANLAN status indicator
SystemCPUMIPS CPU, main frequency 580Mhz
Storage128Mbits SPI Flash
RAM1024Mbits DDR2
SoftwareNetwork ProtocolPPP,  PPPoE, TCP, UDP, DHCP, ICMP, NAT,
HTTP, HTTPs, DNS, ARP, NTP, SMTP, SSH2, DDNS
VPNIPsec, OpenVPN, L2TP
FirewallDMZ, DoS defense, IP packet, domain name and MAC address filtering, port mapping, access control
Remote ManagementSupports web remote configuration
System LogSupport
Firmware Update Supports serial port local TFTP and Web upgrade
CertificateEMIEN 55022: 2006/A1: 2007
EMSIEC(EN)61000-4-2(ESD)
IEC(EN)61000-4-3(RS)
IEC(EN)61000-4-4(EFT)
IEC(EN)61000-4-5(Surge)
IEC(EN)61000-4-6(CS)
IEC(EN)61000-4-8
OthersCE, FCC, ROHS, 3C
Working
Environment		Working temperature-20~+65ºC
Storage temperature-40~+85ºC
Humidity5 ~ 95%RH (non-condensation)
OthersEnclosureMetal material
SizeHeight 110mm * Length 83mm * Width 30mm
IP levelIP30
Net weight300g

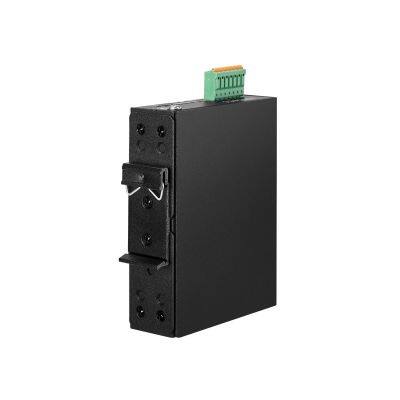

InstallationWall mounted, DIN rail
