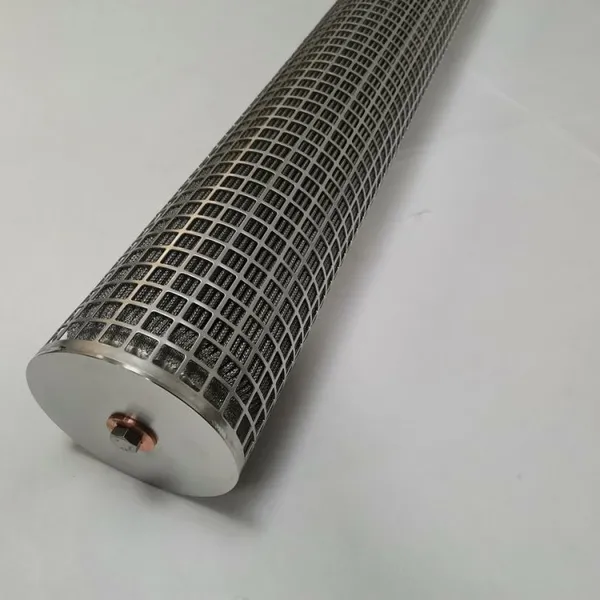

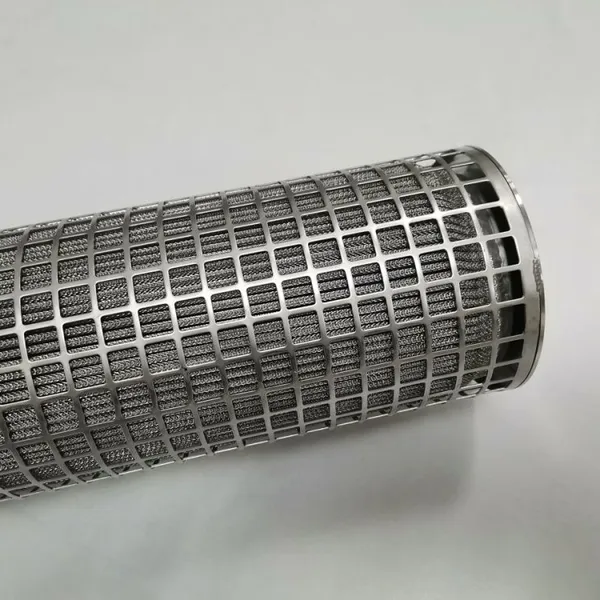

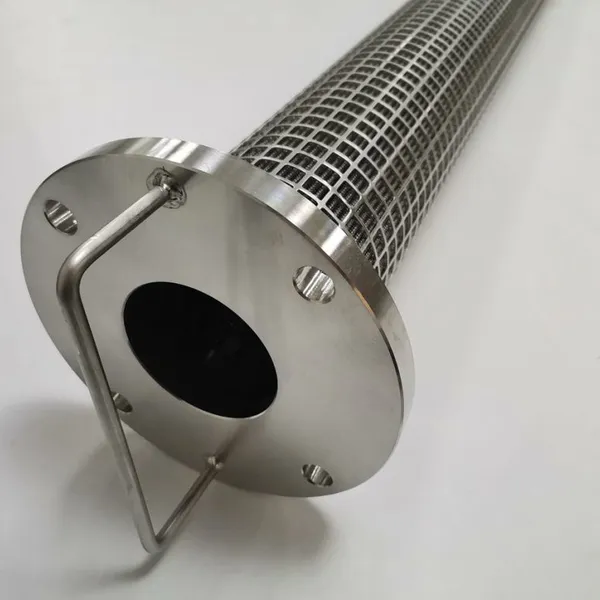

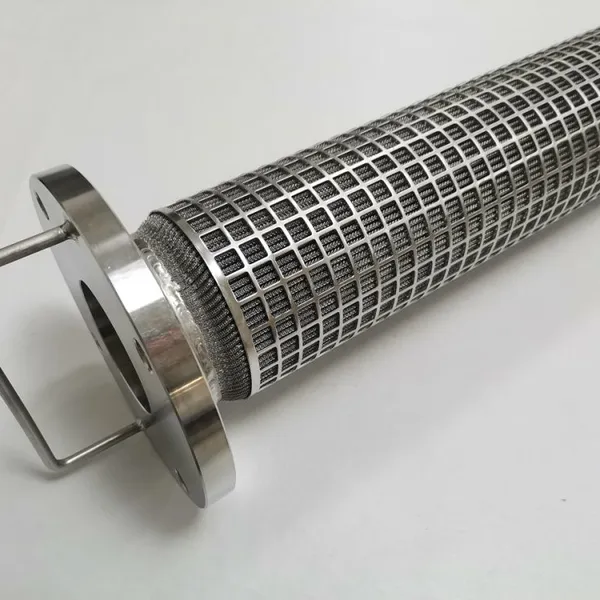

Help CenterStainless Steel Mesh Filter Cartridges Waste Water Filtration RT-130
Related Products
-
226 Connection Stainless Steel Mesh Folded Welded Filter Element RT-043US$ 16 - 80MOQ: 1 Piece -
High Temperature, High Pressure, High Viscosity Stainless Steel Sintered Mesh Depth Filter Element RT-044US$ 28 - 130MOQ: 1 Piece
-
External Thread Stainless Steel Sintered Felt Polyester Melt Filter Element RT-045US$ 14 - 140MOQ: 1 Piece
-
Petrochemical High Temperature, High Viscosity, High Pressure Liquid Metal Filter Element RT-043US$ 14 - 140MOQ: 1 Piece
-
Stainless Steel Filter Element for Pressure Vessel High Viscosity Corrosive Chemical Liquid Filtration RT-042US$ 14 - 140MOQ: 1 Piece
Performance and use:
Applicable to high temperature, high pressure, high viscosity polymer filtration, filter out solid particles in the medium, and ensure the cleanliness of the medium.
Made of 100% stainless steel material, can be cleaned and used repeatedly.
The filter element made of imported stainless steel fiber sintered felt has good air permeability, large dirt holding capacity and long service life.
The filter element made of stainless steel woven mesh has uniform pore size, high strength, good processability and easy cleaning.
The corrugated filter element is suitable for chemical fiber and textile systems, and the disc filter element is suitable for plastic industries such as film and packaging materials.
| Breathability | Porosity | Pollution holding capacity | thickness | Breaking strength | |||||
| L/(min.dm2) | (%) | (mg/cm2) | (mm) | (MPa) | |||||
| Basic Value | Deviation | Basic Value | Deviation | Basic Value | Deviation | Basic Value | Deviation | Basic Value | Deviation |
| 47 | 10% | 75 | 10% | 5 | 10% | 0.3 | 10% | 32 | 10% |
| 63 | 76 | 6.5 | 0.3 | 36 | |||||
| 105 | 75 | 7.8 | 0.37 | 32 | |||||
| 205 | 79 | 8.6 | 0.4 | 23 | |||||
| 280 | 80 | 15.5 | 0.48 | 23 | |||||
| 355 | 80 | 19 | 0.62 | 20 | |||||
| 520 | 80 | 26 | 0.63 | 23 | |||||
| 670 | 78 | 29 | 0.68 | 26 | |||||
| 1300 | 85 | 36 | 0.62 | 28 | |||||
Technical parameters:
Working pressure: ≤31.7Mpa
Working temperature: ≤300℃
Medium viscosity: ≤260Pa▪s
Allowable pressure difference: ≤10Mpa
