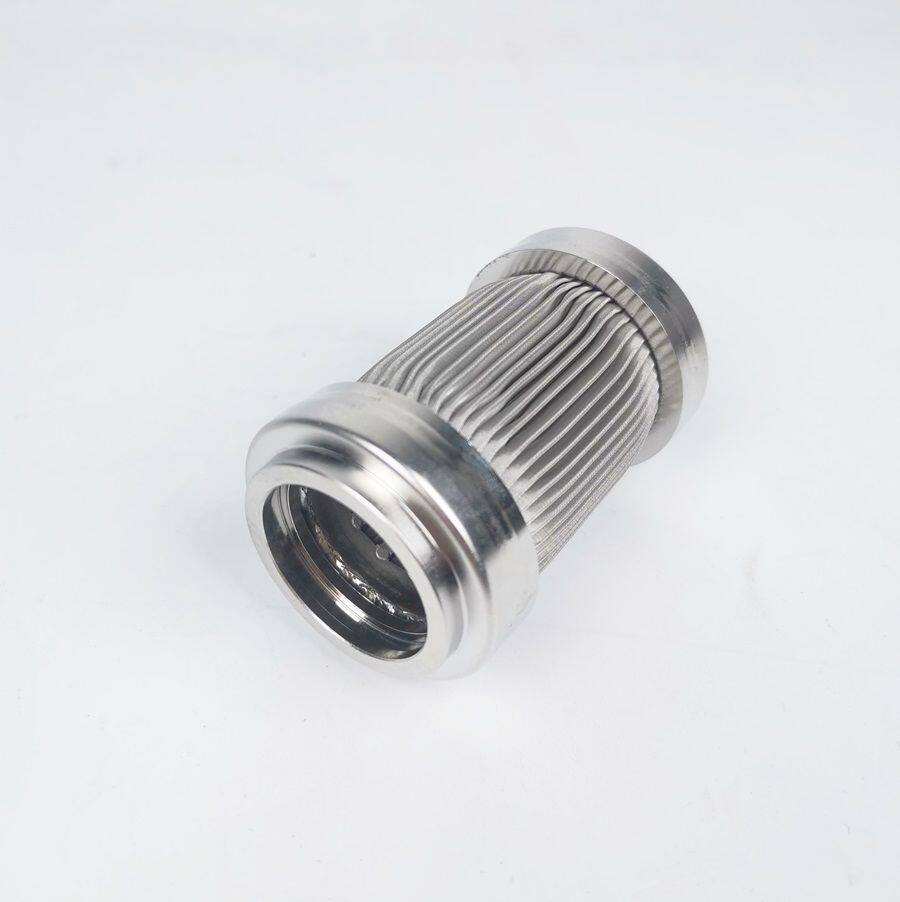

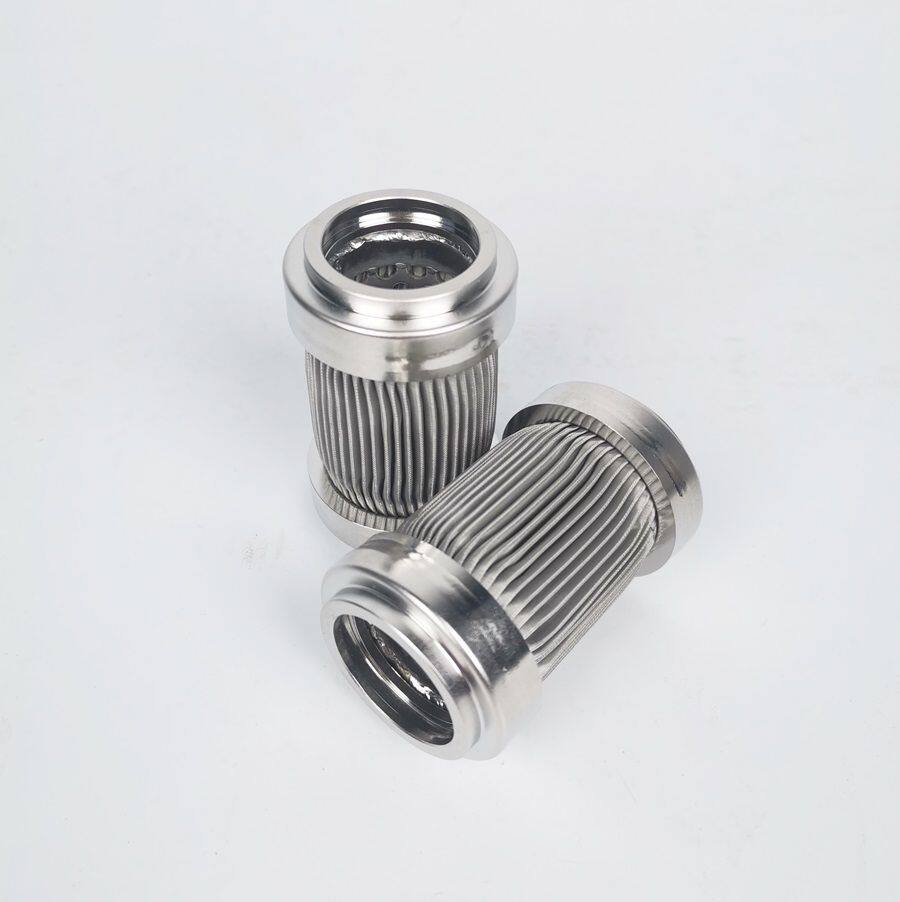

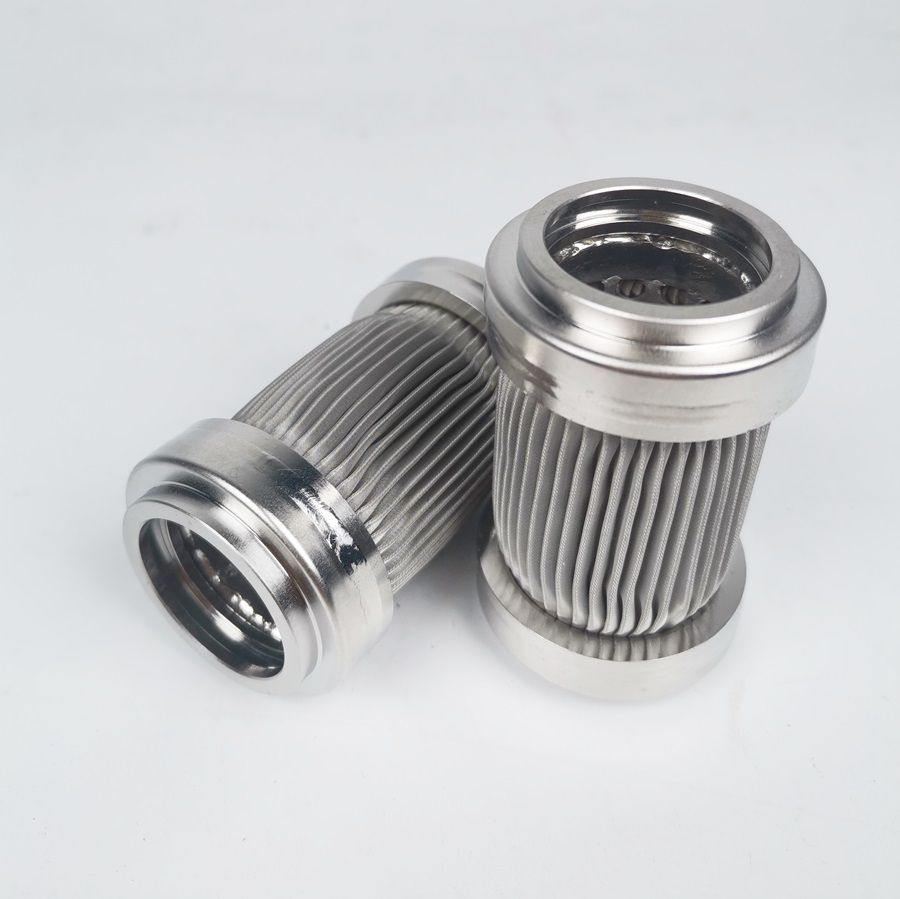

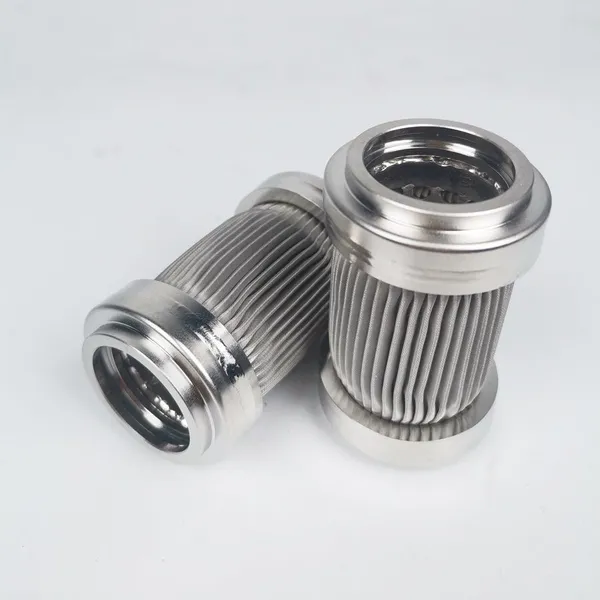

Stainless Steel Filter Element for Pressure Vessel High Viscosity Corrosive Chemical Liquid Filtration RT-042
US$ 14 - 140
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Deya
Place of Origin:
China
Model Number:
RT-042
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
25 days
Related Products
-
Petrochemical High Temperature, High Viscosity, High Pressure Liquid Metal Filter Element RT-041DUS$ 14 - 140MOQ: 1 Piece -
316/316L Stainless Steel Sintered Filter Candles for Petrochemical Filtration RT-041CUS$ 14 - 140MOQ: 1 Piece
-
304/316L Stainless Steel Sintered Metal Filter Cartridge Porous Metal Filter Element RT-040US$ 14 - 140MOQ: 1 Piece
-
1-100 Micro Accuracy Sintered Metallic Mesh Filter Cartridge RT-039US$ 14 - 140MOQ: 1 Piece
-
1micron 5um Ss316 Woven Wire Cloth Folding Metal Filter Candle for PSF Continuous Melt Filter RT-038-110US$ 14 - 140MOQ: 1 Piece
Brand Name
Deya
Place of Origin
China
Model Number
RT-042
After-sales Service Provided
Engineers available to service machinery overseas
Performance and use:
Applicable to high temperature, high pressure, high viscosity polymer filtration, filter out solid particles in the medium, and ensure the cleanliness of the medium.
Made of 100% stainless steel material, can be cleaned and used repeatedly.
The filter element made of imported stainless steel fiber sintered felt has good air permeability, large dirt holding capacity and long service life.
The filter element made of stainless steel woven mesh has uniform pore size, high strength, good processability and easy cleaning.
The corrugated filter element is suitable for chemical fiber and textile systems, and the disc filter element is suitable for plastic industries such as film and packaging materials.
| Difference | Sintered mesh filter element | Sintered felt filter element |
| Material | Cleaning cycle | Metal fibers of different wire diameters |
| Process | Produced at 1260℃ | Produced at 1180°C |
| Structure | Multi-layer wire mesh composite with uniform filter aperture | With multiple gradient pore size layers, it has a greater dirt holding capacity |
| Blind hole rate | Basically no blind holes | More or less blind holes |
| Filter accuracy | 1-300um | 2-60um |
| Cleaning cycle | Both are materials that can be reused after cleaning, but sintered felt has a larger dirt holding capacity and a longer cleaning cycle. | |
Technical parameters:
Working pressure: ≤31.7Mpa
Working temperature: ≤300℃
Medium viscosity: ≤260Pa▪s
Allowable pressure difference: ≤10Mpa
| Breathability | Porosity | Pollution holding capacity | thickness | Breaking strength | |||||
| L/(min.dm2) | (%) | (mg/cm2) | (mm) | (MPa) | |||||
| Basic Value | Deviation | Basic Value | Deviation | Basic Value | Deviation | Basic Value | Deviation | Basic Value | Deviation |
| 47 | 10% | 75 | 10% | 5 | 10% | 0.3 | 10% | 32 | 10% |
| 63 | 76 | 6.5 | 0.3 | 36 | |||||
| 105 | 75 | 7.8 | 0.37 | 32 | |||||
| 205 | 79 | 8.6 | 0.4 | 23 | |||||
| 280 | 80 | 15.5 | 0.48 | 23 | |||||
| 355 | 80 | 19 | 0.62 | 20 | |||||
| 520 | 80 | 26 | 0.63 | 23 | |||||
| 670 | 78 | 29 | 0.68 | 26 | |||||
| 1300 | 85 | 36 | 0.62 | 28 | |||||
