Brand Name BLIIoT
Place of Origin China
Model Number BL120

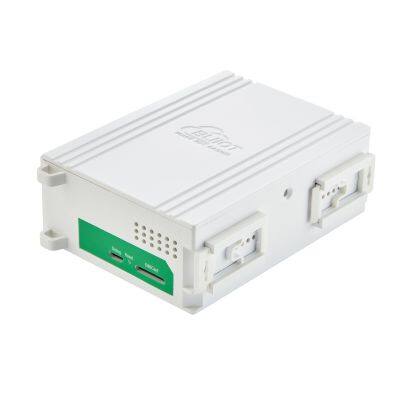

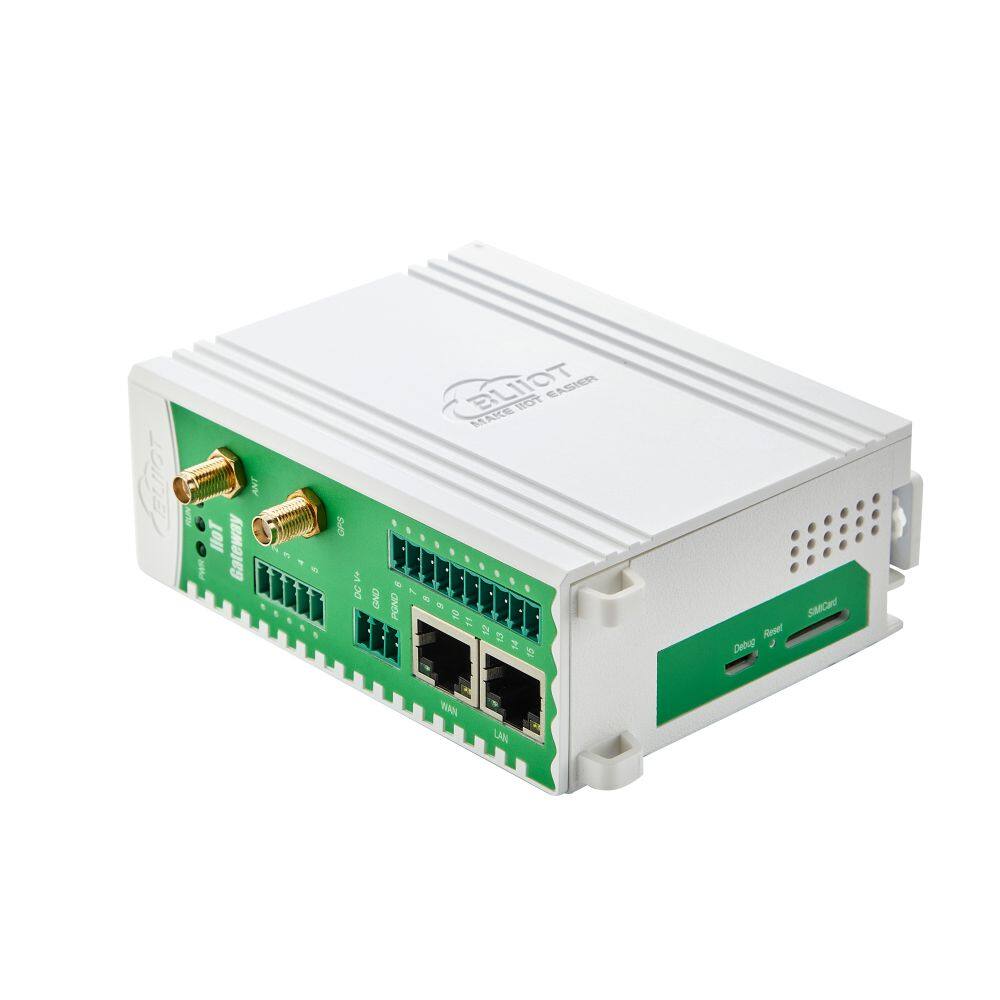

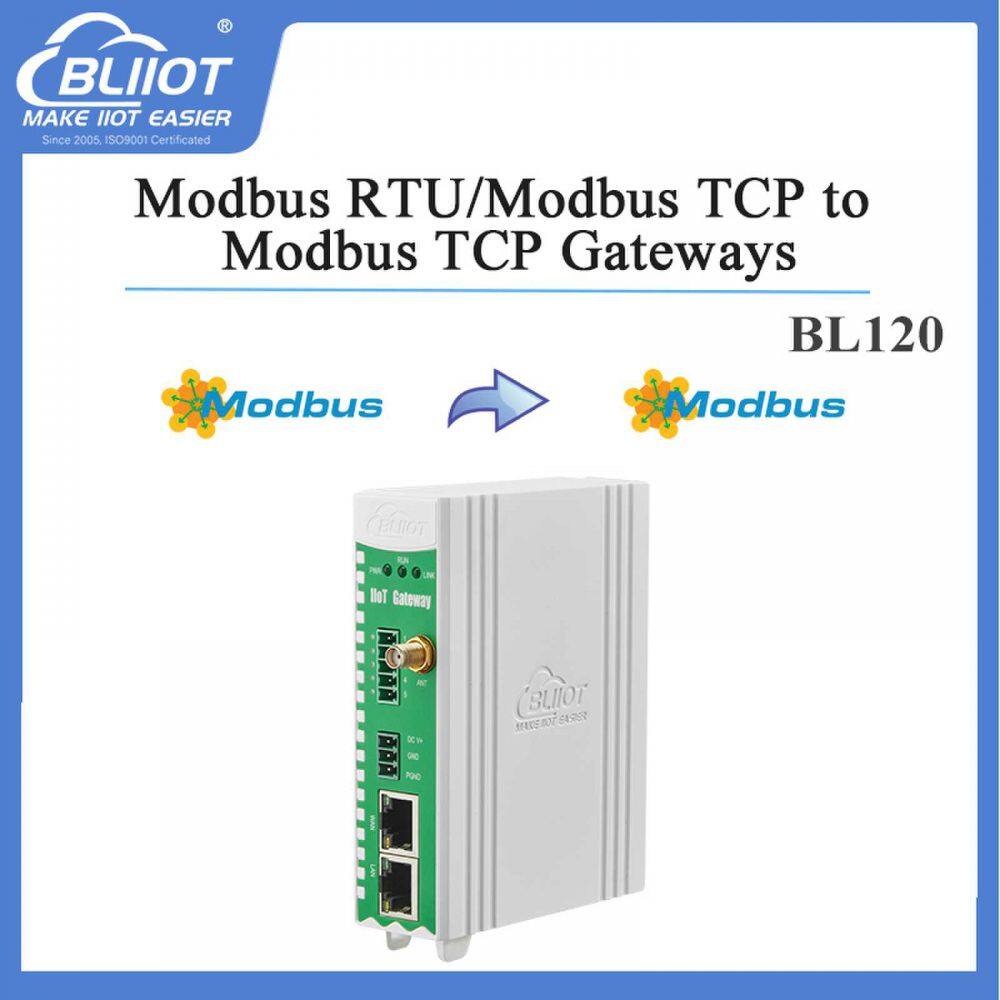

Modbus RTU/Modbus TCP to Modbus TCP Gateways BL120

Item No.: BL120
BLIIoT BL120 gateway supports Modbus RTU/Modbus TCP to Modbus TCP industrial protocols conversion.

  • Basic Version: 2 Serial Ports: BL120

  • P Version: 6 Serial Ports: BL120P

Downlink Supports Modbus RTU Master, Modbus TCP Master
Uplink Supports Modbus TCP
Supports SNMP V1/V2
Supports transparent transmission
RJ45 Ethernet ports
RS-485/232 serial ports
Supports OpenVPN
Supports 4G communication
Supports routing functions and cascading switch
Supports remote configuration and firmware upgrade

All BL12x series gateways support 4G/WIFI/GPS/, and the number of serial ports can be selected from 2 serial series or 6 serial ports. The selection table is shown in Table 1 below.
Model WAN LAN COM(Default RS485; Optional RS232) WiFi 4G GPS
BL120 1 1 2 × × ×
BL120L 1 1 2 × √ ×
BL120LG 1 1 2 × √ √
BL120W 1 1 2 √ × ×
BL120P 1 1 6 × × ×
BL120PL 1 1 6 × √ ×
BL120PLG 1 1 6 × √ √
BL120PW 1 1 6 √ × ×

For Modbus  gateways, bliiot offers other downstream protocol to Modbus gateway options as listed in Table 2 below.


Modbus Gateway Model Downlink Protocol
Uplink Protocol: Modbus RTU,Modbus TCP BL200 Modbus RTU,Modbus ASCII,Modbus TCP
BL120PN Profinet, Profibus DP
BL120EC EtherCAT
BL120EP Ethernet/IP
BL120CK CC-LINK,Modbus
BL120CN CANOPEN JAE1939 DeviceNet
BL120PK Power Link
BL120PL Siemens, Mitsubishi, OMRON, Allen-Bradley,PLC Protocols
BL120NC Various CNC protocols
BL120AC Various air conditioning protocols
BL120DT DLT645,IEC104
BL120EN IEC61850
BL120DN DNP3.0
BL120BN BACnet MSTP,BACnet/IP
BL120LK Lonworks
BL120KN KNX
BL120ML Modbus RTU,DLT645,IEC104,BACnet,Lonworks,IEC61850
Packaging & Shipping

Box ,Shipping by air, land ,sea


Company Introduction

Founded in 2005, Beilai Technology is an innovative manufacturer dedicated to the development and manufacturing of loT devices.
Beilai offer partners with a wide range of hardware including Industrial Ethernet I/O Module, Distributed I/O System, Remote I/O Module, Industrial IoT Gateway, Cellular IoT M2M RTU, Embedded ARM Computer, Industrial 4G Edge Router, X86 Embedded Industrial Computer, Remote Battery Measurement System, Cellular SMS Controller, Network Fault Monitoring Alarm, Cellular Gate Opener, OEM and ODM services.

Product Tags: Rs485 to ethernet , remote plc controller , 4G ethernet , Profinet Profibus DP , rs232 to rs485 , Protocol Translators , IoT Gateway , Protocol Gateway , Industrial IoT Gateway
