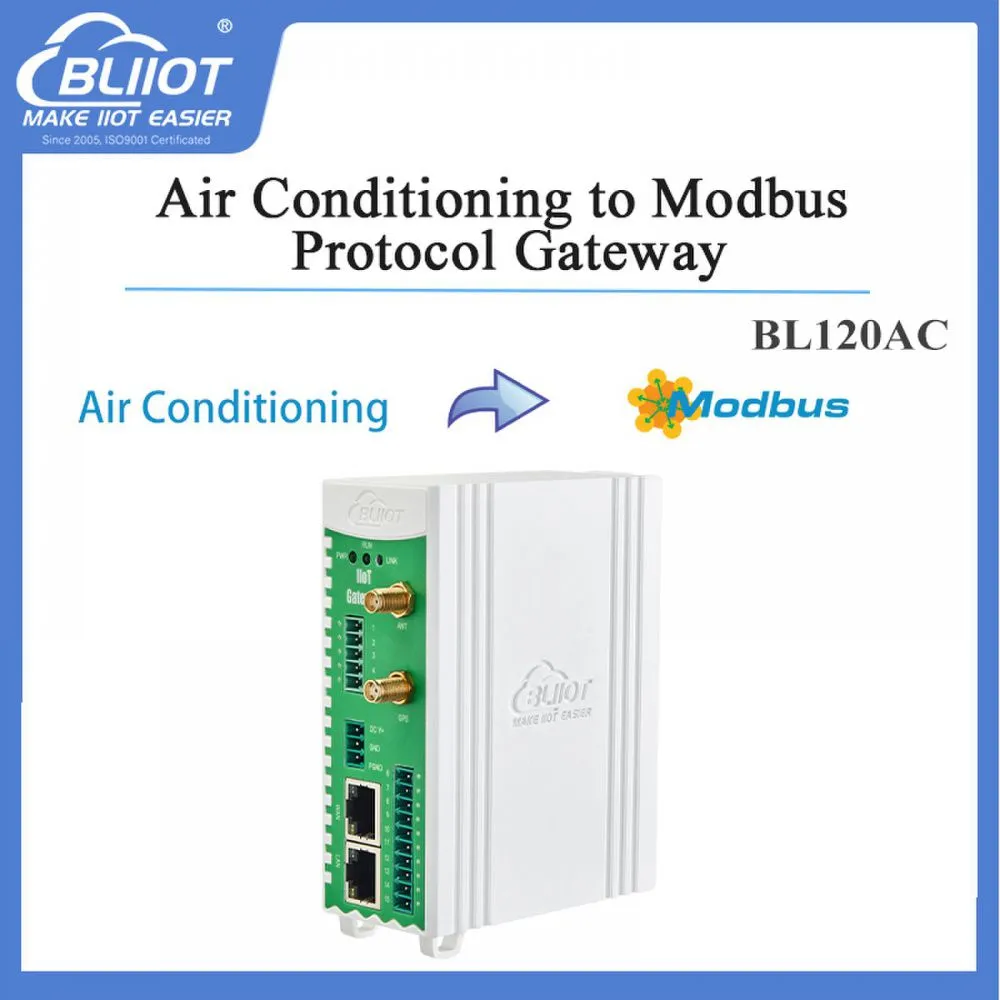

Air Conditioning to Modbus Protocol Gateway BL120AC
Basic Version: 2 Serial Ports: BL120AC
P Version: 6 Serial Ports: BL120ACP

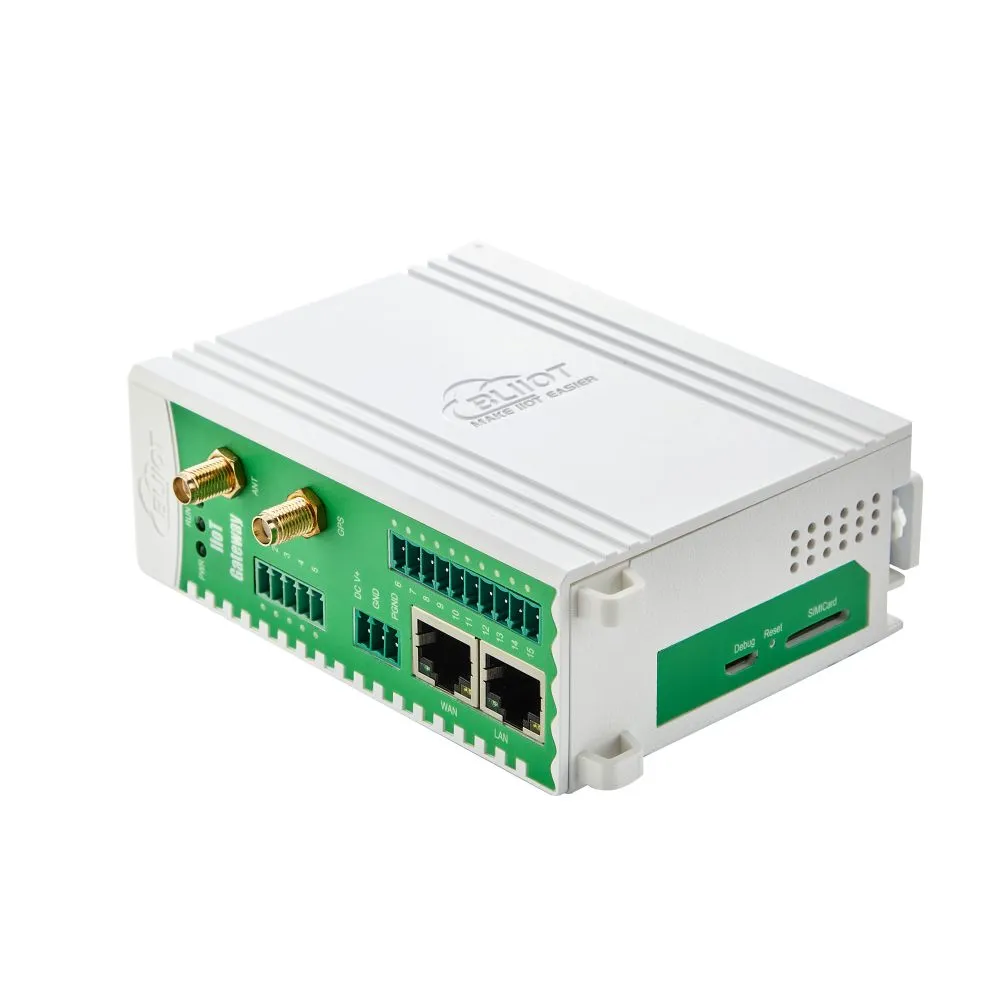

The BL120AC is a protocol gateway with Ethernet ports and RS-232/485 serial ports. Beilai BL120AC protocol converter supports Air Conditioning Protocols converting to Modbus RTU, Modbus TCP protocols. This protocol gateway is used for industrial air conditioning and control system communication.
⚪Downlink Supports air conditioning protocols
⚪Uplink Supports Modbus RTU, Modbus TCP
⚪Supports SNMP V1/V2
⚪Supports transparent transmission
⚪RJ45 Ethernet ports
⚪RS-485/232 serial ports
⚪Supports OpenVPN
⚪Supports WiFi, routing functions and cascading switch
⚪Supports remote configuration and firmware upgrade
All BL12x series gateways support 4G/WIFI/GPS/, and the number of serial ports can be selected from 2 serial series or 6 serial ports. The selection table is shown in Table 1 below.
| Model | WAN | LAN | COM(RS485/RS232) | WiFi | 4G | GPS |
| BL120AC | 1 | 1 | 2 | × | × | × |
| BL120ACL | 1 | 1 | 2 | × | √ | × |
| BL120ACLG | 1 | 1 | 2 | × | √ | √ |
| BL120ACW | 1 | 1 | 2 | √ | × | × |
| BL120ACP | 1 | 1 | 6 | × | × | × |
| BL120ACPL | 1 | 1 | 6 | × | √ | × |
| BL120ACPLG | 1 | 1 | 6 | × | √ | √ |
| BL120ACPW | 1 | 1 | 6 | √ | × | × |
Parameter |
Description |
|
System |
Processor |
Clock speed 300Mhz |
Storage |
128MB |
|
Flash memory |
64MB |
|
Power Supply |
Input voltage |
DC 9~36V |
Power consumption |
Normal: 85mA@12V, MAX: 117mA@12V |
|
Wiring |
Anti-reverse connection |
|
Ethernet Ports |
Specification |
2CH RJ45, 10/100Mbps, adaptive MDI/MDIX |
Protection |
ESD: ±6kV(Contact), ±8kV(Air) EFT: 1kV, 5kHz |
|
Serial Ports |
QTY |
2CH RS485 or RS232 |
Baud Rate |
2400bps-115200bps |
|
Data Bit |
7, 8 |
|
Parity Bit |
None, Even, Odd |
|
Stop Bit |
1, 2 |
|
Protection |
ESD: ±6kV(Contact), ±8kV(Air) EFT: 1kV, 5kHz |
|
USB Ports |
QTY |
1CH program downloading, 1CH program debugging |
Specification |
Micro USB OTG |
|
Protection |
Over Current Protection |
|
WiFi(Optional) |
Antenna QTY |
1 |
Antenna type |
SMA |
|
Protocol |
802.11a/b/g/n(mixed) |
|
Mode |
Client mode |
|
Signal path |
2.4G Channel 1 - 13, 5G Channel 36 - 165 |
|
Security |
Open, WPA, WPA2 |
|
Encryption |
AES, TKIP, TKIPAES |
|
Speed |
150Mbps(Max) |
|
Transmission distance |
Outdoor open area, up to 20 meters |
|
SSID |
Support |
|
Indicator |
PWR |
Always on when device powered on Off when device lose power |
RUN |
Flickering when system running Off when system shutdown |
|
LINK |
Flickering when Ethernet communication; Always on when WiFi communication, OFF when Ethernet, WiFi are all disconnected. |
|
Software |
Internet Protocol |
IPV4, TCP/UDP, DHCP, DNS |
IP Retrieving |
Static IP/DHCP |
|
Transmission |
Support Transparent Transmission |
|
DNS |
Support Domain Name Resolution |
|
Configuration |
PC configuration software, support WIN XP, WIN 7, WIN 8 and WIN 10 |
|
Internet Cache |
Transmitting: 8Kbyte; Receiving: 8Kbyte |
|
Login Package |
Support custom login package |
|
Heartbeat Package |
Support custom heartbeat package |
|
Safety Certification |
MTBF |
≥100,000 hours |
EMC |
EN 55022: 2006/A1: 2007 (CE &RE) Class B |
|
IEC 61000-4-2 (ESD) Level 3 |
||
IEC 61000-4-4 (EFT) Level 3 |
||
IEC 61000-4-5 (Surge)Level 3 |
||
Others |
CE, RoHS, FCC |
|
Environment |
Working |
-40~55℃, 5~95% RH |
Storage |
-40~70℃, 5~95% RH |
|
Others |
Shell |
Plastic |
Dimension |
30mm×83mm×110mm(LxWxH) |
|
IP Grade |
IP30 |
|
Net Weight |
133g |
|
Installation |
DIN-Rail Mounting, Wall-Mounting |
Box ,Shipping by air, land ,sea
Founded in 2005, Beilai Technology is an innovative manufacturer dedicated to the development and manufacturing of loT devices.
Beilai offer partners with a wide range of hardware including Industrial Ethernet I/O Module, Distributed I/O System, Remote I/O Module, Industrial IoT Gateway, Cellular IoT M2M RTU, Embedded ARM Computer, Industrial 4G Edge Router, X86 Embedded Industrial Computer, Remote Battery Measurement System, Cellular SMS Controller, Network Fault Monitoring Alarm, Cellular Gate Opener, OEM and ODM services.
