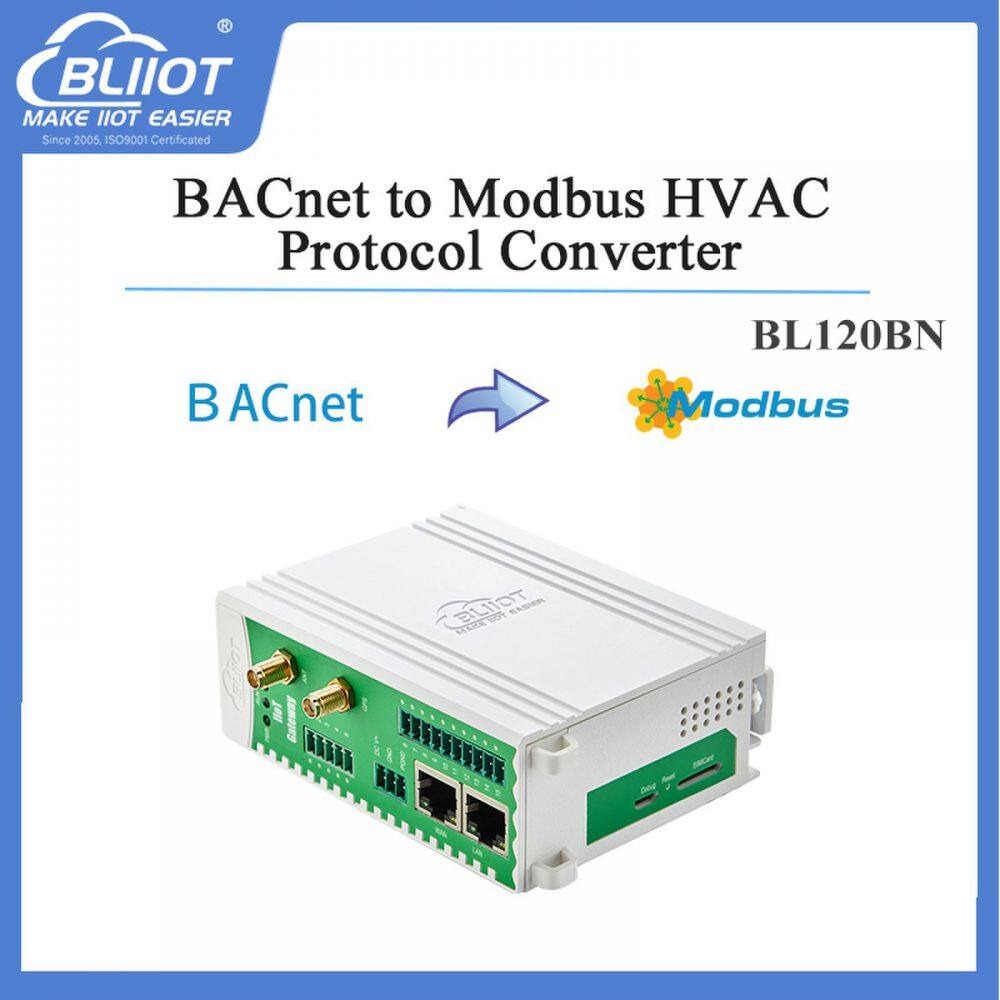

BACnet to Modbus HVAC Protocol Converter BL120BN
Basic Version: 2 Serial Ports: BL120BN
P Version: 6 Serial Ports: BL120BNP
BL120BN HVAC BACnet protocol converter is designed to transmit communications from BACnet devices to Modbus devices for building automation.
A typical scenario in industrial applications is integration of BACnet/IP or BACnet MS/TP devices into a Modbus TCP or Modbus RTU installation.
⚪Downlink Supports BACnet/IP, BACnet MS/TP
⚪Uplink Supports Modbus RTU, Modbus TCP
⚪Supports SNMP V1/V2
⚪Supports transparent transmission
⚪RJ45 Ethernet ports
⚪RS-485/232 serial ports
⚪Supports OpenVPN
⚪Supports 4G communication
⚪Supports WiFi, routing functions and cascading switch
⚪Supports remote configuration and firmware upgrade
All BL12x series gateways support 4G/WIFI/GPS/, and the number of serial ports can be selected from 2 serial series or 6 serial ports. The selection table is shown in Table 1 below.
| Model | WAN | LAN | COM(RS485/RS232) | WiFi | 4G | GPS |
| BL120BN | 1 | 1 | 2 | × | × | × |
| BL120BNL | 1 | 1 | 2 | × | √ | × |
| BL120BNLG | 1 | 1 | 2 | × | √ | √ |
| BL120BNW | 1 | 1 | 2 | √ | × | × |
| BL120BNP | 1 | 1 | 6 | × | × | × |
| BL120BNPL | 1 | 1 | 6 | × | √ | × |
| BL120BNPLG | 1 | 1 | 6 | × | √ | √ |
| BL120BNPW | 1 | 1 | 6 | √ | × | × |
Parameter |
Description |
|
System |
Processor |
Clock speed 300Mhz |
Storage |
128MB |
|
Flash memory |
64MB |
|
Power Supply |
Input voltage |
DC 9~36V |
Power consumption |
Normal: 85mA@12V, MAX: 117mA@12V |
|
Wiring |
Anti-reverse connection |
|
Ethernet Ports |
Specification |
2CH RJ45, 10/100Mbps, adaptive MDI/MDIX |
Protection |
ESD: ±6kV(Contact), ±8kV(Air) EFT: 1kV, 5kHz |
|
Serial Ports |
QTY |
2CH RS485 or RS232 |
Baud Rate |
2400bps-115200bps |
|
Data Bit |
7, 8 |
|
Parity Bit |
None, Even, Odd |
|
Stop Bit |
1, 2 |
|
Protection |
ESD: ±6kV(Contact), ±8kV(Air) EFT: 1kV, 5kHz |
|
USB Ports |
QTY |
1CH program downloading, 1CH program debugging |
Specification |
Micro USB OTG |
|
Protection |
Over Current Protection |
|
WiFi(Optional) |
Antenna QTY |
1 |
Antenna type |
SMA |
|
Protocol |
802.11a/b/g/n(mixed) |
|
Mode |
Client mode |
|
Signal path |
2.4G Channel 1 - 13, 5G Channel 36 - 165 |
|
Security |
Open, WPA, WPA2 |
|
Encryption |
AES, TKIP, TKIPAES |
|
Speed |
150Mbps(Max) |
|
Transmission distance |
Outdoor open area, up to 20 meters |
|
SSID |
Support |
|
Indicator |
PWR |
Always on when device powered on Off when device lose power |
RUN |
Flickering when system running Off when system shutdown |
|
LINK |
Flickering when Ethernet communication; Always on when WiFi communication, OFF when Ethernet, WiFi are all disconnected. |
|
Software |
Internet Protocol |
IPV4, TCP/UDP, DHCP, DNS |
IP Retrieving |
Static IP/DHCP |
|
Transmission |
Support Transparent Transmission |
|
DNS |
Support Domain Name Resolution |
|
Configuration |
PC configuration software, support WIN XP, WIN 7, WIN 8 and WIN 10 |
|
Internet Cache |
Transmitting: 8Kbyte; Receiving: 8Kbyte |
|
Login Package |
Support custom login package |
|
Heartbeat Package |
Support custom heartbeat package |
|
Safety Certification |
MTBF |
≥100,000 hours |
EMC |
EN 55022: 2006/A1: 2007 (CE &RE) Class B |
|
IEC 61000-4-2 (ESD) Level 3 |
||
IEC 61000-4-4 (EFT) Level 3 |
||
IEC 61000-4-5 (Surge)Level 3 |
||
Others |
CE, RoHS, FCC |
|
Environment |
Working |
-40~55℃, 5~95% RH |
Storage |
-40~70℃, 5~95% RH |
|
Others |
Shell |
Plastic |
Dimension |
30mm×83mm×110mm(LxWxH) |
|
IP Grade |
IP30 |
|
Net Weight |
133g |
|
Installation |
DIN-Rail Mounting, Wall-Mounting |
Box ,Shipping by air, land ,sea
