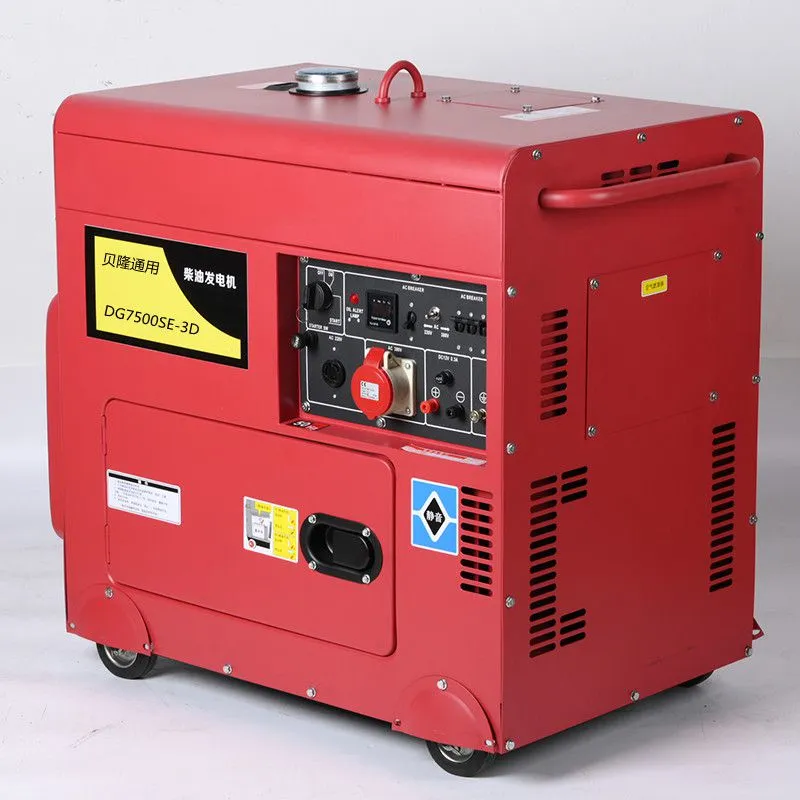

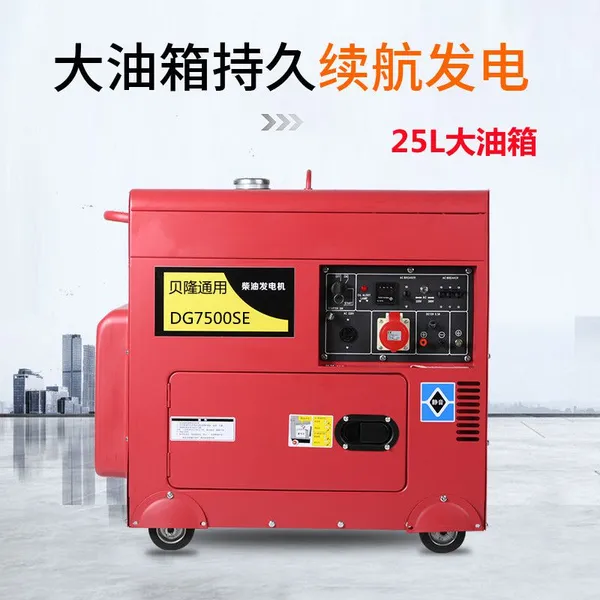

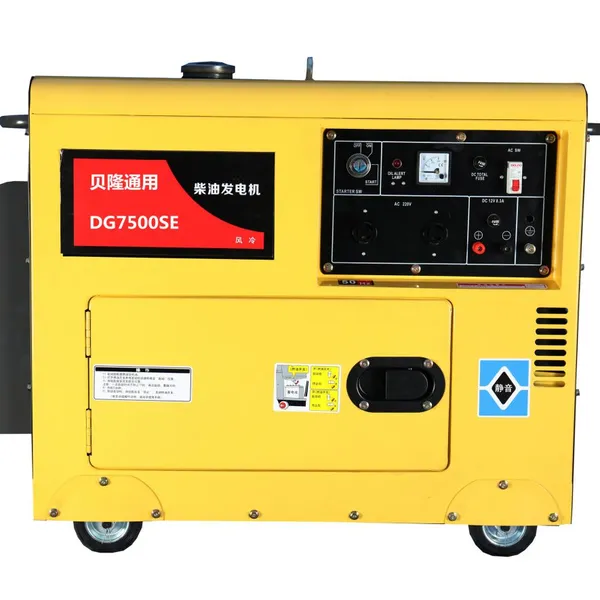

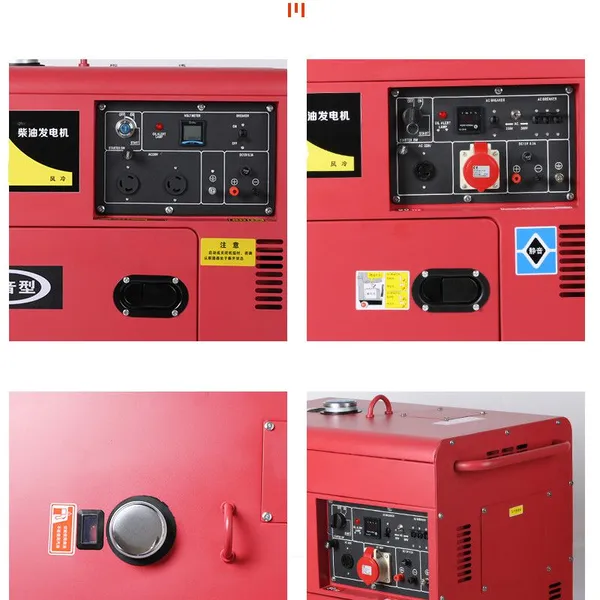

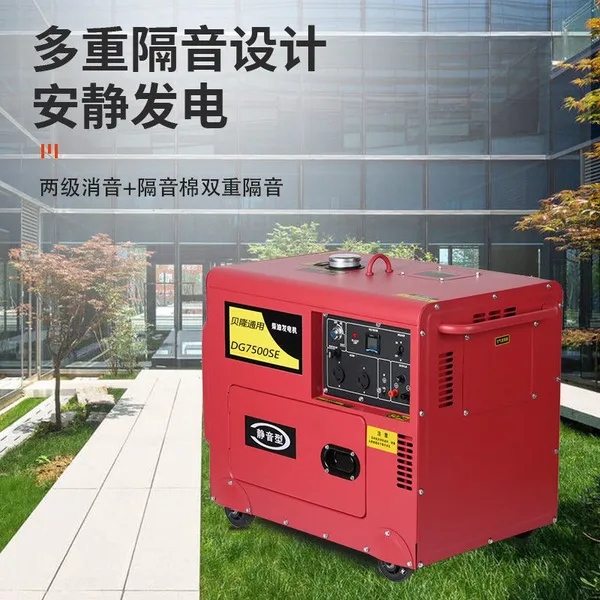

5KW Dual Power Silent Diesel Generator 188F Copper Alternator
Product Spotlights
Equipped with reliable 188F diesel engine, stable 5KW dual power output. Adopts 100% pure copper alternator, high efficiency and long service life. Silent design lowers running noise. Durable structure, easy operation, widely used for home, outdoor and emergency power supply.
US$ 620 - 630
MOQ: 10 Sets
Key Specifications
Get Latest Price
Type:
Basic Diesel Generator
Warranty:
1 year
Stroke:
Four Stroke
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing
Delivery Detail:
30 days
Related Products
-
6kw Single Phase 220v Diesel Generator 192F Diesel EngineUS$ 510 - 520MOQ: 10 Sets -
6kw Three Phase 380v Diesel Generator 192F Diesel EngineUS$ 535 - 545MOQ: 10 Sets
-
6kw Dual Power Diesel Generator 192FA Diesel EngineUS$ 565 - 575MOQ: 10 Sets
-
6kw Single Phase 220v Silent Diesel GeneratorUS$ 610 - 620MOQ: 10 Sets
-
6kw Three Phase 380v Silent Diesel GeneratorUS$ 640 - 650MOQ: 20 Sets
Type
Basic Diesel Generator
Warranty
1 year
Stroke
Four Stroke
Usage
Standby Unit
Speed
HSS
Cooling Method
Air Cooled
After-sales Service
yes
Installation Method
Portable
Excitation Mode
Other, self-excited
Conditions of Use
Land Use
Landuse Type of Unit
Low Noise
Output Type
Other, Single&Three Phase
Transport Package
Carton
Specification
DG7500SED
Trademark
Belon Power
Origin
China
5KW Dual Power Silent Diesel Generator 188F Copper Alternator
| Model | DG7500SED |
| Frequency[Hz] | 50 60 |
| Voltageg[V] | 220.230.240.110/220.115/230.120/240.230/380.230/400.240/415 |
| Rated Power( KW) | Single phase 4.5/Three phase5.0 Single phase 5.0/Three phase5.5 |
| Max. Power(KW) | Single phase5.0/Three phase5.5 Single phase5.5/Three phase 6.0 |
| Rated Output Current（A ) | Single phase19.5/Three phase7.2 Single phase 22/Three phase 8 |
| DC Output | 12V 8.3A |
| Phase | Single phase/Three phase |
| Excitation Method | Brush self-excitation |
| Power FactorΦ | 1.0(0.8) |
| Insulation Class | F |
| Fuel Tank Capaciity[L] | 12.5 |
| Engine Model | 188FGE |
| Start Method | Electric Start |
| Engine Type | Single cylinder,4-stroke,air-cooled, vertical |
| Bore*Strokke[mm] | 88 * 75 |
| Displacement | 0.456 |
| Compression Ratio | 19.5：1 |
| Speed[rpm] | 3000 3600 |
| Power [Kw] | 6.6 7.5 |
| Oil Capacity[L] | 1.65 |
| Fuel Consumption[g/kwh] | ≤275 ≤280 |
| Fuel No. | Diesel: 0#(Sumner), -10#(Winter) Use No. 0 diesel in summer, and use No. -10 or No. -20 diesel in winter. |
| Oil No. | SAE10W30 (CD grade or above) uses CD or above grade 15W-40 oil (or SAE equivalent grade oil) |
| Optional | ATS |
| Remote Control | |
| Intelligent digital display panel | |
| Size [mm] (L*W*H) | 910*525*680 |
| Packing Size [mm] (L*W*H) | 940*540*805 |
| Net Weight/Gross Weight[Kg] | 150/157 |
