SR2000 Eye-Safe Laser Rangefinder Module
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 7 days
You May Like
Product Details
| Place of Origin | China |
Product Description
Feature
Ultra-High Performance for Optimal System Functionality
Ensures optimal system performance with self-developed multi-pulse technology that achieves a measuring range of 600 meters within a compact form factor.
Ultra-Compact Size for Enhanced System Integration

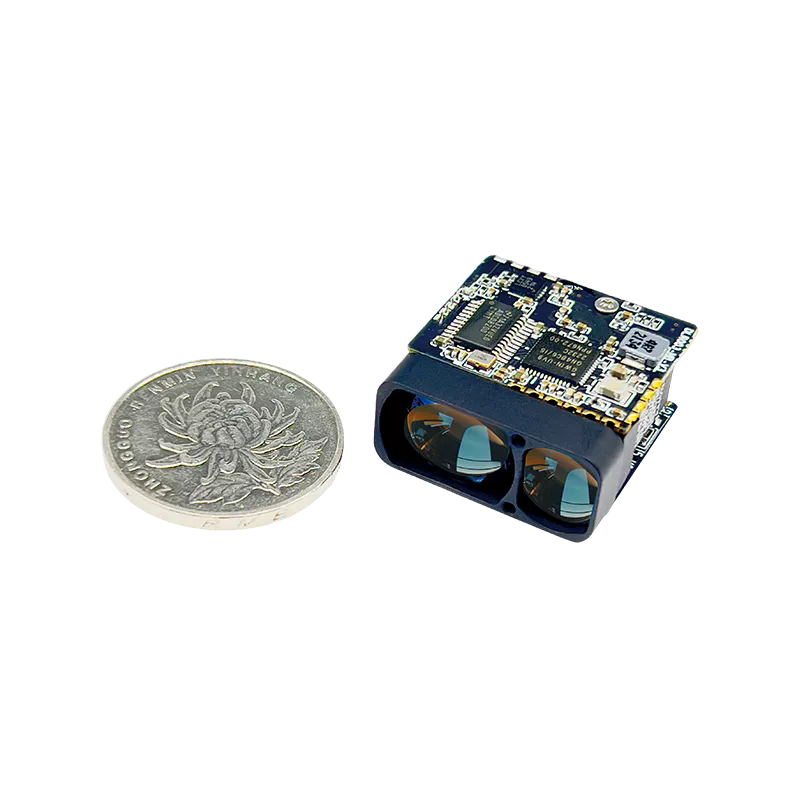

The SR600 laser rangefinder module measures just 25×26×13mm, making it the smallest among similar products.
Weighing only 10g, the module takes up minimal space and weight when integrated into systems.
Easier System Integration
Uses a standard UART interface that supports universal serial port communication protocols.
Provides an instruction set for sending and receiving data, facilitating seamless communication with the main control and ensuring easy system integration.
Specification
| Basic Features | |
|---|---|
| Laser Wavelength905±5 nmEye-safe LevelClass 1 (IEC 60825-1)Laser Divergence Angle~1×6mradRangefinding Performance (for buildings)5~600mMeasuring Accuracy±1mMeasuring Frequency5~45m, 3Hz; >45m, 0.75~3HzEmitting ApertureΦ10×7.5mmReceiver ApertureΦ15×10mmDetection Probability≥98%False Alarm Rate≤1% | |
| Electrical Characteristics | |
| Communication InterfaceUART (TTL_3.3V)Baud Rate9,600/14,400/19,200/38,400/57,600/115,200 (default)/128,000/230,400Power Supply ModeDC3-5VMaximum Power Consumption0.3WStandby Power Consumption≤1mw (Power ON<0.3V) | |
| Physical Characteristics | |
| Weight10±0.5gDimensions<25×26×13mmShock Resistance1,200g, 1msVibration Level5~50~5Hz, 1 octave/min, 2.5g | |
| Environment Adaptability | |
| Operating Temperature-40℃~+60℃Storage Temperature-40℃-+60℃ | |
Application Scenarios
Handheld Laser Rangefinder | Multi-spectral Telescope | Scope | UAV Airborne |
