Help CenterIX2 AIR Wireless Thermal Camera For Smart Devices
Related Products

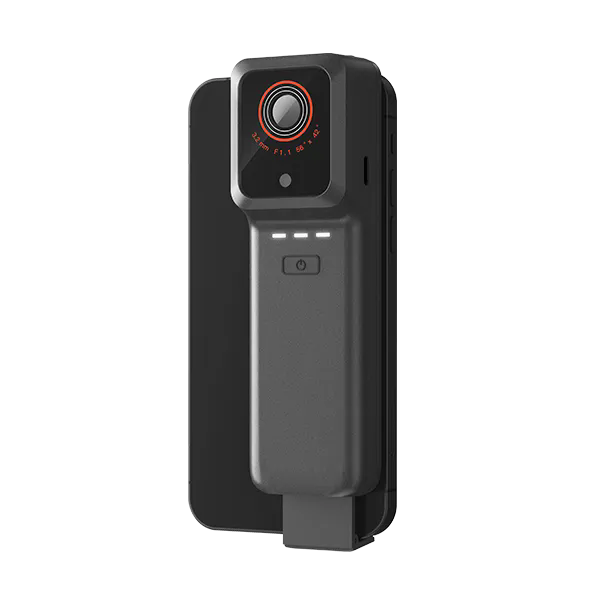

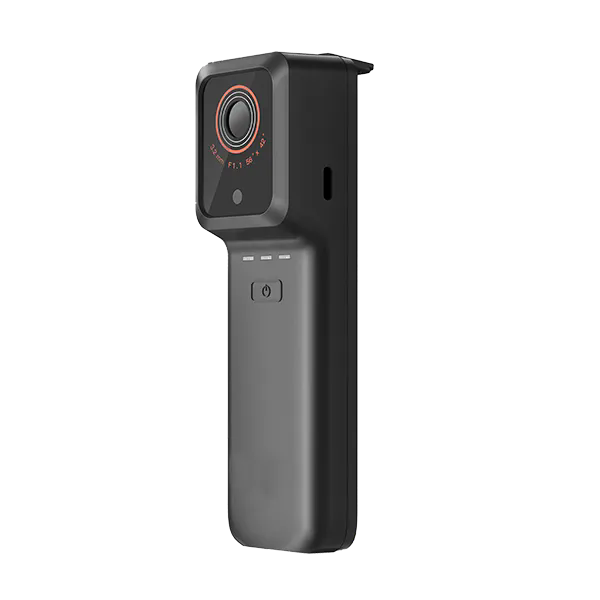

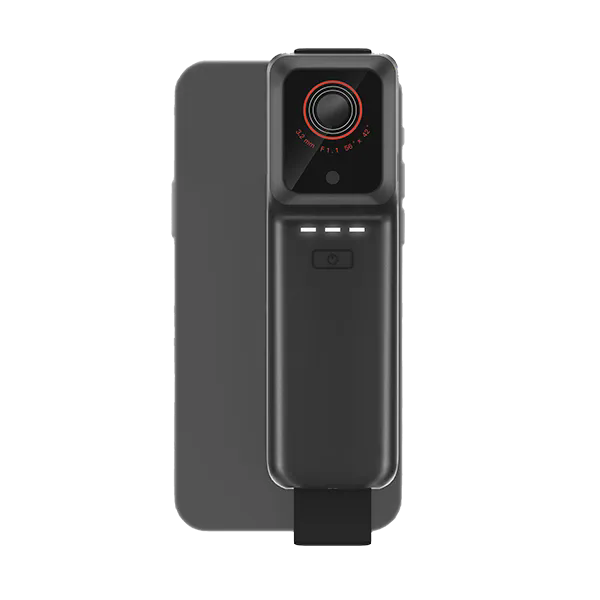

Equipped with a high-sensitivity 256×192 resolution infrared detector, the IX2 AIR can be freely combined or separated with a smartphone according to the scenarios.
It supports 8m wireless image transmission and operation.
With the supporting App for functions such as real-time analysis and transmission, the device can be widely used in electrical maintenance, equipment inspection, HVAC leak detection, and other fields.
Feature
1. Up to 8m* wireless image transmission.
2. Image transmission delay3. With 2 hours of battery life, productivity is always alive.
Built-in 12μm 256×192 infrared detector, featuring low power consumption and small size.
40mK professional-grade high thermal sensitivity, capturing smaller temperature differences; wider temperature measurement range of up to 550°C.
Four image modes + 7 palettes, suitable for temperature observation of different targets and different scenes.
IP54 waterproof and dustproof, 2m drop protection, light and slim design that fits your hand, weighing only 132g.
Faster Wi-Fi connection with the assistance of Bluetooth; OTA upgrade can be easily completed through the mobile app.
Professional app that supports full-scenario applications such as real-time analysis and offline analysis of temperature measurement images.
*The 8-meter image transmission distance is the test value taken when the space is without obstruction.
Specification
| Thermal Imaging | |
|---|---|
| Detector TypeUncooled infrared detectorInfrared Resolution256×192Pixel Size12μmSpectral Band7.5-14μmThermal Sensitivity (NETD)＜40mK (25°C,F1.0)Frame Rate25HzLens Focal Length3.2mmFOV56°×42°Spatial Resolution (IFOV)3.75mradFocusing ModeFixed focusMinimum Imaging Distance0.3mMeasurement Range-20°C~+150°C, 100°C~550°CMeasurement Accuracy±2ºC or ±2% of readings, whichever is greater | |
| Imaging Display | |
| Visible Light Camera2 megapixelsPalettes7Image ModeInfrared, visible light, PIP, dual-spectrum fusionTemperature Width StretchAuto | |
| Measurement and Analysis | |
| App Analysis FunctionCentral temperature point/Highest temperature point/Lowest temperature point, 1 preset analysis template (support 3 custom points, 3 custom lines, and 3 custom frames) | |
| System Functions | |
| Communication ProtocolWi-Fi, USB, BluetoothRemote Access and ControlConnection to smart devices via Wi-Fi, up to 8m away | |
| Others | |
| Battery1050mAhCharging ModeUSB Type-CBattery LifeAbout 2hTripod SocketUNC 1/4-20 interface for tripodOperating Temperature-10°C~+50°COperating Humidity10%~90% (non-condensing)Storage Temperature-20°C~+60°CIngress Protection RatingIP54Shock and VibrationShock: 25g (IEC 60068-2-27); vibration: 2.5g (IEC60068-2-6)Weight and DimensionsAbout 132g, 135.6×41×29.1mmAuthenticationCE/RoHS/CMA, etc.Packing ListThermal camera, USB cable | |
Application Scenarios
|
Power Maintenance |
HVAC Leak Detection |
Equipment Inspection |
Circuit Board Repairing |
