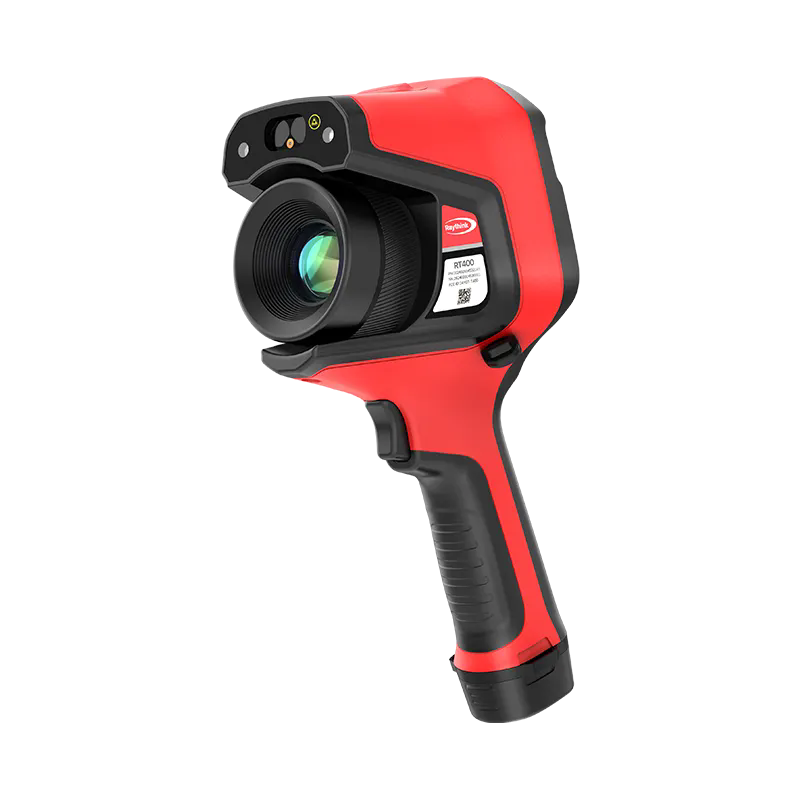

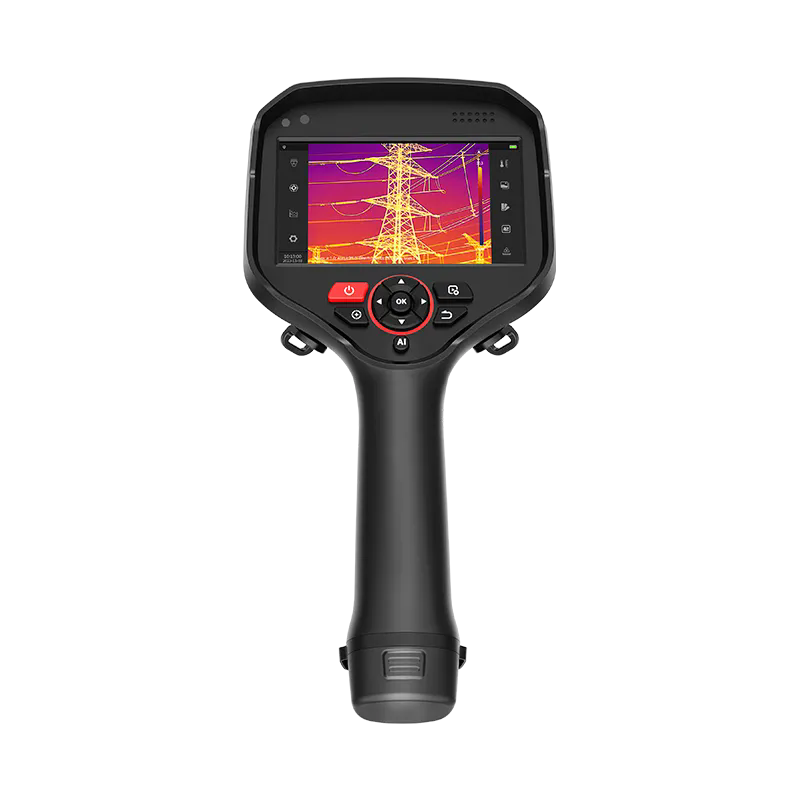

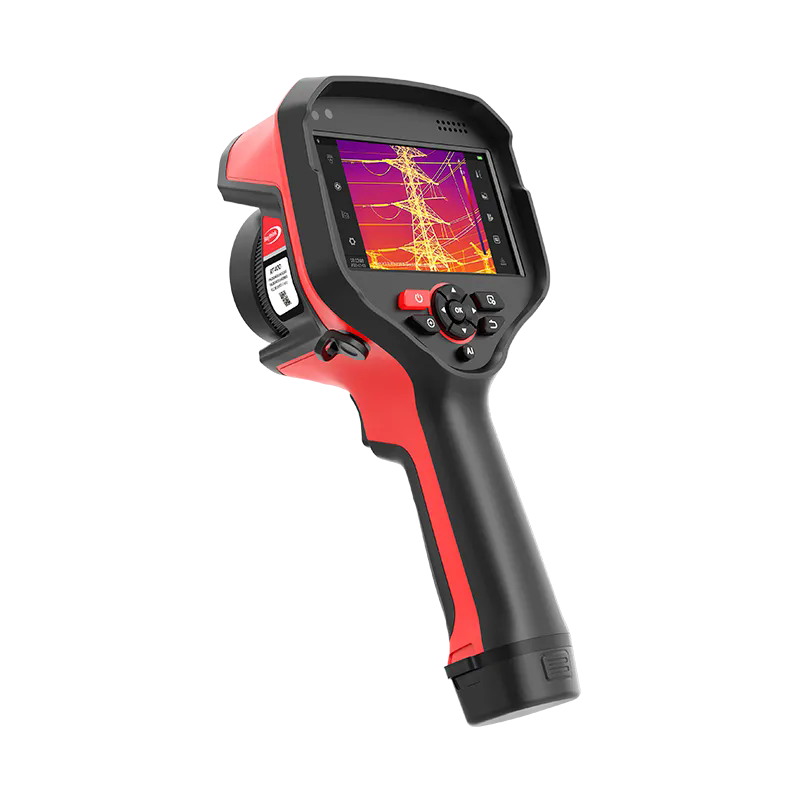

RT630 Expert Thermal Camera
- 10000 Piece / Pieces per Month
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 7 days
You May Like
Product Details
| Place of Origin | China | Theory | Infrared Thermometer |
Product Description
Equipped with a new-generation detector with a high resolution of 640×512 and a NETD as low as 35mK, the new RT630 can capture more subtle hotspots, and display sharper and cleaner thermal images.
The device has rich and powerful features such as Android OS, trend analysis, and area measurement.
It is a new strong tool for expert-level full-scene analysis.
Equipped with a 12μm uncooled infrared detector, with a resolution of 640×512, supporting super resolution.
NETD is as low as 35mK, and temperature measurement precision is ±2°C or ±2% of reading (whichever is the maximum value).
Standard 25° lens, with optional wide-angle, telephoto, and super telephoto lenses.
Support macro lenses, flexible for diverse scenarios.
Android operating system, more convenient to operate
Support intelligent image stabilization, making temperature measurement images more stable
Support laser rangefinding and area measurement.
Support up to 20 points/lines/areas to analyze more temperature details in the screen.
| Thermal Imaging | |
|---|---|
| Detector TypeUncooled infrared detectorInfrared Resolution640×512Pixel Size12μmSuper Resolution1280×1024Spectral Band7.5-14μmThermal Sensitivity (NETD)＜35mK (25°C,F1.0)Frame Rate25HzLens Focal LengthStandard lens: 17.7mm; super telephoto lens: 60.9mm; telephoto lens: 31.5mm; wide-angle lens: 9.5mm; macro lens (0.2×): 13mm; super macro lens (0.4×): 14.8mm.FOVStandard lens: 25°×20°; super telephoto lens: 7°×5.6°; telephoto lens: 14°×11.2°; wide-angle lens: 45°×36°.Spatial Resolution (IFOV)Standard lens: 0.68mrad; super telephoto lens: 0.2mrad; telephoto lens: 0.38mrad; wide-angle lens: 1.26mrad; Macro lens: One pixel corresponds to 60μm; super macro lens: One pixel corresponds to 30μm.Focusing ModeElectric micro focus, manual focusing, one-button center focus, automatic center focus, single-touch automatic focusing, laser-assisted focusMinimum Imaging DistanceStandard lens: 0.4m; super telephoto lens: 4m; telephoto lens: 3m; wide-angle lens: 0.2m; macro lens: 39mm; super macro lens: 19mm;Measurement Range-20°C~+150°C, 100°C~650°C; optional: 400°C~+1500°CMeasurement Accuracy±2°C or ±2% of readings, whichever is greater | |
| Imaging Display | |
| Display5-inch OLED touch screen, resolution 1280×720Visible Light Camera13 megapixelsDigital Zoom1× ~ 10×Palettes19 optionsImage ModeInfrared, visible light, PIP, dual-spectrum fusionTemperature Width StretchSupport | |
| Measurement and Analysis | |
| Analysis Functions on the DeviceSupport up to 20 movable points, lines, frames, circles and polygons, and up to 5 preset modesLaser RangefindingSupportArea MeasurementSupportHygrothermographSupportPositionSupportTemperature Difference AnalysisSupportTrend AnalysisSupports temperature trend recording and analysis.Image FreezingSupportAnalysis ReportPDF format. Support editing and template importing on the PC client.Supporting SoftwarePC (Infrared Analysis Software) & Mobile Device (iOS/Android APP) | |
| Image Storage | |
| Storage MediumStandard 64GB Micro SD, Support SD, SDHC, SDXC,up to 2TBText NotesSupportVoice AnnotationSupport | |
| Video Functions | |
| Radiation Infrared Video RecordingSupport compressed full radiation video recording (.irv), up to 25Hz video recording.Non-radiation Infrared or Visible Light Video RecordingStandard MP4 video recordingRadiation Infrared Video Stream TransmissionTYPE-C/WLAN connection to PC, for real-time transmission of radiation infrared video streamsNon-radiation Infrared Video Stream TransmissionRTSP H.264Video Resolution1280×720 | |
| System Functions | |
| Intelligent Image StabilizationSupportIntelligent Panoramic StitchingSupport panoramic stitching on the PC client, and one-click synthesis.Intelligent Routine InspectionSupport. General task package import and editing, standard and automatic naming of imagesRoutine Inspection Record Self-inspectionSupportDual-Spectrum Video RecordingSimultaneous infrared video and visible light video recording, in MP4 format.Communication ProtocolWi-Fi, Bluetooth, USB, DP, Type-C to HDMIVoice ControlVoice assistant, quick command recognitionFlashlightSupport | |
| Others | |
| Microphone/SpeakerSupportBattery10,000mAh lithium-ion battery, field-replaceable, support fast chargingCharging ModeUSB Type-C or desktop chargerBattery LifeContinuous operating time ≥ 6 hours (depending on the actual environment and service conditions)InterfaceUSB3.0 Type-C, SD card, SIM card, Mini HDMITripod SocketUNC 1/4-20 interface for tripodOperating Temperature-20°C~+55°COperating Humidity10%~95% (non-condensing)Storage Temperature-40°C~+70°CIngress Protection RatingIP54Shock and VibrationShock: 25g (IEC 60068-2-27); vibration: 2.5g (IEC60068-2-6)Weight and DimensionsAbout 1.3kg (with battery), 144×129×307mmAuthenticationCE/RoHS/CMA, etc.Packing ListThermal camera, standard lens, lithium-ion battery×2, charging stand, charger (with plug for use in multiple countries), charging cable, Bluetooth headset, SD card 64G, Type-C cable, lens hood, mold drawing, data download card, calibration certificate, certificate of qualification, hand strap (with buckle), safety box, lens cap (with screws). | |
| High Temperature Material Monitoring | Electronic and Electrical R&D | Electric Routine Inspection | Chemical Operation and Maintenance |
