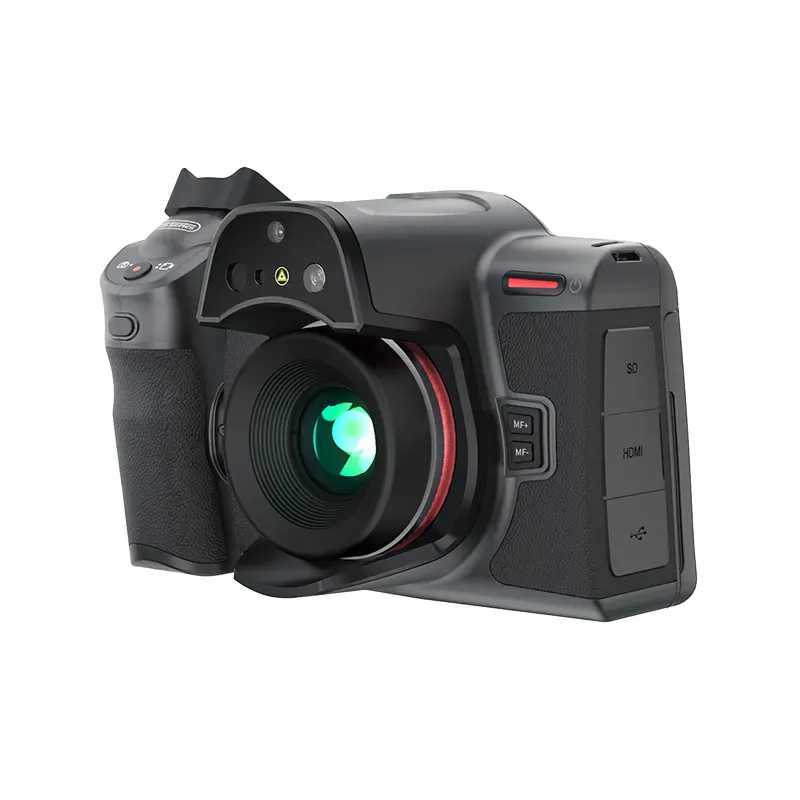

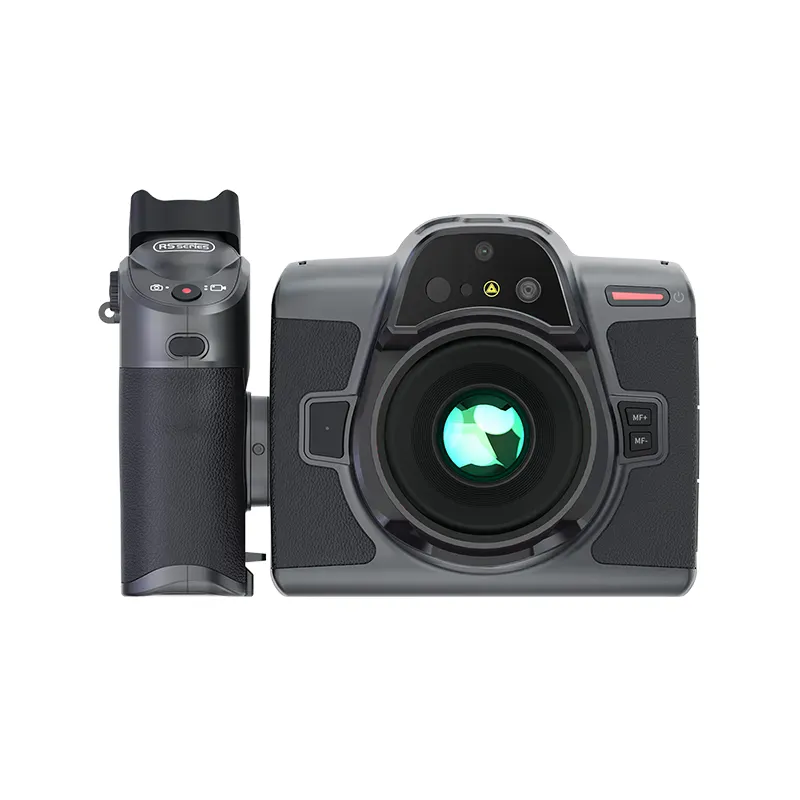

RS1280 is RayThink Technology’s first 1280×1024 high-performance, high-pixel thermal camera for scientific research.
Equipped with a self-developed new-generation VOx infrared detector with a thermal sensitivity as low as 25mK, this device uses intelligent image algorithms and precise temperature measurement algorithms to provide clearer infrared images and higher measurement accuracy.

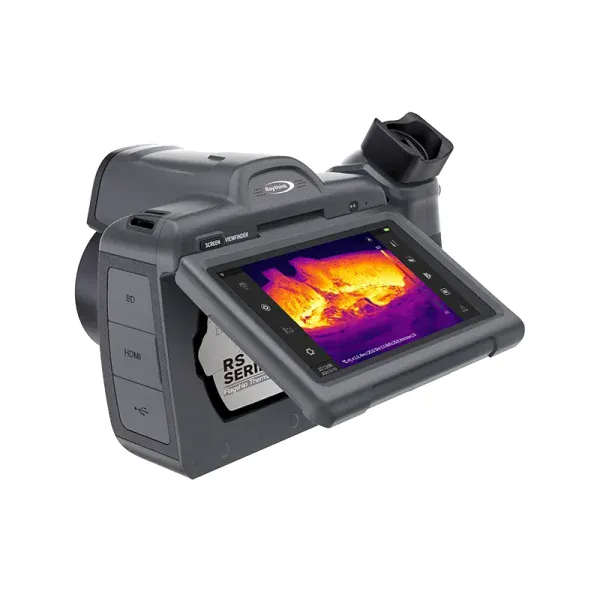

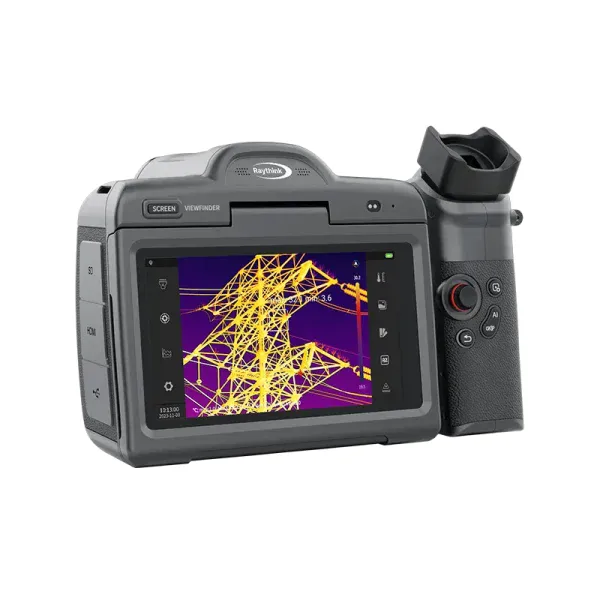

Android operating system, intelligent applications & miscellaneous functions, and a 5.5-inch angle-adjustable display and rotatable handle bring a better experience meeting the ergonomics requirements.
Feature
Equipped with a 12μm uncooled infrared detector, with a resolution of 1280×1024, providing up to 2560×2048 HD super-resolution infrared thermal images.
NETD as low as 25mK and a high measurement accuracy to generate more delicate thermal images.
Standard 25° lens, with optional wide-angle, telephoto, super telephoto, and macro lenses, flexible for diverse scenarios.
Support multiple focusing methods such as manual focus, auto focus, laser focus, auto focus, and continuous auto-focusing.
Android operating system, more convenient to operate
Support intelligent image stabilization, making temperature measurement images more stable
Support laser rangefinding and area measurement.
Support up to 35 points/lines/areas to analyze more temperature details in the screen.
Specification
| Thermal Imaging | |
|---|---|
| Detector TypeUncooled infrared detectorInfrared Resolution1280×1024Pixel Size12μmSuper Resolution2560×2048Spectral Band7.5-14μmThermal Sensitivity (NETD)＜25mK (25°C,F1.0)Frame Rate30HzLens Focal LengthStandard lens: 34.9mm; wide-angle lens: 19.8mm; telephoto lens: 72.9mm; macro lens (0.2×): 17.8mm; super macro lens (0.4×): 15.2mmFOVStandard lens: 25°×20°; telephoto lens: 12°×9.6°; wide-angle lens: 45°×36°Spatial Resolution (IFOV)Standard lens: 0.34mrad; telephoto lens: 0.17mrad; wide-angle lens: 0.6mrad; macro lens: One pixel corresponds to 50μm; super macro lens: One pixel corresponds to 25μm.Focusing ModeManual focus,electri micro focus, one-button center focus, automatic center focus,single-touch automatic focus, laser-assisted focusMinimum Imaging DistanceStandard lens: 0.5m; telephoto lens: 2.3m; wide-angle lens: 0.2m; macro lens: 46mm; super macro lens: 13mm;Measurement RangeStandard: -20°C~+150°C (low temperature range), 150°C~800°C (medium temperature range). 400°C~2000°C, other ranges (high temperature range) | |
| Imaging Display | |
| Display5.5-inch LCD touch screen, resolution 1920×1080Visible Light Camera13 megapixelsDigital Zoom1–15 times, continuously adjustable rollerPalettes19 optionsImage ModeInfrared, visible light, PIP, dual-spectrum fusionTemperature Width StretchSupport | |
| Measurement and Analysis | |
| Laser RangefindingSupportArea MeasurementSupportPositionSupportTemperature Difference AnalysisSupportTrend AnalysisSupports temperature trend recording and analysis.Image FreezingSupportAnalysis ReportPDF format. Support editing and template importing on the PC client.Supporting SoftwarePC (Infrared Analysis Software) & Mobile Device (iOS/Android APP) | |
| Image Storage | |
| Storage MediumStandard 64GB MicroSD. Support SD, SDHC, and SDXC, up to 2TB.Text NotesSupportVoice AnnotationSupport | |
| Video Functions | |
| Radiation Infrared Video RecordingSupport compressed full radiation video recording (.irv), up to 15Hz video recordingNon-radiation Infrared or Visible Light Video RecordingStandard MP4 video recordingRadiation Infrared Video Stream TransmissionAnalysis at about 25Hz on PCNon-radiation Infrared Video Stream TransmissionRTSP H.264Video Resolution1920×1080 | |
| System Functions | |
| Intelligent Image StabilizationSupportIntelligent Panoramic StitchingSupportIntelligent Routine InspectionSupport. General task package import and editing, standard and automatic naming of imagesRoutine Inspection Record Self-inspectionSupportDual-Spectrum Video RecordingSimultaneous infrared video and visible light video recording, in MP4 format.Communication ProtocolWi-Fi, Bluetooth, USBVoice ControlVoice assistant, quick command recognitionFlashlightSupport | |
| Others | |
| Microphone/SpeakerSupportBattery9000mAh lithium-ion battery, field-replaceable, fast chargingCharging ModeUSB Type-C or desktop chargerBattery LifeContinuous operating time ≥ 3 hours (depending on the actual environment and service conditions)InterfaceUSB3.0 Type-C, SD card, SIM card, Mini HDMITripod SocketUNC 1/4-20 interface for tripodOperating Temperature'-15°C~+50°COperating Humidity10%~95% (non-condensing)Storage Temperature-40°C~+70°CIngress Protection RatingIP54Shock and VibrationShock: 25g (IEC 60068-2-27); vibration: 2.5g (IEC60068-2-6)Weight and Dimensions | |
Application Scenarios
|
Electric Routine Inspection |
Microelectronics |
High-End Scientific Research |
Nondestructive Testing |
