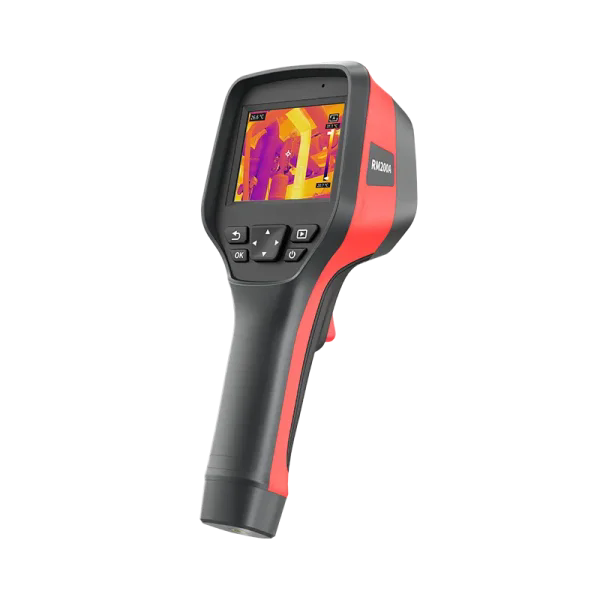

The RM200F is equipped with a self-developed 12μm high thermal sensitivity 256×192 infrared thermal imaging detector.
Based on intelligent and precise temperature measurement algorithms, HD image algorithms, and cloud services, it strives to be a professional infrared thermal imaging tool with HD images, a large-screen display, and accurate temperature measurement for applications such as electrical maintenance and circuit design.
Feature
Equipped with a 256×192 self-developed uncooled infrared detector.
40mK thermal sensitivity, capable of distinguishing the minimum temperature difference of 0.04°C, capturing small hot and cold spots.
-20°C~+550°C wide measurement range for monitoring more temperature targets.
Manually adjusting the temperature range to meet the needs of multiple scenarios and uses.
Support multiple image modes + multiple palettes to meet the needs of temperature measurement under different requirements.
Support the software analysis on PC.
Equipped with a 3.5-inch touch screen, supporting center point, hot and cold spot tracking and temperature display.
IP54, 2m drop protection.
Standard configuration of 2 quick-removal batteries, with a battery life of up to 8h.
Specification
| Thermal Imaging | |
|---|---|
| Detector TypeUncooled infrared detectorInfrared Resolution256×192Pixel Size12μmSpectral Band7.5-14μmThermal Sensitivity (NETD)＜40mK (25°C,F1.0)Frame Rate25HzLens Focal Length3.2mmFOV56°×42°Spatial Resolution (IFOV)3.75mradFocusing ModeFixed focusMinimum Imaging Distance0.3mMeasurement Range-20°C~+150°C, 100°C~550°CMeasurement Accuracy±2°C or ±2% of readings, whichever is greater | |
| Imaging Display | |
| Display3.5-inch touch screen, 640×480 resolutionVisible Light Camera2 megapixelsDigital Zoom1× 2× 4×Palettes7Image ModeInfrared, visible light, PIP, dual-spectrum fusionTemperature Width StretchAutomatic/Manual | |
| Measurement and Analysis | |
| Analysis Functions on the DeviceCustom points/lines/areas; up to 10 points, 10 areas, and 10 lines; Center point/Hot and cold spot tracking and temperature displaySupporting SoftwarePC (Infrared Analysis Software) | |
| Image Storage | |
| Storage MediumStandard 32GB MicroSD, up to 128GText NotesSupportVoice AnnotationSupportImage NamingAuto/manual naming, naming by scanning QR code | |
| System Functions | |
| Communication ProtocolWi-Fi, USBVideo TransmissionSupport UVC video transmissionLaser PointerSupport | |
| Others | |
| BatteryRechargeable and detachable lithium-ion batteryCharging ModeUSB Type-C or desktop chargerBattery LifeAbout 8h (about 4h for a single battery)InterfaceUSB Type-C, SD cardTripod SocketUNC 1/4-20 interface for tripodOperating Temperature-10°C~+50°COperating Humidity10%~95% (non-condensing)Storage Temperature-20°C~+60°CIngress Protection RatingIP54Shock and VibrationShock: 25g (IEC 60068-2-27); vibration: 2.5g (IEC60068-2-6)Weight and DimensionsAbout 635g, 258.4×105.1×102.3mmAuthenticationCE/RoHS/CMA, etc.Packing ListThermal camera, 5V 2A power adaptor, USB cable, SD card, battery ×2, Quick Start Guide, battery charger, calibration certificate, package list, portable cloth bag | |
Application Scenarios
| HVAC Maintenance | Equipment Maintenance | Circuit Design | Power Maintenance |
