High Definition-Power Line Communication KSF900Q

High Definition-Power Line Communication KSF900Q

                                         DC Filter type

Products Features:

●Intelligent manufacturing,built-in filtering function,independent dual-channel network ports and RS485,

   industrial grade standards.

●The advantages of broadband power line carrier over traditional narrowband power line carrier communication

   are high communication rate, bi-directional transmission, good transmission stability and high scalability.

●Industrial DIN rail installation, can be quickly installed and disassembled ,to save space.

●DC power carrier:DC12-48V,built-in 5A filtering,it can effectively filter out the influence of power line interference

   on the power carrier,it can also isolate the carrier signal.

●It is is an industrial-grade bandwidth power line carrier communication device based on IEEE P1901,adopting

   OFDM modulation and demodulation technology and conforming to the European Union EN-50561 standard

   specification.

●Carrier connection method,support power collection from power lines,there is no need to provide DC power supply

   separately.Make full use of existing power line network,no rewiring is required,maximize the optimization of network

   networking cumbersome wiring.

Technical data:

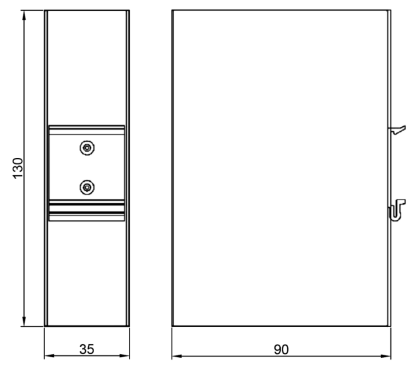

Exterior dimensions:

The PLC ’s length, width and height are：90x35x130mm（Without terminal），TS35 rail mounting method.

Applications:

The products are suitable for DC power line or slid contact cord carrier communication，

including inspection robots, underwater robots, pipeline robots, DC slid contact cord and other fields.
