High Definition-Power Line Communication KS820C

High Definition-Power Line Communication KS820C

                                          General type

Products Features:

●Intelligent manufacturing,gigabit bandwidth,long transmission distance,self-organising network and self-routing,

   fully transparent dissemination of data,industrial grade standards.

●The advantages of broadband power line carrier over traditional narrowband power line carrier communication are

   high communication rate, bi-directional transmission, good transmission stability and high scalability.

●It is a high performance SoC-based power line carrier communication module，with highly integrated and reliable

   features.Adopt OFDM modulation technique.

●The carrier supports bus, star, tree, and hybrid network topologies structure.

●The carrier band is in1.8~86MHz，the physical layer rates up to1000Mbps，hundred megabytes of bandwidth at

   the data layer，long transmission distance，power line can transmit up to 300 metres.

Technical data:

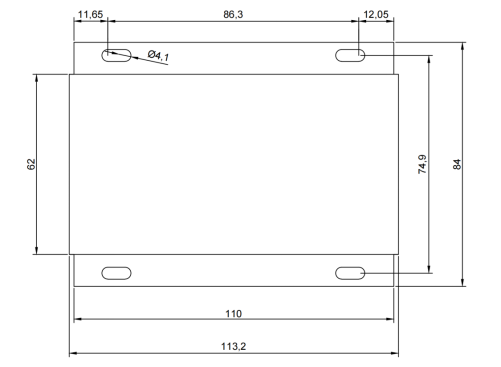

Exterior dimensions:

PLC’s length, width and height are：113.2x84x25mm（without terminal），there are four fixing holes in the fixing

lugs on both sides,which are fixed with screws No. M4.

Applications:

It has been widely used in electric power equipment data acquisition, inspection robots, charging pile data

acquisition,as well as intelligent monitoring, building visual intercom, industrial field data acquisition and control

and other occasions that require real-time data communication.
