High Definition-Power Line Communication KS710L

Name: High Definition-Power Line Communication KS710L
Brand: Shanghai CX
SKU: 172641141

US$ 156 - 156.11 MOQ: 2 Pieces

Key Specifications

Brand Name:

Shanghai CX

Place of Origin:

China

Model Number:

KS710L

Shanghai CX Electronic Technology Co. , Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Brand Name Shanghai CX

Place of Origin China

Model Number KS710L

Type Wired

Certification ISO9001,CE

Style External

Interface Type RJ-45

Products Status Stock

Transmission Rate Other, 100Mbps

High Definition-Power Line Communication KS710L

The Single-phase power withdrawals type

Products Features:

●Industrial grade quality,sustainable work 30,000 hours.

●The broadband carrier KS710L12V adopts industrial design,using the existing power line network,

maximize the optimization of network networking cumbersome wiring.

●Rigorous hardware design,integrated coupling circuit inside the product,enhanced high voltage

isolation,improved surge protection.

●The power supply is 220V AC with one or two network ports, and with one power output( 12V/24W).

●External protection upgrade : metal shell, high and low temperature resistance, can better shield interference.

Technical data:

Classification	Technical indicators
Power supply	AC power supply：100～220V
PLC Signal port	Voltage AC100-220V power line,slip touch cord，slip ring cable, etc
DC Output	Output DC power supply 12V/24W
Modulation type	OFDM modulation type
Carrier frequency	2～28 MHz
Ethernet bandwidth	10M/100Mbps self-adaption
Transmission distance	Maximum transmission distance：Point-to-point 500 meter class 10 relay 3-5 kilometre
Data delay	Within 10ms
Packet loss probability	Less than0.1%
Overall power consumption	≤3W
Standard agreement	TCP/IP，UDP，Profinet，Home Plug，Modbus-TCP， IEEE 802.3，IEEE 802.3U，IEEE 802.3ab，IEEE 1905.1， IEEE 1900，IEEE 1901 etc
Way of encryption	AES-128 bit
Multicast	Support IGMP multicast protocols,the maximum number of nodes is 128

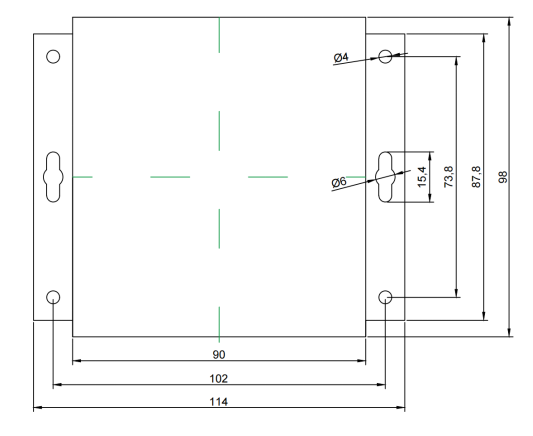

Exterior dimensions	Size：1149835.2mm （LWH） Weight：330g Install：Earhook
Environmental requirement	Operating temperature：-40℃～85℃ Operating humidity：20%-95%（No condensation） Storage temperature：-40℃～85℃
Working time	Industrial grade, supports 7*24 hours all-weather work
