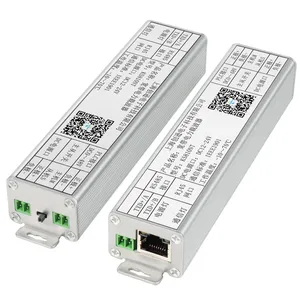

High Definition-Power Line Communication KS810N
Long strip type
Products Features:
●Intelligent manufacturing,hundred megabit bandwidth,highly versatile,ultra small width,independent dual channel,
industrial grade standards.
●The advantages of broadband power line carrier over traditional narrowband power line carrier communication are
high communication rate, bi-directional transmission, good transmission stability and high scalability.
●More compatible hardware design,the power supply voltage of the carrier KS810N is DC 12-24V / 1A, for the DC
type,the PLC channel port needs to distinguish the positive and negative poles. For the AC type,the zero line fire line
of the PLC channel port does not need to be distinguished.
●The carrier supports bus, star, tree, and hybrid network topologies structure.
●It is an industrial-grade, high-bandwidth, long-distance transmission power carrier communication device with excellent performance,based on IEEE P1901, using OFDM modulation and demodulation technology,industrial-grade bandwidth power line carrier communication equipment compliant with the European Union's EN-50561 standard specification.
Technical data:
| Category | Classification |
Technical indicators |
Power supply |
DC Power supply | DC: 12-48V, 1V |
|
Performance parameter |
Modulation type | OFDM modulation type |
| Transmission distance | Power line point-to-point 500 meter(or coaxial line 2 kilometer) |
|
| Ethernet | 10Mbps/100Mbps self-adaption | |
| Multicast | Support IGMP multicast protocols |
|
Way of encryption |
AES-128bit |
|
|
Overall power consumption |
≤3W | |
| Physical Layer / Effective propagation distance | 240M/92Mbps | |
|
Transmisson medium |
Any two-core wire, such as power line, twisted pair. coaxial line, parallel line etc. |
|
|
Environmental requirement |
Operating temperature |
-40℃～85℃ |
Operating humidity |
20%-95%（No condensation） |
|
Storage temperature |
-40℃～85℃ |
|
|
External dimension |
Colour |
Silver gray |
Size |
Length,width and height are：160*35*26mm (Fixing hole distance is 153mm） |
|
|
Net weight |
100g |

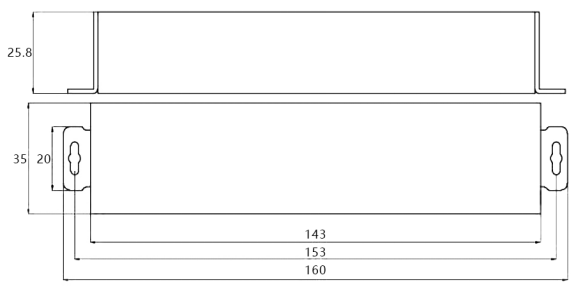

Exterior dimensions:
PLC KS810N’s length, width and height are：160*35*25.8 mm(with fixed ear)，fixed hole spacing is 153mm，
fix with 2pcs M4 screw.
Applications:
It has been widely used in various industries,including logging drilling rods, inspection robots, slide robots,
pipeline robots,underwater robots, intelligent charging piles, industrial automation and other fields.
