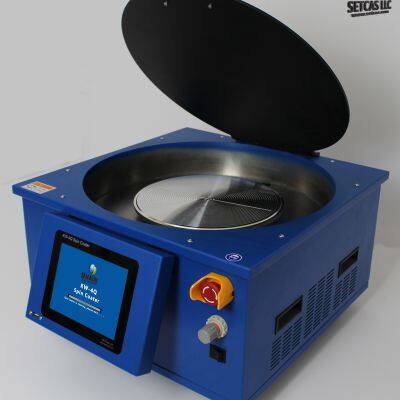

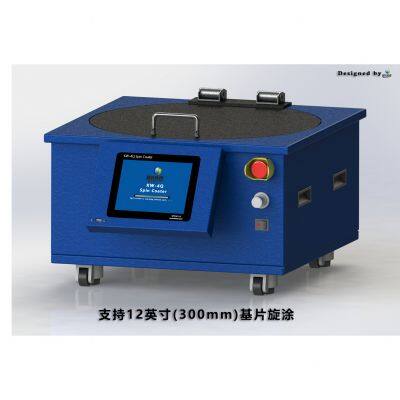

Setcas KW-4Q Spin Coater With Oil-less Vacuum Pump and 3 Chucks Hongkongsetcas
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Setcas
Place of Origin:
China
Model Number:
KW-4Q
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing
Delivery Detail:
3 days
Related Products
-
Setcas KW-4S Spin Coater With Oil-less Vacuum Pump and 3 ChucksNegotiableMOQ: 1 Set -
Setcas KW-4K Spin Coater With Oil-less Vacuum Pump and 3 ChucksNegotiableMOQ: 1 Set
-
Setcas KW-4E-I Spin Coater With Oil-less Vacuum Pump and 3 ChucksNegotiableMOQ: 1 Set
-
Setcas KW-4A Spin Coater With Oil-less Vacuum Pump and 3 ChucksNegotiableMOQ: 1 Set
-
Setcas KW-4B Spin Coater With Oil-less Vacuum Pump and 3 ChucksNegotiableMOQ: 1 Set
Brand Name
Setcas
Place of Origin
China
Model Number
KW-4Q
After-sales Service Provided
Engineers available to service machinery overseas
Condition
New
1.Substrate size: 200-300mm (8 inches to 12 inches)
2. Speed range: 10-6000RPM
3. Acceleration range: 10-1000RPM/S，Adjustable
4. Motor speed stability: ±1RPM
5. Spin coating uniformity: ±1%
6. Human machine interface: 8-inch touch screen
7. Communication interface: USB (standard)/RS485 (optional)/Bluetooth (standard)
8. Turn around: Support forward and reverse
9. Stylus: Stylus BAMBOO resistance pen (standard)
10. Vacuum Pump: SC-550V
11. Set data: Unlimited groups of data, each group has 15 speeds (standard) or unlimited speeds (optional)
12. Seconds per period: 0-10000s
13. Storage data: Unlimited data
14. Data protection: default with power-down protection
15. Operating voltage(Spin Coater): AC100-250V, single phase, 50/60Hz
16. Operating voltage(Pump): AC220V(Standard) AC110V(Optional)
17. Pumping speed: ≥60L/MIN
18. Max vacuum: -85KPA
19. Sound Level: ≤55db
20. Spin coater power: 2KW
21. Pump power: 350W
22. Dimensions(Spin Coater): 550mm(W)X550mm(D)X350mm(H)
23. Weight(Spin Coater): 50KG
24. Weight(Pump): 9KG
25. Relative humidity:
26. Ambient temperature: 0-40℃
27. Warranty: 1 year
