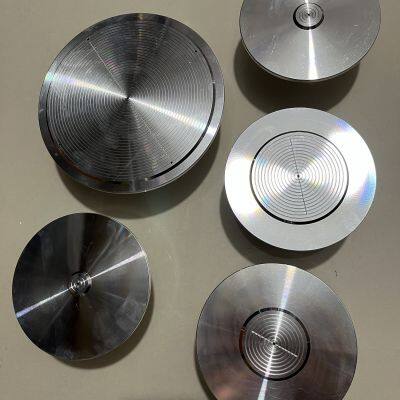

Setcas KW-4C-II Spin Coater With Oil-less Vacuum Pump and 3 Chucks
Negotiable
/ Set
1 Set(Min. Order)
- Beijing
- T/T
- 3 days
You May Like
-
Setcas KW-4L Spin Coater With Oil-less Vacuum Pump and 3 Chucks
-
Setcas KW-4L-I Spin Coater With Oil-less Vacuum Pump and 3 Chucks Hongkongsetcas
-
Setcas KW-4E Spin Coater With Oil-less Vacuum Pump and 3 Chucks
-
Setcas KW-4E-II Spin Coater With Oil-less Vacuum Pump and 3 Chucks
-
Setcas KW-4E-III Spin Coater With Oil-less Vacuum Pump and 3 Chucks
-
Setcas KW-4Q Spin Coater With Oil-less Vacuum Pump and 3 Chucks Hongkongsetcas
Product Details
| Brand Name | Setcas | Place of Origin | China | |
| Model Number | KW-4C-II | After-sales Service Provided | Engineers available to service machinery overseas | |
| Condition | New |
Product Description
1. Substrate size: 5mm to 150mm（6 inches）
2. Speed range: 50-12000RPM
3. Acceleration range: 10-10000RPM/S，Adjustable
4. Motor speed stability: ±1RPM
5. Spin coating uniformity: ±1%
6. Glue coating and developing system: Integrated 4-channel glue application and development management, standard 2-channel automatic glue application and
development module
7. Human machine interface: 4.3 inch touch screen
8. Communication interface: USB interface, can be connected to the wireless mouse and keyboard: the machine can be placed in the glove
9. Stylus: Stylus BAMBOO resistance pen (standard)

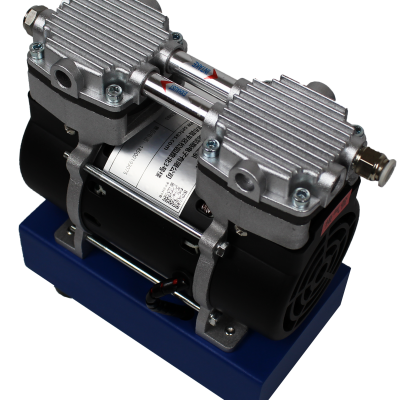

10. Vacuum Pump: SC-550V
11. Operating voltage(Spin Coater): AC100-250V, single phase, 50/60Hz
12. Operating voltage(Pump): AC220V(Standard) AC110V(Optional)
13. Adjustable vacuum adsorption force: YES
14. Pumping speed: ≥60L/MIN
15. Spin coater power: 200W
16. Pump power: 350W
17. Dimensions(Spin Coater): 210mm(W)X220mm(D)X160mm(H)
18. Weight(Spin Coater): 10KG
19. Weight(Pump): 9KG
20. Warranty: 1 year
