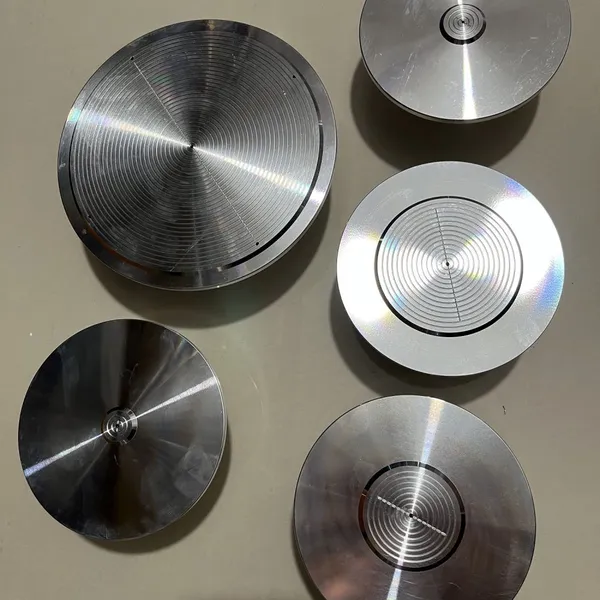

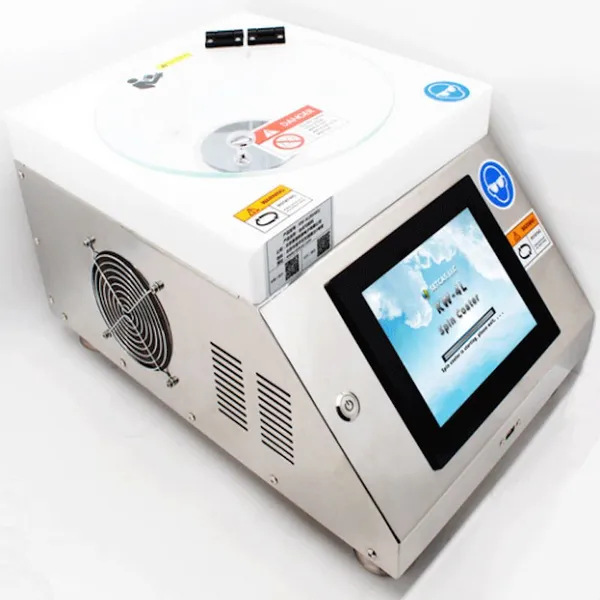

Setcas KW-4L Spin Coater With Oil-less Vacuum Pump and 3 Chucks

Setcas KW-4L Spin Coater With Oil-less Vacuum Pump and 3 Chucks thumbnail-1
Setcas KW-4L Spin Coater With Oil-less Vacuum Pump and 3 Chucks thumbnail-2
Setcas KW-4L Spin Coater With Oil-less Vacuum Pump and 3 Chucks thumbnail-3
Setcas KW-4L Spin Coater With Oil-less Vacuum Pump and 3 Chucks photo-1
Setcas KW-4L Spin Coater With Oil-less Vacuum Pump and 3 Chucks photo-2
Setcas KW-4L Spin Coater With Oil-less Vacuum Pump and 3 Chucks photo-3
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Setcas
Place of Origin:
China
Model Number:
KW-4L
Contact Supplier Request Quote Chat Now
Beijing Setcas Electronics Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing
Delivery Detail:
3 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Setcas
Place of Origin China
Model Number KW-4L
After-sales Service Provided Engineers available to service machinery overseas
Condition New

1. Substrate size: 5-200mm (standard)/5-600mm (need to be customized)（Need to contact customer service about the size of the substrate sizes）

2. Speed range: 10-12000RPM (standard)/10-20000RPM (optional)

3. Acceleration range: 10-30000RPM/S，Adjustable

4. Motor speed stability: ±1RPM

5. Spin coating uniformity: ±1%

6. Human machine interface: 8-inch touch screen

7. Communication interface: USB (standard), with RS485 communication(standard)MODBUS-RTU protocol, can be connected to wireless mouse and keyboard

8. Turn around: Can rotate forward and reverse

9. Stylus: Stylus BAMBOO resistance pen (standard)

10. Third-party options: Logitech wireless mouse/wireless keyboard/Kingston 2G disk

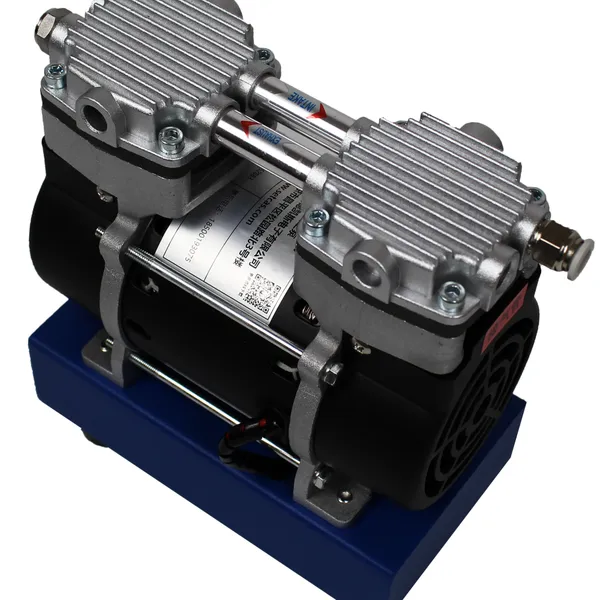

11. Vacuum Pump: SC-550V

12. Set data: Unlimited group data, each group of 15 speeds (standard)

13. Seconds per period :0-10000s

14. Storage data: Unlimited data

15. Data protection: default with power-down protection

16. Operating voltage(Spin Coater): AC100-250V, single phase, 50/60Hz

17. Operating voltage(Pump): AC220V(Standard) AC110V(Optional)

18. Pumping speed: ≥60L/MIN

19. Max vacuum: -85KPA

20. Sound Level: ≤55db

21. Spin coater power: 650W

22. Pump power: 350W

23. Dimensions(Spin Coater): 340mm(W)X500mm(D)X250mm(H)

24. Weight(Spin Coater): 18KG

25. Weight(Pump): 9KG

26. Relative humidity:

27. Ambient temperature: 0-40℃

28. Warranty: 1 year


Product Tags: spin coater , lab equipment , semiconductor
