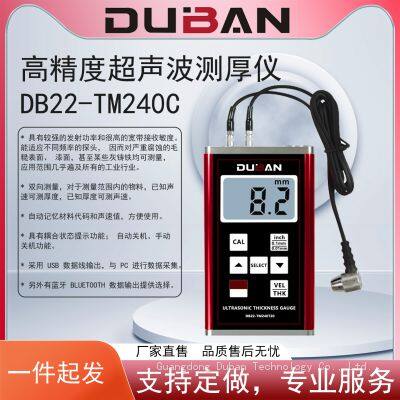

Help CenterUltrasonic Thickness Gauge DB22-TM240C
Related Products
-
【Product Descriptions】
Used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks,etc. in industries of petroleum, shipbuilding, power station, and machine manufacturing. Applicable to measure the thickness of many materials, e.g. Steel, Cast iron, Aluminum, Red copper, Brass, Zinc, Quartz glass,
Polyethylene, PVC, Gray cast iron, Nodular cast iron.
-
【Product Features】
* With high power of emission and broad band of receiving sensitivity, the gauge can match probes of different frequencies. That makes it easy to measure the rough surface, even cast iron. It is widely used in almostall kinds of industries.
* IT has bidirectional measurements, materials thickness is measurable with know velocity,Conversely velocity is measurable with know thickness.
* Automatic memory material code and sound velocity value, convenient to use.
* Coupling symbol indication when measuring.
* Manual or automatic power off.
* Applies USB, RS-232, Bluetooth data output.
-
【Product Specifications】
Housing Material Aluminum Alloy Display
Large Screen LCD
Measuring Range
0.75mm~400 mm ( 45 # steel, Depend on Probe ) Resolution
0.01 mm / 0.1 mm / 0.001 inch
Accuracy ±(0.5%n + 0.05mm), depends on materials and conditions Sound Velocity 500m/s~9,990 m/s
Lower Limit of Pipes Φ15 x 2.0 mm Φ20 x 3.0 mm Determined By Transducer
Temperature Temperature:0~40ºC Humidity: Power Supply
2x1.5V AA (UM-3) Battery Dimensions
130mmx76mmx32mm Weight 340g (Not Including Batteries) 【Product Accessories】
Standard accessories
Main Unit
Standard Probe
Coupling Agent
Carrying Case(B04) Operation Manual
Optional accessories
Other Special-purpose Probe
RS-232C Data Cable with Software Bluetooth adapter and software -
