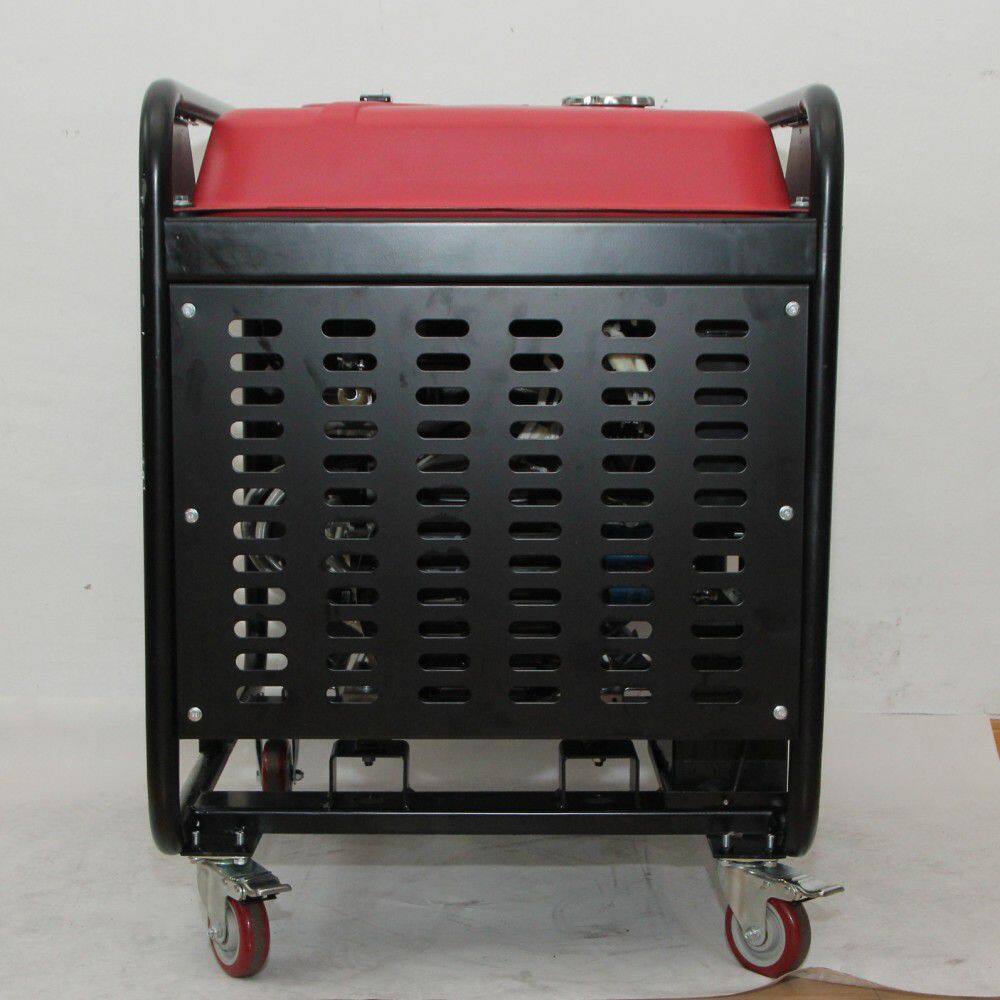

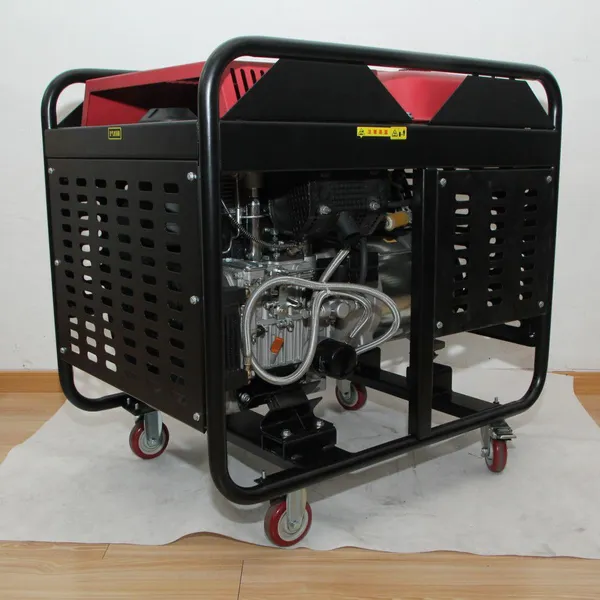

10kw Single Phase 220V Air-cooled Diesel Generator 292F Diesel Engine
US$ 1400 - 1500
MOQ: 20 Sets
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2014
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing
Delivery Detail:
20 days
Related Products
-
10kW 380V Three Phase Air-Cooled Diesel GeneratorUS$ 1430 - 1530MOQ: 20 Sets -
10kw Dual Power Air-cooled Diesel Generator 292F Diesel EngineUS$ 1460 - 1560MOQ: 20 Sets
-
9kW Single Phase 220V Water-Cooled Diesel GeneratorUS$ 1875 - 2000MOQ: 20 Sets
-
9KW Three Phase 380V Water-cooled Silent Diesel Generator, Equipped With 2V80F Diesel Engine for Industrial & Emergency Power SupplyUS$ 1920 - 2050MOQ: 20 Sets
-
9kw Dual Power Water-cooled Silent Diesel Generator 2V80F Diesel EngineUS$ 1950 - 2100MOQ: 20 Sets
| Model | DG15000LE |
| Frequency[Hz] | 50 60 |
| Voltageg[V] | 110/220.115/230.120/240 |
| Rated Power( KW) | 11 11.5 |
| Max. Power(KW) | 12 12.5 |
| Rated Output Current（A ) | 47.8 50 |
| DC Output | 12V 8.3A |
| Phase | Single phase |
| Excitation Method | Brush self-excitation |
| Power FactorΦ | 1.0(0.8) |
| Insulation Class | F |
| Fuel Tank Capaciity[L] | 35 |
| Engine Model | 292FE |
| Start Method | Electric start |
| Engine Type | 2 cylinders、Vertical、4 stroke、Air-cooled |
| Bore*Strokke[mm] | 2-92*75 |
| Displacement | 0.997 |
| Compression Ratio | 19:1 |
| Speed[rpm] | 3000 3600 |
| Power [Kw] | 14.1 15.0 |
| Oil Capacity[L] | 2.75 |
| Fuel Consumption[g/kwh] | ≤290 ≤297 |
| Fuel No. | Diesel: 0#(Sumner), -10#(Winter) Use No. 0 diesel in summer, and use No. -10 or No. -20 diesel in winter. |
| Oil No. | SAE10W30 (CD grade or above) uses CD or above grade 15W-40 oil (or SAE equivalent grade oil) |
| Optional | ATS |
| Remote Control | |
| Intelligent digital display panel | |
| Size [mm] (L*W*H) | 930*660*780 |
| Packing Size [mm] (L*W*H) | 980*710*830 |
| Net Weight/Gross Weight[Kg] | 240/255 |
