9KW Three Phase 380V Water-cooled Silent Diesel Generator, Equipped With 2V80F Diesel Engine for Industrial & Emergency Power Supply
Product Spotlights
Adopts 2V80F diesel engine, stable performance and long service life. Three phase 380V output meets industrial power demands. Water cooling system ensures excellent heat dissipation and ultra-low noise. Compact silent structure, durable and shock-resistant. Easy maintenance, low fuel consumption. Ideal for factory, construction sites and emergency power backup.
US$ 1920 - 2050
MOQ: 20 Sets
Key Specifications
Get Latest Price
Type:
Basic Diesel Generator
Warranty:
1 Year
Stroke:
Four Stroke
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing
Delivery Detail:
20 days
Related Products
-
9kw Dual Power Water-cooled Silent Diesel Generator 2V80F Diesel EngineUS$ 1950 - 2100MOQ: 20 Sets -
10kw Single Phase 220V Air-cooled Silent Diesel Generator 292F Diesel EngineUS$ 1800 - 1900MOQ: 20 Sets
-
10kW Dual Power Silent Diesel Generator 292F EngineUS$ 1900 - 2000MOQ: 20 Sets
-
2.8kw Single Phase 220V Air-cooled Silent Diesel Generator 178Fdiesel EngineUS$ 430 - 450MOQ: 20 Sets
-
4.5kw Single Phase 220V Air-cooled Silent Diesel Generator 186Fdiesel EngineUS$ 500 - 550MOQ: 20 Sets
Type
Basic Diesel Generator
Warranty
1 Year
Stroke
Four Stroke
Usage
Common Units
Speed
HSS
Cooling Method
Water Cooling
After-sales Service
Send parts with next order
Installation Method
Portable
Excitation Mode
Other, Self-excited
Conditions of Use
Land Use
Landuse Type of Unit
Low Noise
Output Type
AC Three Phase
Voltage
380V, Support customized service
Engine
2V80F diesel engine
Alternator
Senci 100% Copper Alternator
Transport Package
Wooden case
Specification
DG12KSE-3
Trademark
Belon Power
Origin
Chongqing, China
9KW Three Phase 380V Water-cooled Silent Diesel Generator,
Equipped with 2V80F Diesel Engine for Industrial & Emergency Power Supply
| Model | DG12KSE-3 |
| Frequency[Hz] | 50 60 |
| Voltageg[V] | 220/380.230/400.240/415 |
| Rated Power( KW) | 9 9.5 |
| Max. Power(KW) | 10 10.5 |
| Rated Output Current（A ) | 13 13.7 |
| DC Output | 12V 8.3A |
| Phase | Three phase |
| Excitation Method | Brush self-excitation |
| Power FactorΦ | 1.0(0.8) |
| Insulation Class | F |
| Fuel Tank Capaciity[L] | 25 |
| Engine Model | 2V80 |
| Start Method | Electric Start |
| Engine Type | two cylinders,V-type,water-cooled, vertical |
| Bore*Strokke[mm] | 2-80 * 79 |
| Displacement | 0.794 |
| Compression Ratio | 23 ; 1 |
| Speed[rpm] | 3000 3600 |
| Power [Kw] | 12 13 |
| Oil Capacity[L] | 2.2 |
| Fuel Consumption[g/kwh] | ≤290 ≤297 |
| Fuel No. | Diesel: 0#(Sumner), -10#(Winter) Use No. 0 diesel in summer, and use No. -10 or No. -20 diesel in winter. |
| Oil No. | SAE10W30 (CD grade or above) uses CD or above grade 15W-40 oil (or SAE equivalent grade oil) |
| Optional | ATS |
| Remote Control | |

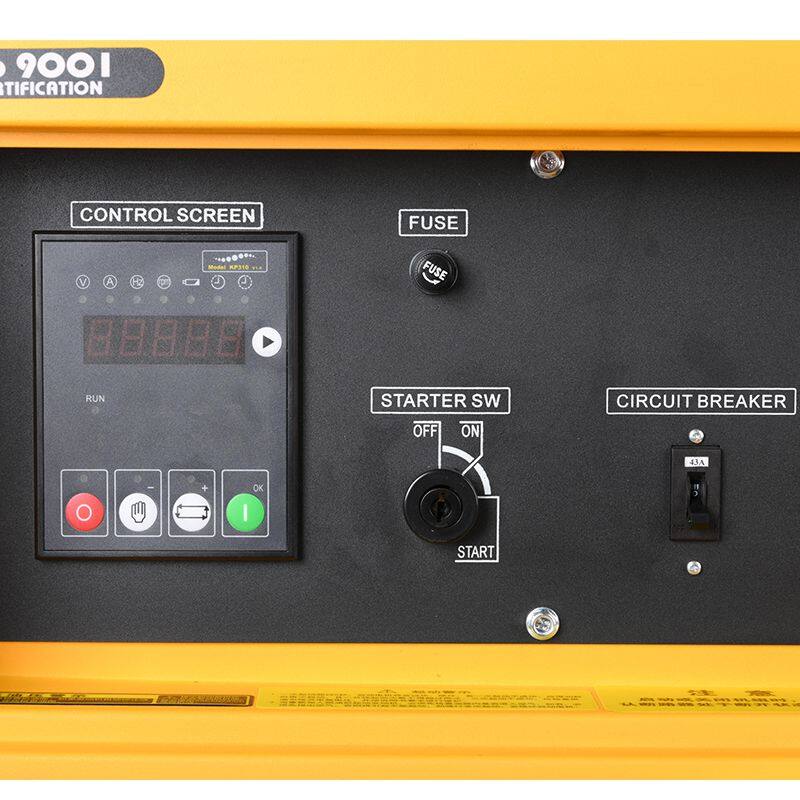

| Intelligent digital display panel | |
| Size [mm] (L*W*H) | 1400*650*820 |
| Packing Size [mm] (L*W*H) | 1500*750*920 |
| Net Weight/Gross Weight[Kg] | 310/330 |
