Home > Products > Diesel Generator > 4.5kw Single Phase 220V Air-cooled Silent Diesel Generator 186Fdiesel Engine

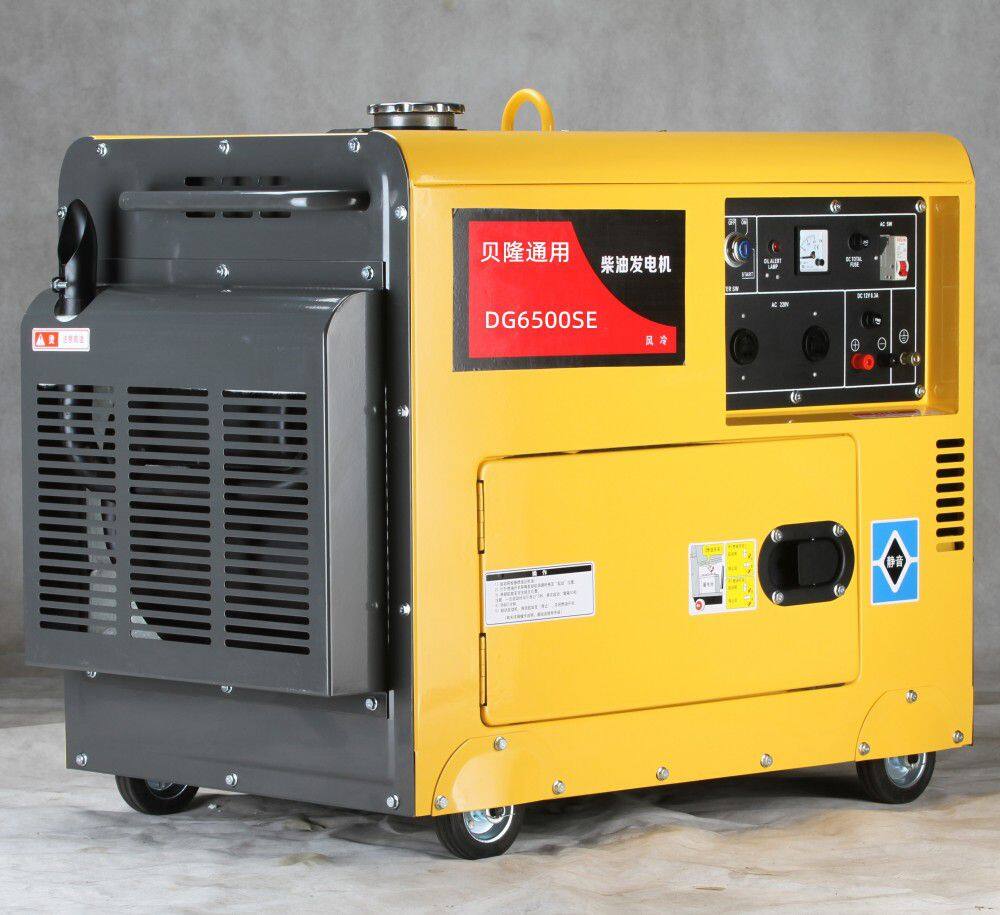

4.5kw Single Phase 220V Air-cooled Silent Diesel Generator 186Fdiesel Engine

Name: 4.5kw Single Phase 220V Air-cooled Silent Diesel Generator 186Fdiesel Engine
Availability: InStock

FOB Price

US$ 500 - 550 / Set

20 Sets(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Model	DG6500SE
Frequency[Hz]	50 60
Voltageg[V]	110/220.115/230.120/240
Voltageg[V]	110/220.115/230.120/240
Rated Power( KW)	4.5 5.0
Max. Power(KW)	5 5.5
Rated Output Current（A )	19.5 22
DC Output	12V 8.3A
Phase	Single phase
Excitation Method	Brush self-excitation
Power FactorΦ	1.0(0.8)
Insulation Class	F
Fuel Tank Capaciity[L]	12.5
Engine Model	186FA
Start Method	Electric start
Engine Type	Single cylinder,4 stroke,air-cooled, vertical
Bore*Strokke[mm]	86*72
Displacement	0.418L
Compression Ratio	19.5：1
Speed[rpm]	3000 3600
Power [Kw]	5.8 6.6
Oil Capacity[L]	1.65
Fuel Consumption[g/kwh]	≤275 ≤280
Fuel No.	Diesel: 0#(Sumner), -10#(Winter) Use No. 0 diesel in summer, and use No. -10 or No. -20 diesel in winter.
Oil No.	SAE10W30 (CD grade or above) uses CD or above grade 15W-40 oil (or SAE equivalent grade oil)
Optional	ATS
	Remote Control
	Intelligent digital display panel
Size [mm] (LWH)	910525680
Packing Size [mm] (LWH)	940540805
Net Weight/Gross Weight[Kg]	145.2/152
