Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > 4.5kw Three Phase 380V Air-cooled Silent Diesel Generator 186F Diesel Engine

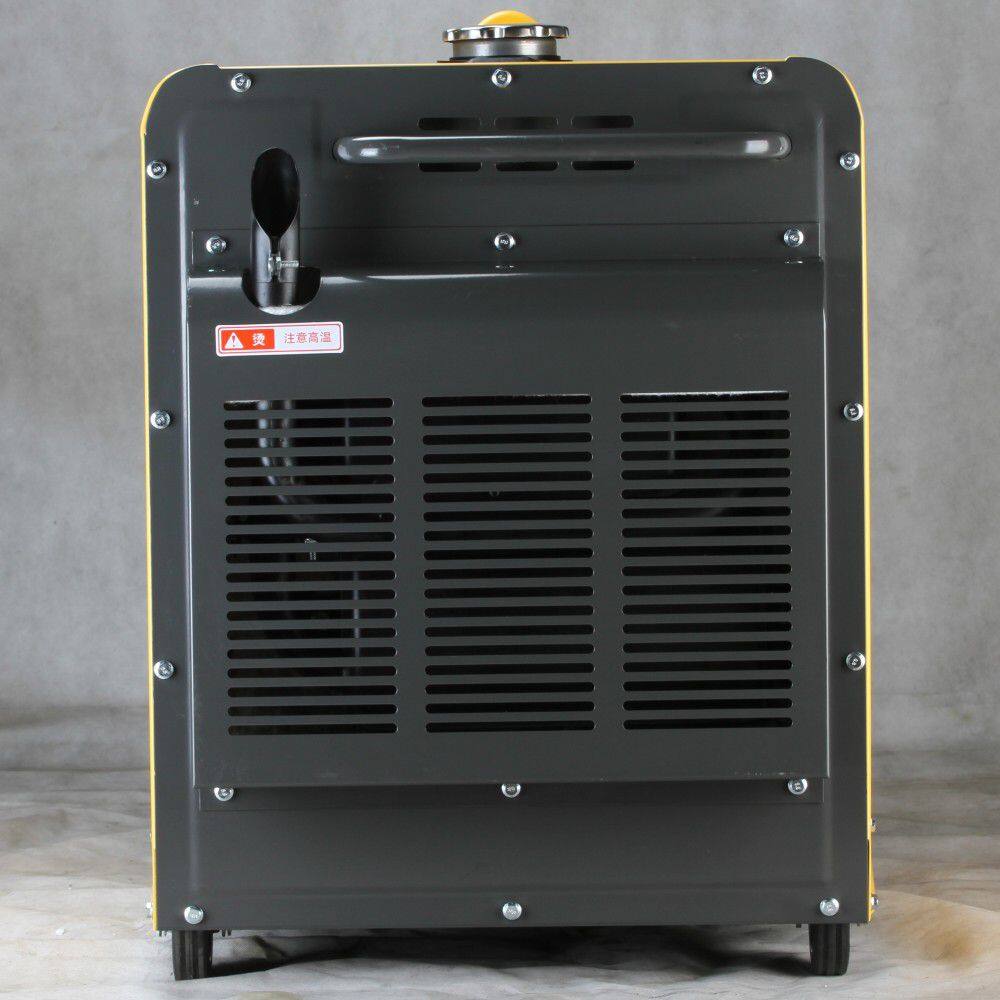

4.5kw Three Phase 380V Air-cooled Silent Diesel Generator 186F Diesel Engine
US$ 510 - 560
MOQ: 20 Sets
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2014
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing
Delivery Detail:
20 days
Related Products
-
4.5kw Dual Power Air-cooled Silent Diesel Generator 5kw Dual Voltage Low Noise Diesel GeneratorUS$ 530 - 580MOQ: 20 Sets -
5kw Single Phase 220V Air-cooled Silent Diesel Generator 188Fdiesel EngineUS$ 510 - 560MOQ: 20 Sets
-
5kw Three Phase 380V Air-cooled Silent Diesel Generator 188F Diesel EngineUS$ 540 - 590MOQ: 20 Sets
-
5kw Dual Power Air-cooled Silent Diesel Generator 5kw Dual Voltage Low Noise Diesel GeneratorUS$ 550 - 600MOQ: 20 Sets
-
6kw Single Phase 220V Air-cooled Silent Diesel Generator 192Fdiesel EngineUS$ 560 - 610MOQ: 20 Sets
| Model | DG6500SE-3 |
| Frequency[Hz] | 50 60 |
| Voltageg[V] | 220/380.230/400.240/415 |
| Rated Power( KW) | 4.5 5.0 |
| Max. Power(KW) | 4.5 5.0 |
| Rated Output Current（A ) | 6.5 7.2 |
| DC Output | 12V 8.3A |
| Phase | Three phase |
| Excitation Method | Brush self-excitation |
| Power FactorΦ | 1.0(0.8) |
| Insulation Class | F |
| Fuel Tank Capaciity[L] | 12.5 |
| Engine Model | 186FA |
| Start Method | Electric start |
| Engine Type | Single cylinder,4 stroke,air-cooled, vertical |
| Bore*Strokke[mm] | 86*72 |
| Displacement | 0.418L |
| Compression Ratio | 19.5：1 |
| Speed[rpm] | 3000 3600 |
| Power [Kw] | 5.8 6.6 |
| Oil Capacity[L] | 1.65 |
| Fuel Consumption[g/kwh] | ≤275 ≤280 |
| Fuel No. | Diesel: 0#(Sumner), -10#(Winter) Use No. 0 diesel in summer, and use No. -10 or No. -20 diesel in winter. |
| Oil No. | SAE10W30 (CD grade or above) uses CD or above grade 15W-40 oil (or SAE equivalent grade oil) |
| Optional | ATS |
| Remote Control | |
| Intelligent digital display panel | |
| Size [mm] (L*W*H) | 910*525*680 |
| Packing Size [mm] (L*W*H) | 940*540*805 |
| Net Weight/Gross Weight[Kg] | 145.2/152 |
