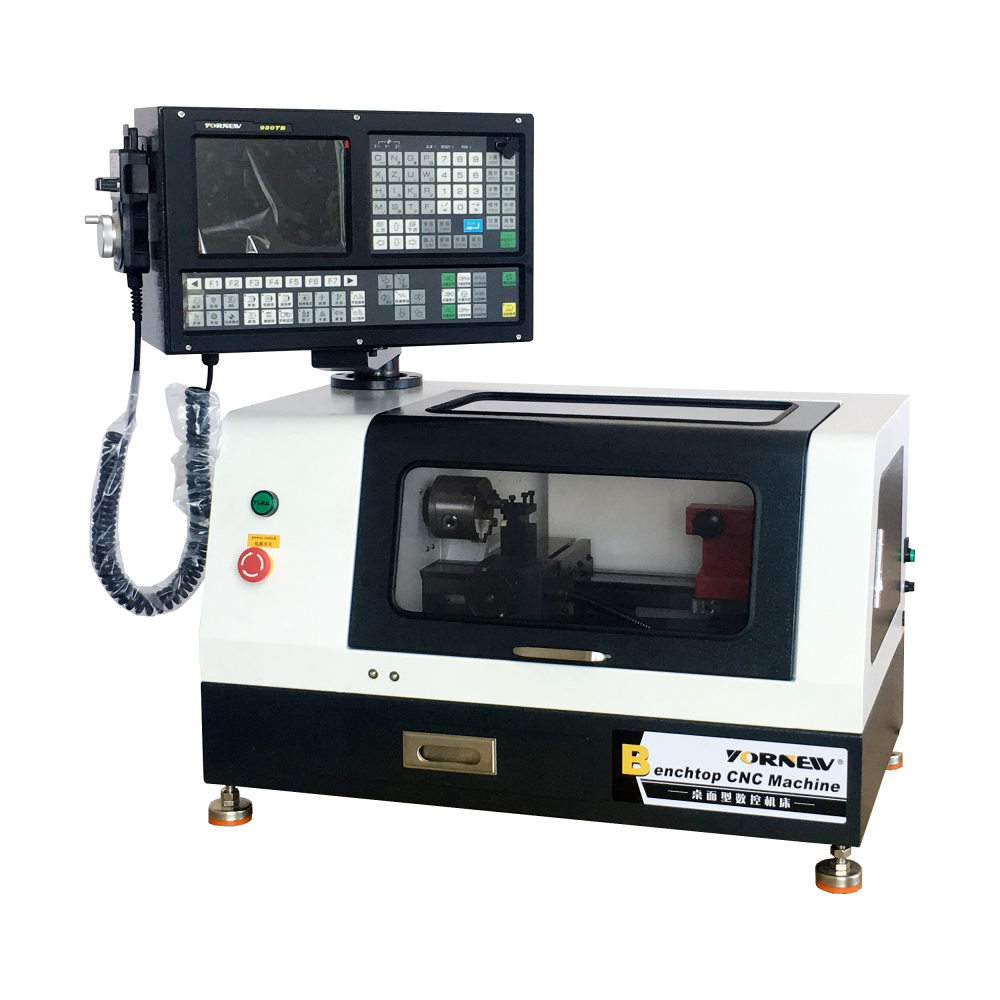

YORNEW Desktop CNC Lathe Machine, Education Cnc, Vocation Cnc, Hobby Cnc, Diy Cnc

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port shenzhen
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Yornew		Place of Origin	China
Model Number	CK140

Product Description

Features

(1).Automatic 4 positions tool post.

(2).KY 980Tc Turning CNC System, Optional GSK 980Tb or Mach3

(3).ARM 9 CPU+FPGA,Support B macro function,PLC function,Mutil-language library function.

(4).Lathe CNC machine tools based entirely on the design and manufacture, reflects the structural integrity of facilitate future design ideas.

(5). The standard spec includes MPG hand wheel.

(6). USB and RS232 port,

(7). Control speed of G code.

(8). Selection of high -quality casting materials, more compact.

(9). A collection of double-nut ball screw, bearings and couplings with high precision positioning, while adding an automatic oil lubrication system, to protect your machine precision, extended service life.

(10). 220VAC or 110VAC single-phase AC power supply.

(11). Safety electrical components of high quality.

(12). Auto power off when door open.

(13). Applicable industry: technology development, advertising design, art, vocational technical college Education & Training CNC and DIY enthusiasts.

Technical parameters
Turning diameter over bed(max)	140mm
Travel across slide	75mm
Chuck diameter	80mm
Spindle speed	100-2000r/min(control speed of G code)
Spindle through-hole	11mm
Spindle mount	MT2
Spindle motor power	150W
X travel	70mm
Z travel	160mm
The max moving speed	2000mm/min
The max feeding speed	1000mm/min
Control system	KY 980 Turning CNC System
Instruction	Run ISO G code
Tool position	4
Tool dimension	8×8mm
Tailstock taper	MT1
Tailstock sleeve diameter	20mm
Travel of tailstock	25mm
Positioning accuracy	0.02mm
Repeatability accuracy	0.02mm
Power	220VAC / 110VAC
Weight(NW/GW)	80/100KG
Overall dimension	750450800mm
Packing size	850550950mm
