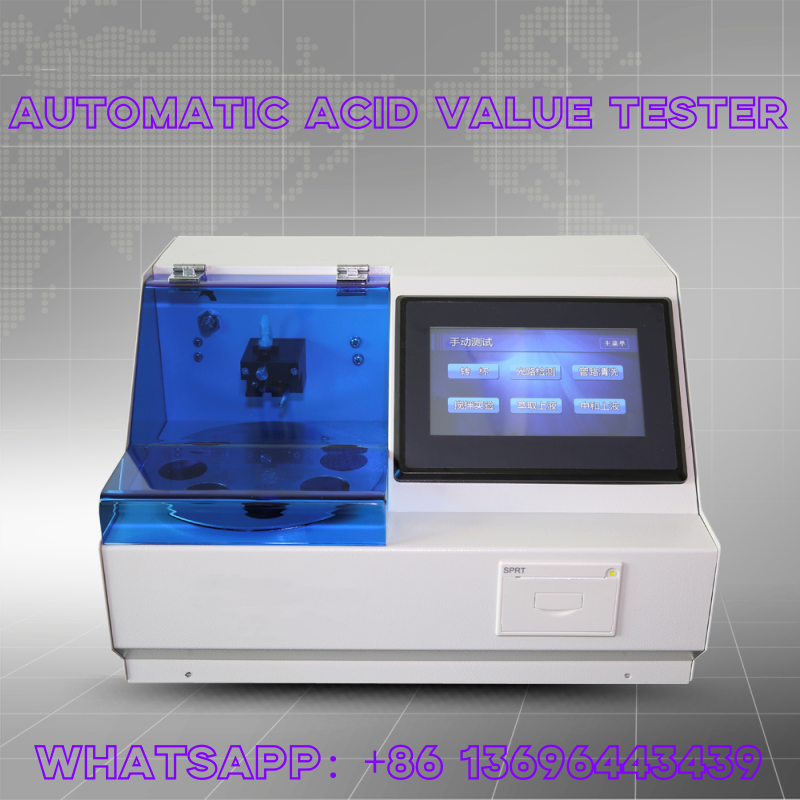

JSSC-300 Automatic Oil Acid Number Tester is used to test the acid number in the transformer oil, turbine oil, and resistance oil. The instrument adopts microcomputer control, integration of electrical, optical, mechanical and chemical automatic design, which entirely replace the manual operation, improve work efficiency, reduce the labor intensity of the workers, minimize the harm of human body from organic solvents and chemicals. Also, the instrument has the character of simple operation, easy to usage, strong anti-interference ability, stable and reliable performance, which can meet the needs of refineries, power plants and scientific research units. So, it is one necessary equipment to analyze the oil and test the quality.
Test cup: 6 cups
Range: 0.0001～0.9999 mg KOH/g
Resolution: 0.0001 mg KOH/g
Accuracy:
When the acid number
When the acid number ≥ 0.1, ±0.01 mg KOH/g
Repeatability: 0.01 mg KOH/g
Measuring method: Neutralization method
Display: 800x480 solution, 7” touch screen
Printing: Build-in micro thermal printer, manual and automatic print is optional.
Storage: 1000 records can be saved, and all records can be checked, printed and exported by testing date.
Constant temperature: When the temperature control setting function is enabled, the temperature inside the instrument is kept constant to 30℃.
Communication: USB and Ethernet interface (standard) can access to LIMS through Ethernet. RS232 serial interface is optional and can access to LIMS.
Power supply: AC(170～264)V, Frequency (50～60)Hz
Power consumption: ≤50W
Overall dimension: L415mm×W330mm×H270mm
Weight: 15kg
