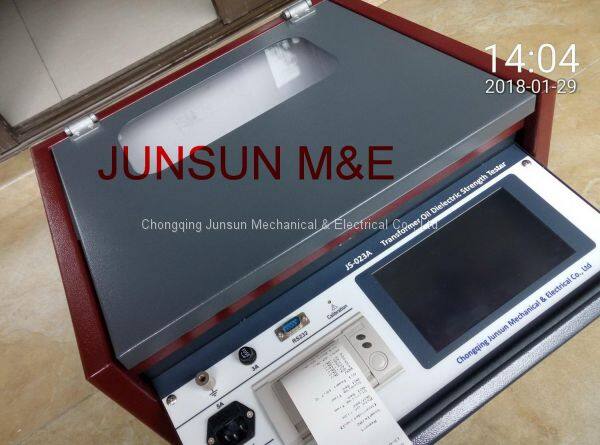

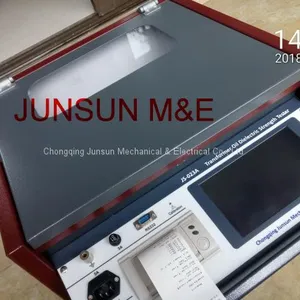

Help CenterFully Automatic Touch Screen Dielectric Oil Breakdown Voltage Tester, Transformer Oil BDV Test Kit
Related Products
-
High Quality Fully Automatic Insulating Oil Breakdown Voltage Tester, Dielectric Oil Dielectric Strength TesterUS$ 1500 - 3500MOQ: 1 Set -
Dielectric Oil BDV Tester, Three Cups Dielectric Rigidity Breakdown Voltage Testing Kit for Transformer OilUS$ 1500 - 3500MOQ: 1 Set
-
Fully Automatic IEC 60156 Insulating Liquids Breakdown Voltage/ BDV/ Dielectric Strength Rigidity TesterUS$ 1500 - 3500MOQ: 1 Set
-
Best Selling Transformer Oil Breakdown Voltage Dielectric Strength BDV Analyzer Insulating Oil TesterUS$ 1500 - 3500MOQ: 1 Set
-
BDV Tester Portable Transformer Oil Bdv Tester Insulation Oil Dielectric Strength Meter 100kVUS$ 1500 - 3500MOQ: 1 Set
Why buy from us?
1. We are one of the largest manufacturers & exporters of oil purifier inChina
2. We have more than 10 years export experience
3. We offer our customers high quality products at competitive price
4. We offer our customers excellent after-sales service
5. We are not satisfied until our customers are satisfied!
KEY FEATURES:
1. JSBV-502 provides all the mainstream testing standard, such as IEC-60156, IS6792, BS5874, ASTM D-877, ASTM D-1816, no matter where you are, there always has a suitable standard for you.
2. 7 inches colorful LCD touch screen.
3. All the selection can be finished on touch screen.
4. Oil temperature measurement.
5. RS232 interface.
TECHNICAL INDEX
1. Voltage OEM for clients
2. AC220V±10% power supply input, or OEM for clients
3. Output voltage: 0 – 100KV
4. Rate of voltage rise: 0.5kv/s±10%, 2kv/s±5%, 3kv/s±5%, 5kv/s±5%
5. Max test times: 9
6. Init wait times: 0 - 999s
7. Stir time: 0 - 999s
8. Wait time: 0 - 999s
9. Measurement accuracy: ± (1% of full scale + 2 digits) Resolution: 0.1KV
10. Temperature measurement:
11. Measurement range: 0°C to 70°C, or better
12. Temperature resolution: 1°C, or better
13. Operating temperature: up to 45°C
14. Storage: 100 groups
15. 7 inch colorful LCD with touch pad
16. Oil test vessel temperature measurement unit
17. All the selection can be done by touch panel with color LCD screen.
