Home > Instruments & Meters > Test Instrument > Test Machine > KKSD-3011 Series Automatic Cleveland Open Cup Flash Point Tester

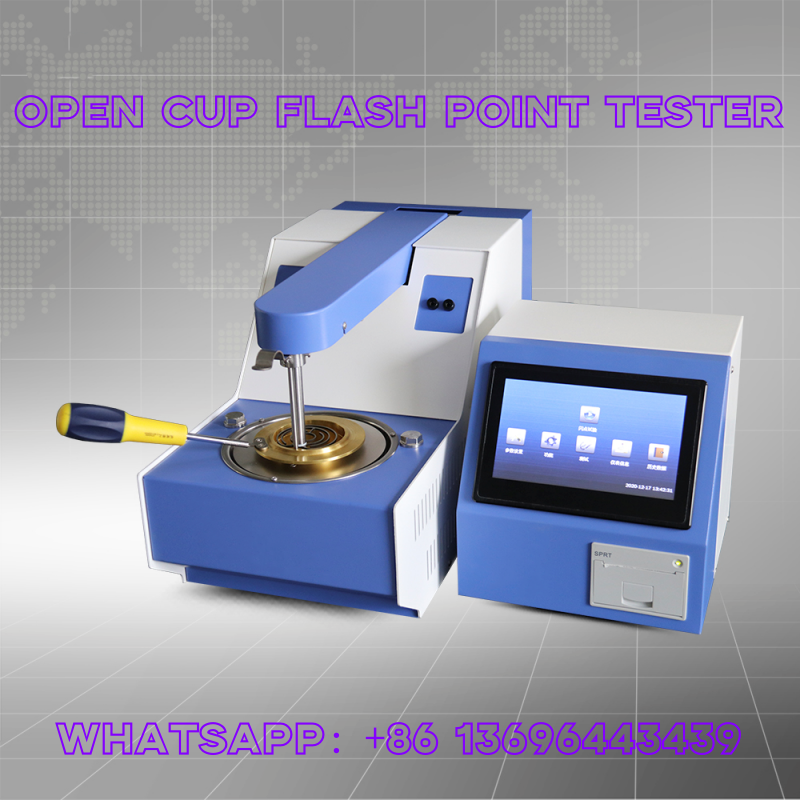

KKSD-3011 Series Automatic Cleveland Open Cup Flash Point Tester

KKSD-3011 Series Automatic Cleveland Open Cup Flash Point Tester thumbnail-1
KKSD-3011 Series Automatic Cleveland Open Cup Flash Point Tester photo-1
US$ 1999 - 2999 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
JUNSUN
Place of Origin:
China
Model Number:
KKSD-3011
Contact Supplier Request Quote Chat Now
Chongqing Junsun Mechanical & Electrical Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Deliver to any designated port
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name JUNSUN
Place of Origin China
Model Number KKSD-3011
Power Electronic
Usage Universal Testing Machine

Key Features

◆ Adopted 7" 640*480 colorful LCD Touch-screen, Chinese and English version are available, with the guiding menu, easy-operating character.

◆ Simulation tracing and showing the function curve for the temperature rising and testing time, with the wrong operation prompting and change function.

◆ When the temperature is higher than the pre-set value, heating will be stop automatically. The gas will be cut automatically when the measuring is over.

◆ The igniting system adopts the new type of silicon nitride igniter, which is almost similar to the open flame, has he character of reliable repeatability, long operating life.

◆ The gas ignition is optional, which can ignite automatically without the artificial ignition.

◆ With safety function of self-inspection、diagnose、failure warning.

◆ Built-in air pressure sensor, pressure can correct automatically, no need to set the air pressure value.

◆ The local area network data can be transmitted and hardware can be upgraded through RJ45 connector.

◆ Upgrading software and exporting data can be done through the USB connector.

◆ 1000 measuring records can be saved, and if needed, all records can be checked and printed.


Technical Specifications

1. Range: ambient temperature～400℃;

2. Accuracy: Flash point≤110℃: ±1℃

                  Flash point>110℃: ±2℃

3. Repeatability: Flash point≤110℃: 2℃

                        Flash point>110℃: 4℃

4. Power consumption: ≤300W

5. Reproducibility: ≤10℃

6. Resolution: 0.1℃;

7. Temperature up rate: Step A, 5-6(℃/min)

                                  Step B 1.0～1.5(℃/min)

8. Ignition type: Automatic electronic ignition, Automatic gas ignition (Optional).

9. Cooling type: Forced cooling.

10. Printing function: Built-in micro thermal printer, manual and automatic print is optional.

11. 1000 measuring records can be saved, and if needed, all records can be checked and printed.

12. Communication function: the digital communication port is optional, which can send test results to LIMS automatically.

13. Power supply:  1) AC(170～264) V, 50/60Hz

                           2) AC(120±10%) V, (60±1) Hz(Pls specify before ordering)

14. Overall dimension & weight: Controlling part: L270mm×W170mm×H130mm, 2.0kg.

                                                    Testing part: L480mm×W245mm×H280mm, 18.0kg.


Product Tags: Flash Point Tester , Open Cup Flash Point Tester , Closed Cup Flash Point Tester
