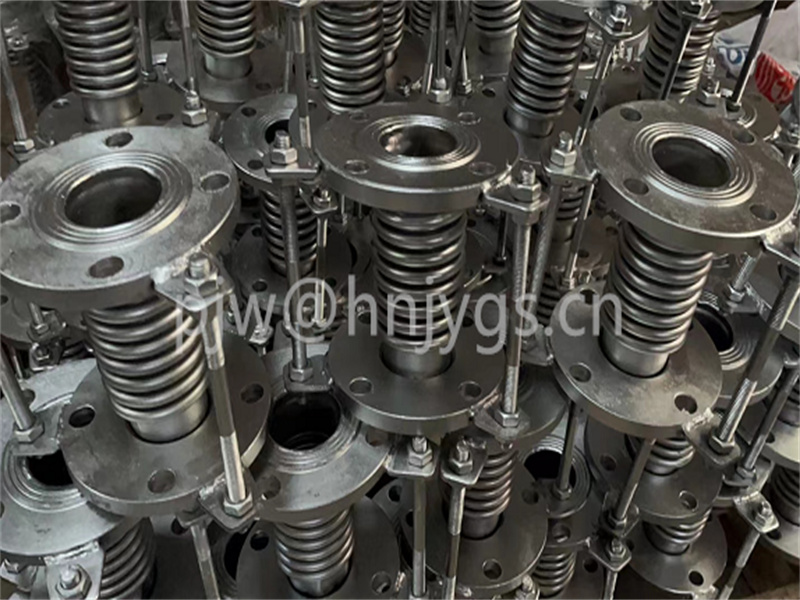

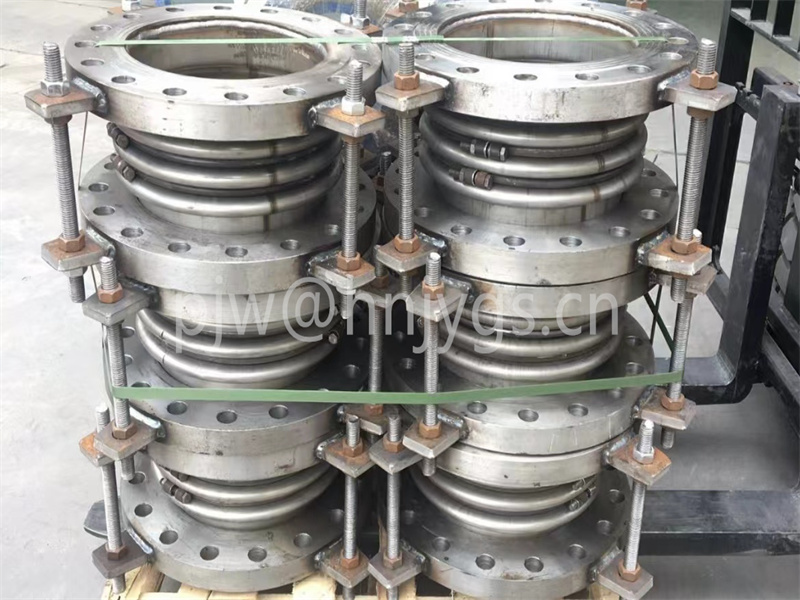

Pipeline Metallic Single Bellows Expansion Joint

Metal bellows expansion joint adopts EJMA standard optimization design, axial internal pressure type ripple compensator is also commonly called shock-absorbing ripple compensator, bellows, expansion joint, or expansion joint. It is composed of a corrugated pipe (an elastic element) and an end pipe, a support, a flange, a conduit and other accessories.

The axial internal pressure type ripple compensator belongs to a compensation element. The effective expansion and deformation of the working body of the bellows is used to absorb the dimensional changes of pipelines, conduits, containers, etc. caused by thermal expansion and cold contraction, or to compensate the axial, lateral and angular displacement of pipelines, conduits, containers, etc. It can also be used to reduce noise and vibration. It is widely used in modern industry.

Axial internal pressure type ripple compensator is also called expansion device, expansion joint, ripple compensator. The compensator is divided into: corrugated compensator, sleeve compensator, rotary compensator, square natural compensator and other types, among which the corrugated compensator is more commonly used, mainly to ensure the safe operation of the pipeline, with the following functions:

1. Compensation absorption pipe axial, lateral, angular heat deformation.

2. Corrugated compensator expansion, convenient valve pipe installation and disassembly.

3. Absorb equipment vibration to reduce the impact of equipment vibration on the pipeline.

4. Absorb the deformation of the pipeline caused by earthquake and subsidence.

The expansion joint is composed of a corrugated pipe and a structure, which is mainly used to absorb axial displacement and less transverse and angular displacement, has simple structure and low cost, and is also known as a universal compensator.

Product name: Axial internal pressure bellows expansion joint

Nominal diameter: DN15 ~ DN5000 (mm)

Working pressure: 0.25 ~ 4.0 (Mpa)

Design temperature: -20℃ ~ 450℃

Material: SUS304, SUS321, SUS316L, SUS309, SUS310S

Implementation standard: GB/T12777-2008 standard

Connection mode: directional flange, looping flange, nozzle connection, etc

About us

Henan Jingyuan Water Supply Equipment Co., Ltd. produces all kinds of special acid and alkali resistance, high temperature resistance, high pressure resistance, negative pressure resistance, oil resistance and other materials rubber joints. American standard, Russian standard, German standard, British standard, Japanese standard, Korean standard and other rubber joints. There are also double flanged force transfer joint, expansion joint, large deflection loose sleeve compensation joint, flanged spherical joint, corrugated expansion joint, thermal sleeve compensator, flexible, rigid waterproof sleeve, V-type connector, steel flexible clamp joint, stainless steel round and rectangular corrugated compensator, smoke duct rubber, fiber fabric compensator. The company's products are widely used in petroleum, chemical industry, steel, metallurgy, machinery, transportation, shipbuilding, wharf, construction, paper making, textile, electric power heating network, pharmaceutical, water supply, drainage, electric power, metallurgy, urban construction, chemical environmental protection and other industries.

The company produces caliber DN15-DN4000 (1/2'-160'), rubber materials mainly include NR, EPDM, NBR, NEOPRENE, etc., metal materials mainly include Q235, Q345, SS304, SS316 and so on. Metal bellows expansion joint GB/T12777-2008, metal hoses GB/T14525-1993 technical standard. The product has the characteristics of high temperature resistance, high pressure resistance, corrosion resistance, fatigue resistance, wear resistance, high safety, etc. The product manufacturing technology is exquisite, the structure is novel and easy to install.

The company's products have been widely used in water supply, heating, power, chemical, gas, metallurgy, thermal power, environmental protection and other pipeline industry projects. The company has cooperated with hundreds of enterprises at home and abroad, and its products are exported to the United States, Britain, Germany, South Korea, Vietnam, Japan, Singapore, Spain and other parts of the world.

Jingyuan water supply continues to adhere to the "unity, hard work, pragmatic, efficient" spirit of enterprise, to provide customers with better products and services.
