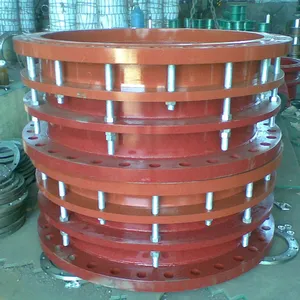

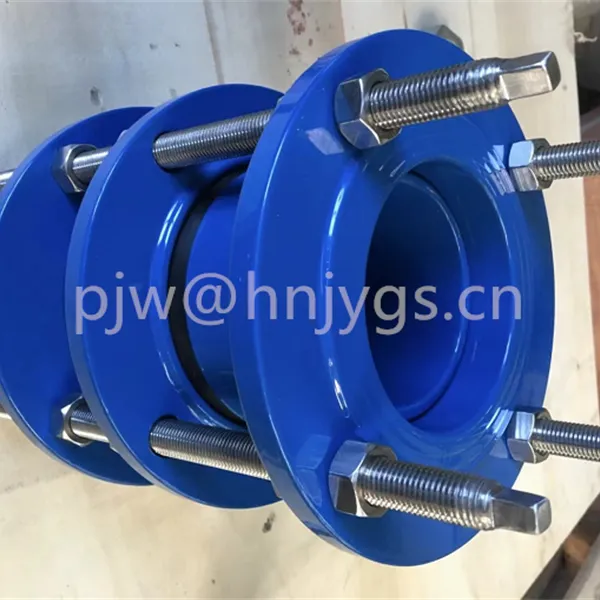

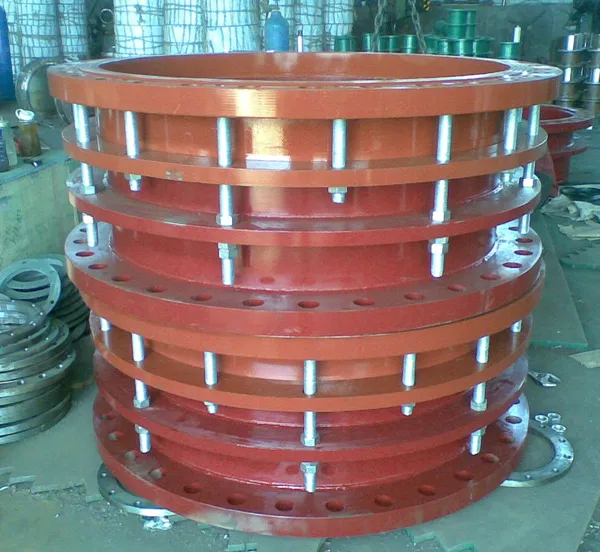

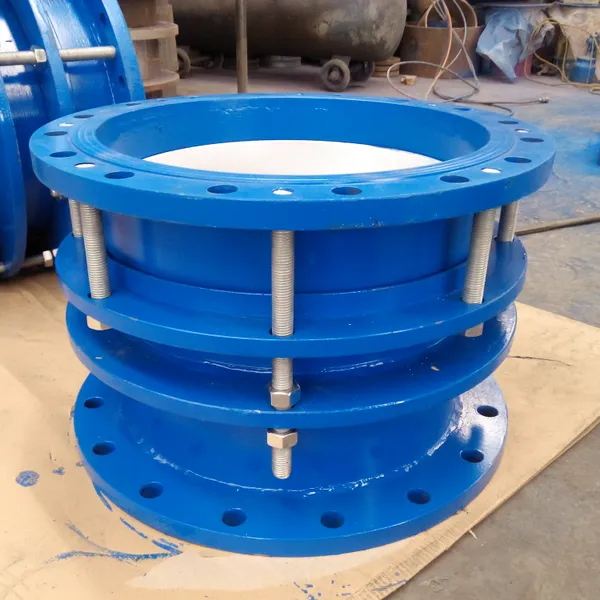

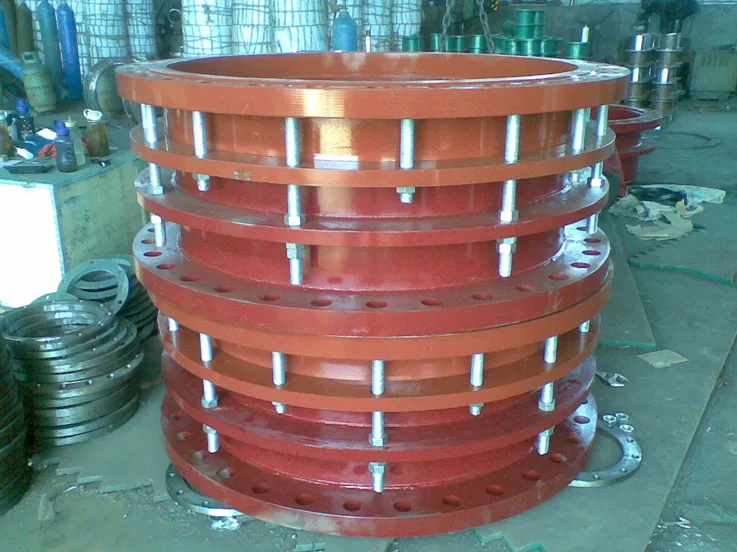

The double-flanged loose limit expansion joint is suitable for conveying seawater, fresh water, hot and cold water, drinking water, domestic sewage, crude oil, fuel oil, lubricating oil, refined oil, air, gas, steam and granular powder with temperature not higher than 250 degrees and other media.
Double flanged loose sleeve limit expansion joint function description:
The connection mode of the flange on both sides of the double-flanged loose limit expansion joint pipe can be connected with the valve when installed on the pipe, which not only compensates the expansion amount of the pipe but also provides convenience for the maintenance of the valve. B2F type double flanged loose limit expansion joint is suitable for connecting both sides with flanges, adjusting the connection length between the two ends of the product and the flange during installation, tightening the gland bolt evenly in turn, and then adjusting the limit nut, so that the pipeline can be freely expanded within the expansion range, locking the expansion amount, and ensuring the safe operation of the pipeline.
In operation, the reverse axial thrust can be transmitted to the entire pipeline. It can reduce the pressure thrust (blind plate force) of the connected part and compensate the installation error of the pipeline. The double flanged force transfer joint cannot absorb the axial displacement. The double flange force transfer joint is mainly used for the connection of the loose sleeve connection of the turning pipe of the pump, valve and other accessories.
During installation, adjust the installation length of both ends of the product and the flange, tighten the gland bolt evenly diagonally, so that it becomes a whole, and has a certain displacement, convenient installation and maintenance, according to the site size adjustment. In operation, the reverse axial thrust can be transmitted to the entire pipeline. It can reduce the pressure thrust (blind plate force) of the connected part and compensate the installation error of the pipeline. The double flanged force transfer joint cannot absorb the axial displacement. The double flange force transfer joint is mainly used for the connection of the loose sleeve connection of the turning pipe of the pump, valve and other accessories.
Henan Jingyuan Water Supply Equipment Co., Ltd. produces all kinds of special acid and alkali resistance, high temperature resistance, high pressure resistance, negative pressure resistance, oil resistance and other materials rubber joints. American standard, Russian standard, German standard, British standard, Japanese standard, Korean standard and other rubber joints. There are also double flanged force transfer joint, expansion joint, large deflection loose sleeve compensation joint, flanged spherical joint, corrugated expansion joint, thermal sleeve compensator, flexible, rigid waterproof sleeve, V-type connector, steel flexible clamp joint, stainless steel round and rectangular corrugated compensator, smoke duct rubber, fiber fabric compensator. The company's products are widely used in petroleum, chemical industry, steel, metallurgy, machinery, transportation, shipbuilding, wharf, construction, paper making, textile, electric power heating network, pharmaceutical, water supply, drainage, electric power, metallurgy, urban construction, chemical environmental protection and other industries.
The company produces caliber DN15-DN4000 (1/2'-160'), rubber materials mainly include NR, EPDM, NBR, NEOPRENE, etc., metal materials mainly include Q235, Q345, SS304, SS316 and so on. Metal bellows expansion joint GB/T12777-2008, metal hoses GB/T14525-1993 technical standard. The product has the characteristics of high temperature resistance, high pressure resistance, corrosion resistance, fatigue resistance, wear resistance, high safety, etc. The product manufacturing technology is exquisite, the structure is novel and easy to install.
The company's products have been widely used in water supply, heating, power, chemical, gas, metallurgy, thermal power, environmental protection and other pipeline industry projects. The company has cooperated with hundreds of enterprises at home and abroad, and its products are exported to the United States, Britain, Germany, South Korea, Vietnam, Japan, Singapore, Spain and other parts of the world.
Jingyuan water supply continues to adhere to the "unity, hard work, pragmatic, efficient" spirit of enterprise, to provide customers with better products and services.

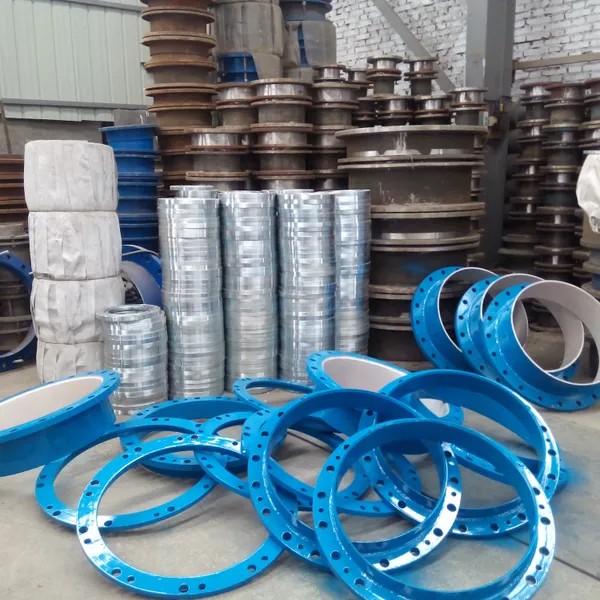

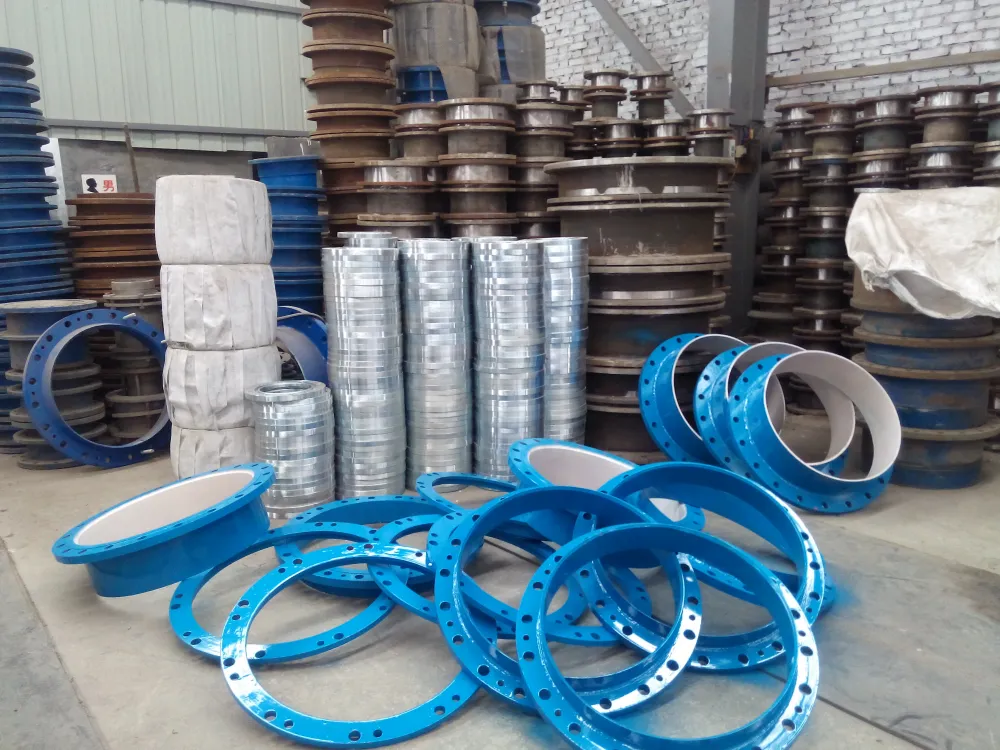

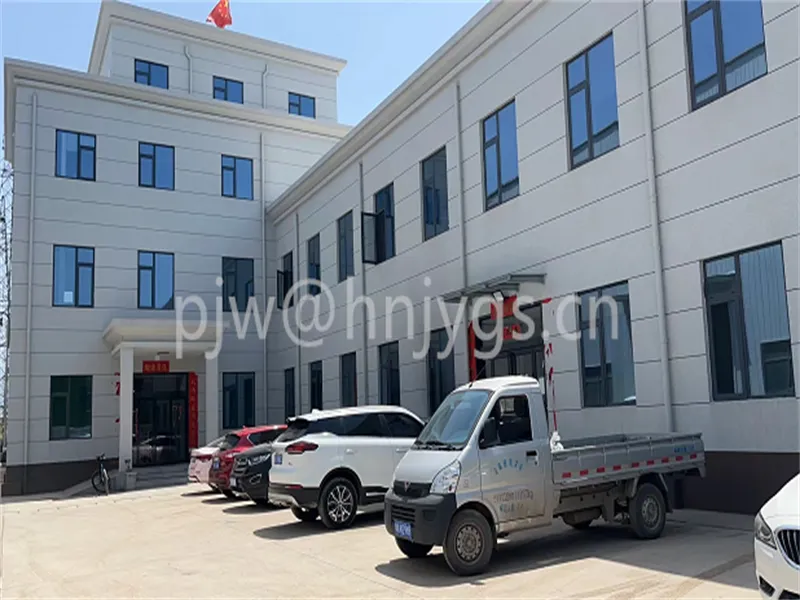

Factory display
