Product Description:
Title: High-Performance Metallic Expansion Joint for Bridge and Highway Infrastructure
Introduction:Our Metallic Expansion Joint is an engineering marvel designed to accommodate the thermal expansion and contraction of bridges and highways, ensuring structural integrity and longevity. Made in China, it is renowned for its exceptional quality and durability, making it a preferred choice for global infrastructure projects.
Key Features:
Durability and Strength: Constructed from high-grade stainless steel and other advanced alloys, our expansion joints are built to withstand harsh weather conditions and heavy traffic loads.
Seamless Integration: Designed to integrate seamlessly with various bridge and highway materials, ensuring a smooth transition and reducing the risk of damage.
Customizability: Available in a range of sizes and configurations to suit the specific requirements of different bridge and highway projects.
Low Maintenance: The robust construction and high-quality materials used in our expansion joints require minimal maintenance, reducing long-term operational costs.
Eco-Friendly: Our manufacturing process adheres to strict environmental standards, ensuring that our products contribute to sustainable infrastructure development.
Technical Specifications:
Material: Stainless steel, high-strength alloys
Load Capacity: Designed for heavy-duty applications, accommodating loads up to 80 tons
Temperature Range: Capable of withstanding temperatures from -40°C to 80°C
Sealing System: Advanced sealing technology to prevent water and debris ingress
Installation: Quick and easy installation process with minimal disruption to traffic
Applications:
Suitable for a wide range of bridge and highway structures, including:
Long-span bridges
Highway overpasses
Elevated highways
Interchanges
Installation and Maintenance:
Installation: Our expansion joints are designed for quick and easy installation, minimizing disruption to traffic flow. Detailed installation guides and technical support are provided.
Maintenance: Due to the high-quality materials used, our expansion joints require minimal maintenance. However, regular inspections are recommended to ensure optimal performance and longevity.
Quality Assurance:
Each expansion joint undergoes rigorous quality control checks at every stage of production.
We adhere to international quality standards, including ISO 9001, ensuring that our products meet the highest industry benchmarks.
Customer Support:
Our dedicated customer support team is available to assist with any inquiries or issues that may arise, providing a seamless customer experience.
Conclusion:Investing in our Metallic Expansion Joints ensures that your bridge and highway infrastructure projects benefit from superior quality, durability, and performance. Made with precision in China, these expansion joints are the epitome of innovation and reliability in the field of civil engineering.

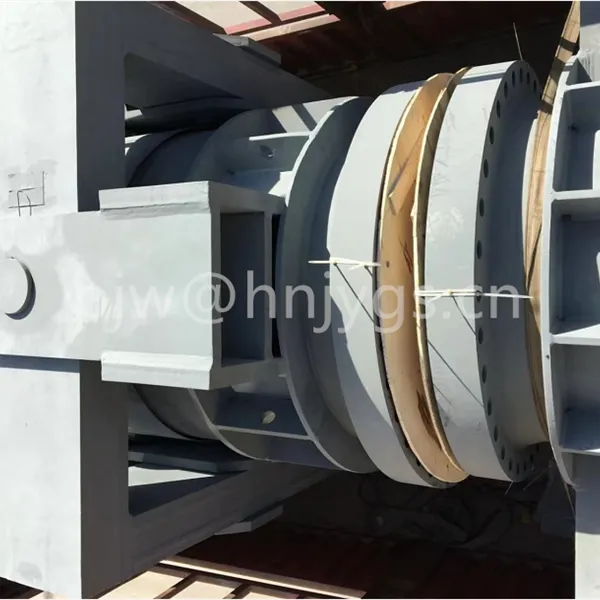

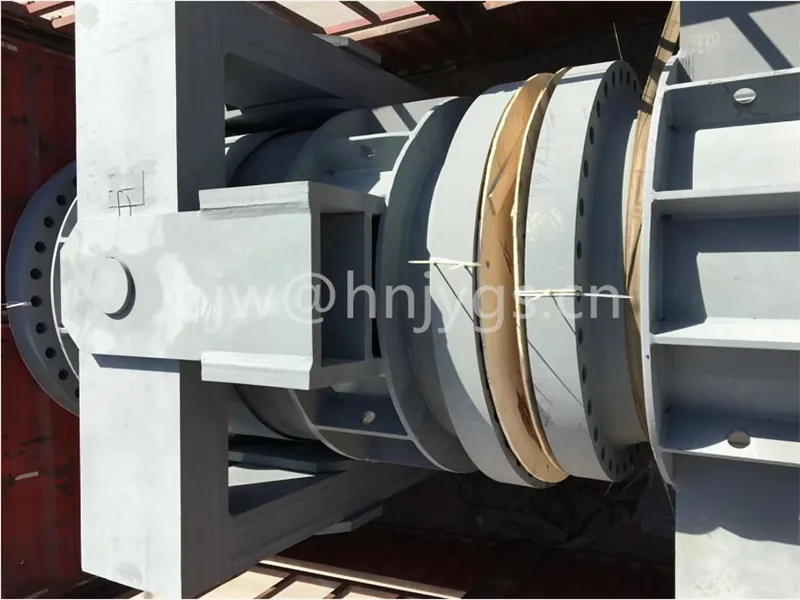

The universal hinge corrugated expansion joint is said to be a universal hinge compensator. The universal hinge corrugated expansion joint is composed of a corrugated pipe, a balance ring and two pairs of hinge plates connected with the balance ring and the end pipe. It is generally used in two universal hinge types or two universal hinge types and a single hinge together, which is suitable for "L" and "Z" pipe systems, mainly to compensate the synthetic displacement of multi-plane curved pipe segments by Angle deflection. Since the balance ring, pin and hinge plate can withstand the pressure thrust and other additional external forces, the expansion joint absorbs the internal pressure thrust itself, and does not produce external forces on the pipeline, so the setting of the pipeline support can be simplified.
The performance characteristics of the universal hinge corrugated expansion joint are as follows: it mainly compensates the resultant displacement of the multi-plane curved pipe segment by Angle deflection. Since the balance ring, pin and hinge plate can withstand the pressure thrust and other additional external forces, the expansion joint absorbs the internal pressure thrust itself, and does not produce external forces on the pipeline, so the setting of the pipeline support can be simplified. The universal hinge ripple compensator can compensate any upward angular displacement of the pipeline. The universal hinge expansion joint is different from the hinge type in that it has a universal ring, and there are two pairs of vertical hinge structures in the circumferential direction of the universal ring, so it can absorb the angular displacement of any plane, and two or three combinations are needed to absorb the displacement.
Application range of universal hinge corrugated expansion joint: To be applied to a variety of complex pipe systems, to compensate for the angular displacement of a variety of space pipe systems, such as L-shaped pipe, Z-shaped pipe, U-shaped pipe, etc.
Universal hinge compensator is mostly used to compensate the displacement of the three-dimensional pipe system, because of its unique structure, the pipe support does not bear the internal pressure thrust, only bear the elasticity of the compensator. The layout method is the same as that of the plane hinge.
The universal hinge compensator mainly compensates the resultant displacement of the multi-plane curved pipe segment by Angle deflection. Since the balance ring, pin and hinge plate can withstand the pressure thrust and other additional external forces, they absorb the internal pressure thrust themselves, and do not produce external forces on the pipeline, so the setting of the pipeline support can be simplified. The universal hinge ripple compensator can compensate any upward angular displacement of the pipeline. The universal hinge compensator is different from the hinge type in that it has a universal ring, and there are two pairs of vertical hinge structures in the circumferential direction of the universal ring, so it can absorb the angular displacement of any plane, and the same absorption displacement requires two or three combinations.
Design temperature of universal hinge compensator: -20~+400℃
