LINGTRY Probe Card Assembly System PCA-100

LINGTRY Probe Card Assembly System PCA-100 thumbnail-1
LINGTRY Probe Card Assembly System PCA-100 thumbnail-2
LINGTRY Probe Card Assembly System PCA-100 thumbnail-3
LINGTRY Probe Card Assembly System PCA-100 thumbnail-4
LINGTRY Probe Card Assembly System PCA-100 thumbnail-5
LINGTRY Probe Card Assembly System PCA-100 photo-1
LINGTRY Probe Card Assembly System PCA-100 photo-2
LINGTRY Probe Card Assembly System PCA-100 photo-3
LINGTRY Probe Card Assembly System PCA-100 photo-4
LINGTRY Probe Card Assembly System PCA-100 photo-5
US$ 4000 - 5000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
LINGTRY
Place of Origin:
China
Model Number:
PCA-100
Contact Supplier Request Quote Chat Now
Qingdao Lingtry Electronic Technology Company
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name LINGTRY
Place of Origin China
Model Number PCA-100

Application：

· Thick film laser trimming probe card assembly

· Thin film laser trimming probe card assembly

· Wafer trimming probe card assembly （need change chuck, with probe tilt option）


Feature：

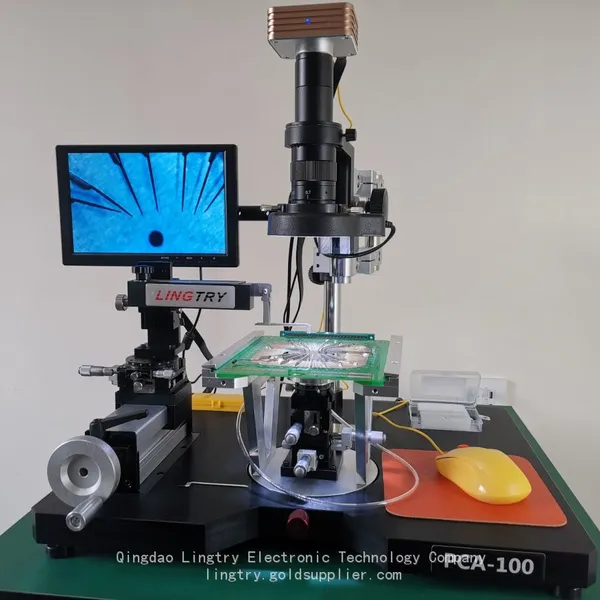

·With CCD monitor viewing, soldering works become more easlily and  fast, also more precisely

·Microscope movement can be ajusted by knob asily and smoothly.

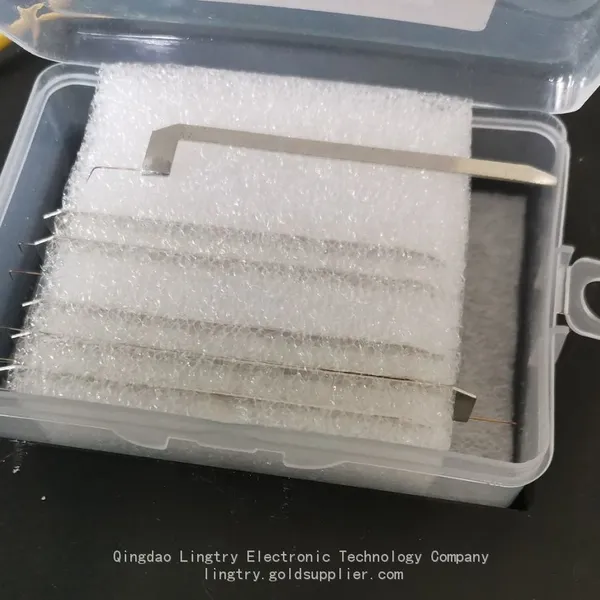

·left arm，360 degree rotate，easy to install blade probe.

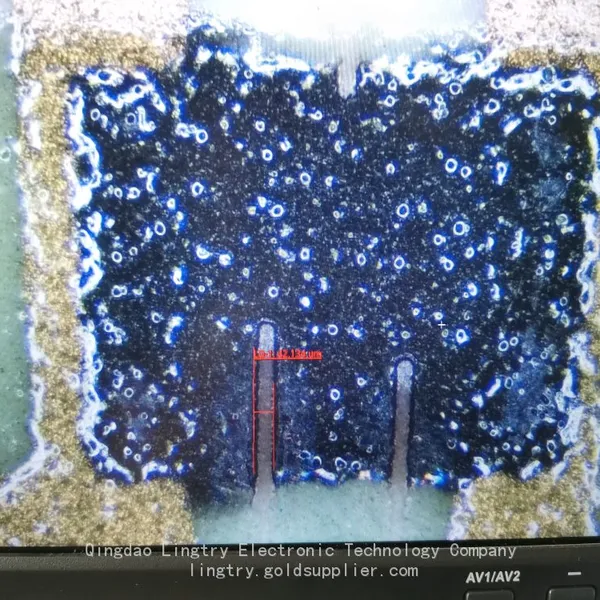

·can check trimming cut quality

·can test distance between probes, if need higher probing accuracy.

·image data can be stored in U-disk for future analysis.





                                PCA-100



Data specification



Parameters

Range

Chuck size

          60mm  (4 inch ，6inch  or customized ）

Probe card size

           4.5 inch，or 6.5 inch

Chuck Z movement

              10 mm

Chuck XY movement

              ±6.5 mm

Chuck rotate angle

              360 degree

Probe card rotate

360 degree

Probe arm  X coarse move

              60 mm

Probe arm  X fine move

              ±6.5 mm

Probe arm Y move

              100 mm

Probe arm Z move

              30 mm

Probe arm rotate

360 degree

Microscope Magnification

21X   to  135X

Prober size

500 mm x 400 mm x 370 mm

Weight

About 30KG




Product Tags: probe assembly , laser trimming , probe test
