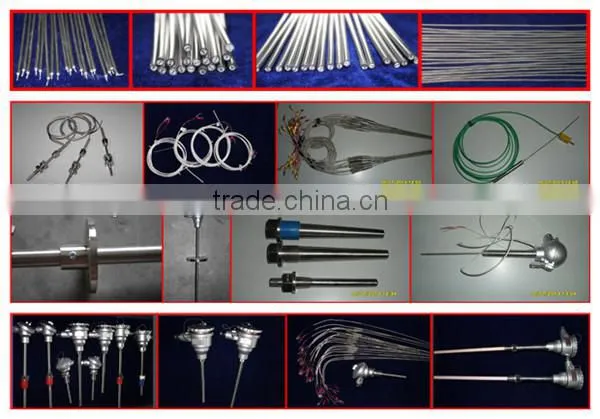

Industrial Head Assembly Thermocouple K
Specification
1.Model:WRKK-191;
2.Graduation Mark:K;(We also provide N,J,T,E type)
3.Core wire number:Simplex type( 2 cores);
4.Material of the outer protection tube:A-304/321(0Cr18Ni9) ;
5.Diameter of outer tube:1.0mm(Diameter from 0.5mm to 8.0mm available)
6.Thickness of outer tube:0.15mm;
7.Inner core element:NiCr/NiSi;
8.Diameter of core wire:0.18mm;
9.Length:100m;( can be customized);
10.Compensation wire:1500mm;( can be customized);
11.Measuring junction shape:cylinder, ring or customized
Package:1pc/bag,30bags/carton
Features:
Small external diameter, quick heat response, may be bent, long lifetime, fine air-tightness, wide thermometric scope, high voltage resistant, anti-vibration, narrow mounting pipeline, may be used under bending conditions.
All products can be customized only if with your specification, any comments will be appreciated.
