PMP Series Pre-Mix (peristaltic Pump) Juice Dispenser

PMP Series Pre-Mix (peristaltic Pump) Juice Dispenser photo-1
PMP Series Pre-Mix (peristaltic Pump) Juice Dispenser photo-2

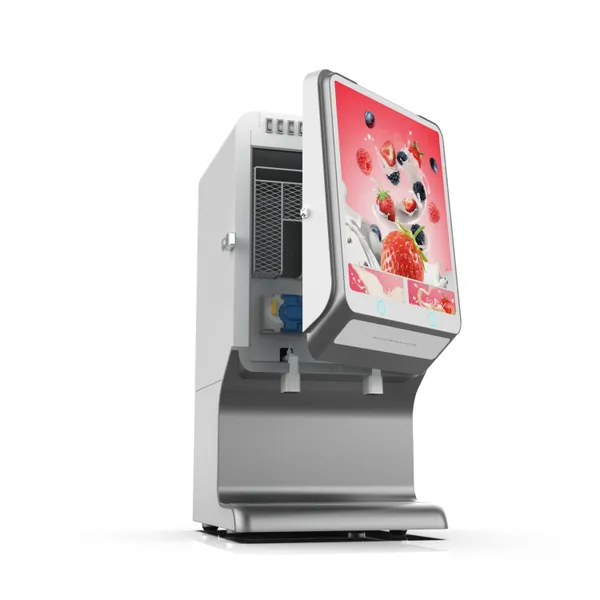

PMP Series Pre-Mix (peristaltic Pump) Juice Dispenser photo-3

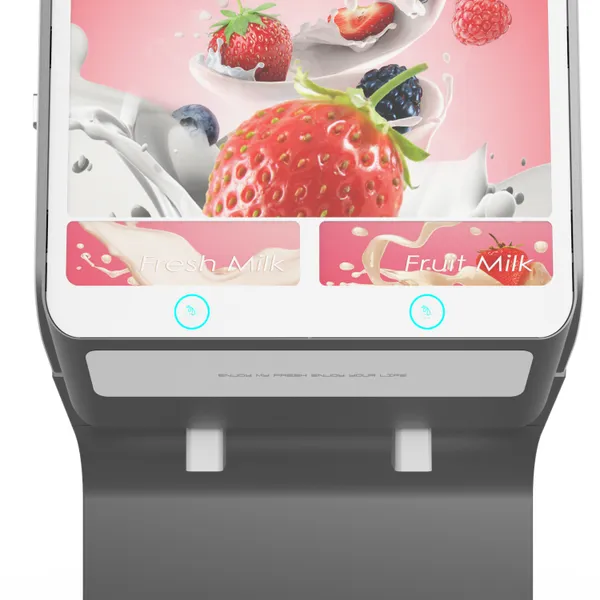

PMP Series Pre-Mix (peristaltic Pump) Juice Dispenser photo-4
US$ 350 - 500 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
ECOOL&Yicoo
Place of Origin:
China
Model Number:
PMP2C
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Brand Name ECOOL&Yicoo
Place of Origin China
Model Number PMP2C

PMP series (peristaltic pump) cold drink pre mixer (direct drinking type)


☆One click cup making;
☆LED surface light source light box;
☆Air cooling circulation inside the box;
☆High precision DC deceleration motor drive;
☆Quantitative/smooth drinking mode switching function, quantitative learning function for drinking time;
☆Switching function between business/closing modes;
☆Quick disassembly and patented slide valve body design;
☆BIB package suitable for butterfly valve, top needle valve, and puncture valve types;
☆Thickened microporous PU insulation storage room;
☆LCD advertising screen; (Optional)

Main technical parameters

      model

Parameter
mechanical valve series peristaltic pump series
PMS2T PMS2P PMS3T PMS3P PMP2C Mini-PMP1C
Push rod type pressure rod type push rod type pressure rod type
Number of valve ports 2 3 2 1
Climate type SN
Anti electric shock protection I
Power supply AC220V~,50Hz
Rated current (A) 0.30 0.60 0.30
Rated power (W) 60 80 60
Power consumption (kW. h/24h) 0.55 0.78 0.60
Total effective volume (L) 33 31 25 11
Storage temperature (ºC) 0~8
Refrigerant and filling amount R600a,29g R600a,19g
Foaming agent C-P/I-P
Noise dB (A) 40
Number of valve ports and packaging of raw materials 2×10L 3×7.5L 2×10L 1×10L
External dimensions (mm) width 435 x depth 525 x height 885mm width 300 x depth 525 x height 707mm
Net weight (Kg) 35 36 40 29


Explanation: 1. This power consumption is the standard power consumption when the device is powered on and running normally without cup making operation.
2. There is a possibility of technical upgrades in all products. If there are any changes, please refer to the product nameplate without further notice. We apologize for any inconvenience caused.
3. The length of the BIB material package used in the mechanical valve series products should not be less than 180mm, and the outer diameter should be between 10 and 16mm.
