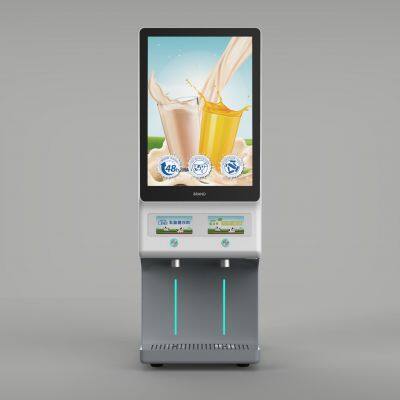

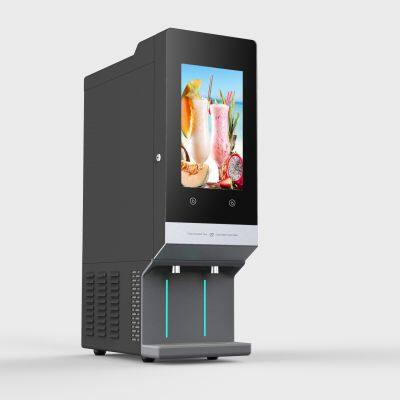

Pdr Series Beverage Post-Mix Dispenser

Mini PDR2C POST-MIX DISPENSER(concentrated type)

☆LED surface light source light box.
☆Fully enclosed fluid and mixing system, integrated with food grade components.
☆Patent one device dual cooling (water source coil rapid cooling and indoor air source wind tunnel circulating cooling) composite technology.
☆High precision hybrid stepper motor drive, dual mode (sugar content or proportion) mixing ratio adjustment and setting.
☆Quantitative/smooth drinking mode switching function, quantitative learning function for drinking time.
☆Switching functions for opening/closing/cleaning.
☆Cleaning warning and automatic cleaning function.
☆Quick disassembly patented slide valve body design.
☆Multi airbag magnetic door seal and microporous PU insulation storage room.
☆Refrigeration system fault diagnosis function.
☆Refrigeration NTC sensor fault diagnosis function.
☆Prompt for door opening timeout.

Product Introduction
PDR series beverage post-mix dispenser is a commercial refrigeration machine that stores concentrated fruit juice, lactic acid bacteria and tea pulp in cold storage, quickly cools drinking water at room temperature, and then quickly and fully mixes(dilutes)them into low-temperature drinks according to a certain proportion, and then cups them and sells them separately. Can be widely used in catering, shops, business, travel, leisure, entertainment, office and other business scenarios to achieve beverage solutions.

Product Performance

1. Mixing ratio: 1:3~1:9

2. Flow rate:(12oz/cup)

≤ 8s / cup(pipeline water supply, water supply pressure ≥2bar)
≤ 12s / cup(barrelled water)

1. Casual drink temperature: 5 ~ 9ºC;

2. Standard draw capacity:

(under the condition of 12oz/cup, ambient temperature of 25ºC, 2 cups/minute, meeting casual drink temperature)
6 cups;

1. Storage compartment temperature: 7±2ºC(by default, it can be set in the range of 5 ~ 12ºC)

Preparation time before using the machine: 15 minutes

Functional Configuration

Description:

• The standard model does not contain options.

• In[Single Valve]mode, when the water supply mode is running water, the water supply pressure shall be not less than 2 bar; When the water supply mode is barrelled water, the external submersible pump needs to be configured for use.

In [Multiple Valve] mode, the standard external water pressurization and pressure stabilization system must be configured, and when the water supply mode is barrelled water, the standard Liquid suction tube with water shortage protection function must be configured for use.

Main Technical Parameters

Note: all products may be upgraded. Please refer to the product nameplate for any change without
prior notice. Please understand.
