Home > Light Industry & Daily Use > Exhibition and Advertising Equipment > Display Stand > Pre-Mix Juice Dispenser

Pre-Mix Juice Dispenser

Ecool (Qingdao) Electronic Machinery Co., Ltd.
Pre-Mix Juice Dispenser thumbnail-1
Pre-Mix Juice Dispenser thumbnail-2
Pre-Mix Juice Dispenser thumbnail-3
Pre-Mix Juice Dispenser thumbnail-4
Pre-Mix Juice Dispenser thumbnail-5
Pre-Mix Juice Dispenser photo-1

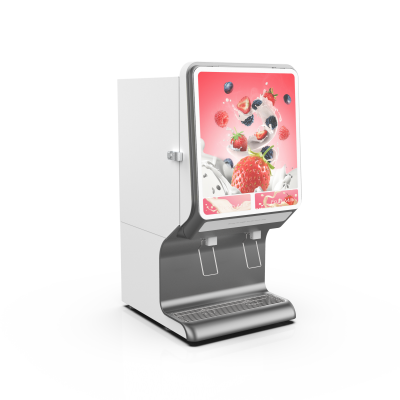

Pre-Mix Juice Dispenser photo-2
Pre-Mix Juice Dispenser photo-3
Pre-Mix Juice Dispenser photo-4
Pre-Mix Juice Dispenser photo-5
US$ 270 - 400 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
ECOOL&Yicoo
Place of Origin:
China
Model Number:
PMS2T
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ECOOL&Yicoo
Place of Origin China
Model Number PMS2T

Refrigeraged Pre-Mix Liquid Dispenser

☆LED surface light source lightbox
☆Quick assembly and disassembly patent sliding track valve design
☆304 stainless steel push rod or pressure rod
☆Thickened micro-porous PU insulation storage room

Main technical parameters

      model

Parameter		mechanical valve seriesperistaltic pump series
PMS2TPMS2PPMS3TPMS3PPMP2CMini-PMP1C
Push rod typepressure rod typepush rod typepressure rod type
Number of valve ports2321
Climate typeSN
Anti electric shock protectionI
Power supplyAC220V~,50Hz
Rated current (A)0.300.600.30
Rated power (W)608060
Power consumption (kW. h/24h)0.550.780.60
Total effective volume (L)33312511
Storage temperature (ºC)0~8
Refrigerant and filling amountR600a,29gR600a,19g
Foaming agentC-P/I-P
Noise dB (A)40
Number of valve ports and packaging of raw materials2×10L3×7.5L2×10L1×10L
External dimensions (mm)width 435 x depth 525 x height 885mmwidth 300 x depth 525 x height 707mm
Net weight (Kg)35364029


Explanation: 1. This power consumption is the standard power consumption when the device is powered on and running normally without cup making operation.
2. There is a possibility of technical upgrades in all products. If there are any changes, please refer to the product nameplate without further notice. We apologize for any inconvenience caused.
3. The length of the BIB material package used in the mechanical valve series products should not be less than 180mm, and the outer diameter should be between 10 and 16mm.


Product Tags: Pre--Mix Dispenser , Lactic Acid Bacteria , Fruit Juice , NFC , Yogurt , Commercial , Vegetable Juice , Refrigeraged , Prefabricated Fruit Juice
