Dependable Performance Surge Protective Devices Lightning Protector Surge Ethernet Surge Protector 10kv

FOB Price

US$ 0.1 - 2.0 / Piece

100 Pieces(Min. Order)

Port Shenzhen
Payment TermsT/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Key attributes

Industry-specific attributes

Type

T1+T2

Number of Pole

Rated Voltage

100-277V

Max Discharge current

10000 A

Other attributes

Place of Origin

Guangdong, China

Model Number

ZYS-P10A

Nominal Discharge current

10000 A

Rated working voltage/Un(VAC)

90-350V

Maximum working voltage/MCOV/Uc(VAC)

350V

Rated load current/IL(A)

Nominal discharge current/In(kA)

5KA

Maximum discharge current/Imax(kA)

10KA

Surge impulse voltage/Uoc

10KV

Voltage protection level/Up(V)

L-N,L-G/PE,N-G/PE≤1.5KV

power supply system

Waterproof grade

IP65

work environment

-40℃~+85℃

Packaging and delivery

Packaging Details

Carton Package

Selling Units:

Single item

Single package size:

20X15X10 cm

Single gross weight:

2.000 kg

Product Description

Overview

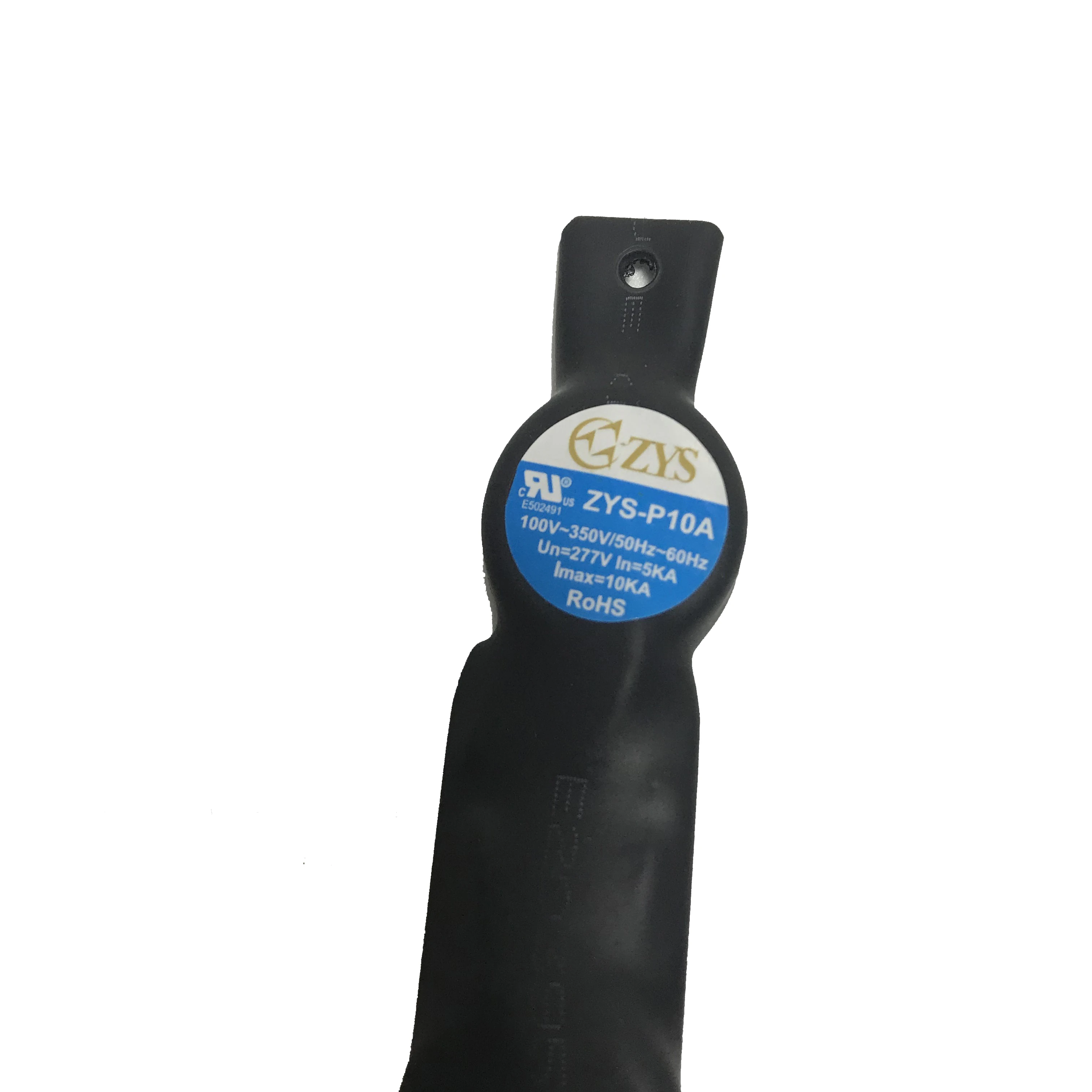

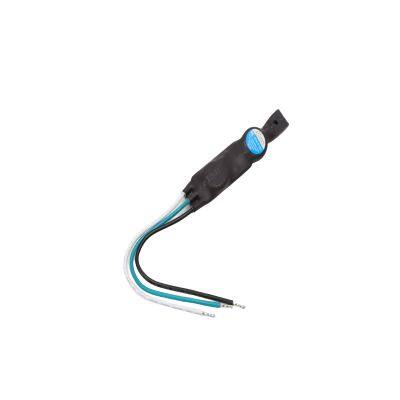

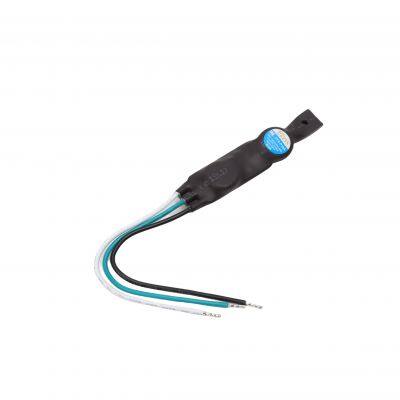

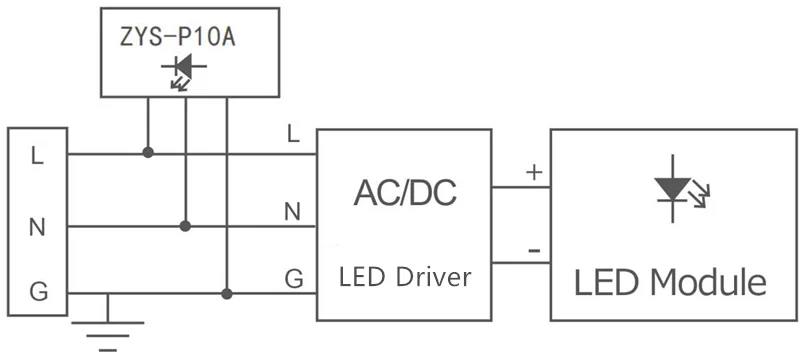

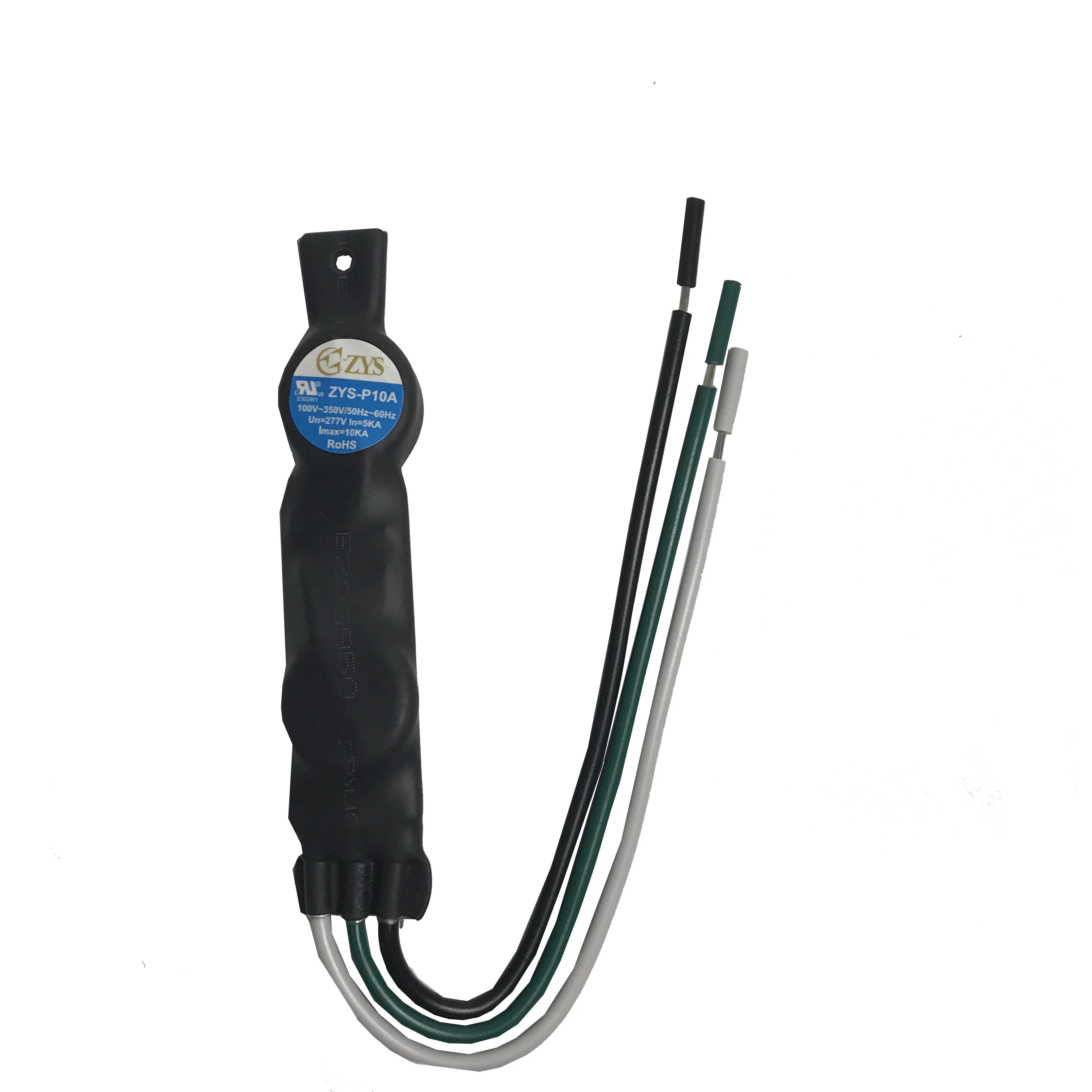

ZYS-P10A series surge protector is a transient over-voltage protection device specially used for outdoor LED lighting system. It is mainly composed of thermal protection varistor and gas discharge tube device. It can be installed in LED lamp or perpetual lamp and connected with LED power driver to provide reliable surge protection. It can effectively prolong the service life of lamps and improve the stability of lamps and lanterns.

Product Paramenters

Features

* Applicable to class I or II lamps
* Built in protection mode: L-N, L-PE,N-PE
* Built in thermal separation function for higher security
* Parallel isolation design, excellent protectionperformance
* Excellent surge resistance and very low residual voltage

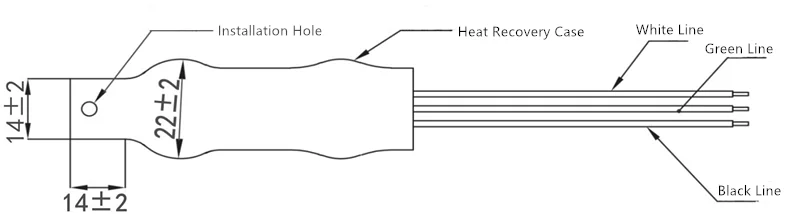

* Double green cable andwire

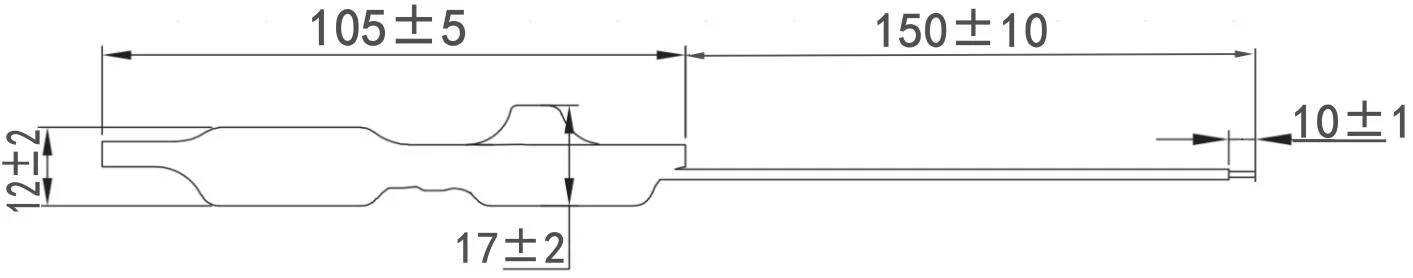

* The product is small and convenient for embedded installation
* IP62 dust proof and waterproof grade

Specification

Rated working voltage/Un（VAC）	90-350V
Maximum continuous working voltage/MCOV/Uc（VAC）	350V
Rated load current/IL(A)	5A
Nominal discharge current/In(kA)2	5KA
Maximum discharge current/Imax（kA）	10KA
Surge impulse voltage/Uoc（KV）	10KV
Voltage protection level/Up(V)	L-N,L-G/PE,N-G/PE≤1.5KV
power supply system	TN
Waterproof grade	IP62
work environment	-40℃~+85℃
