20KV 20KA Surge Protector Surge Arrester Protective Device SPD LED SPD Surge Protector

FOB Price

US$ 0.1 - 2.0 / Piece

100 Pieces(Min. Order)

Port Shenzhen
Payment TermsT/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Key attributes

Industry-specific attributes

Type

Singal protection

Rated Voltage

90-350v

Max Discharge current

10 A

Other attributes

Place of Origin

Guangdong, China

Model Number

ZYS-P20WD

Rated working voltage

100-277V

Maximum working voltage

320V

Rated load current/IL(A)

10A

Nominal discharge current/In(kA)

10KA

Maximum discharge current/Imax(kA)

20KA

Surge impulse voltage/Uoc

20KV

Voltage protection level/Up(V)

L-N/L-G/PE,N-G/PE≤1.8KV

power supply system

Waterproof grade

IP67

work environment

-40℃~+85℃

Packaging and delivery

Selling Units:

Single item

Single package size:

13X11X9 cm

Single gross weight:

1.000 kg

Product Description

Overview

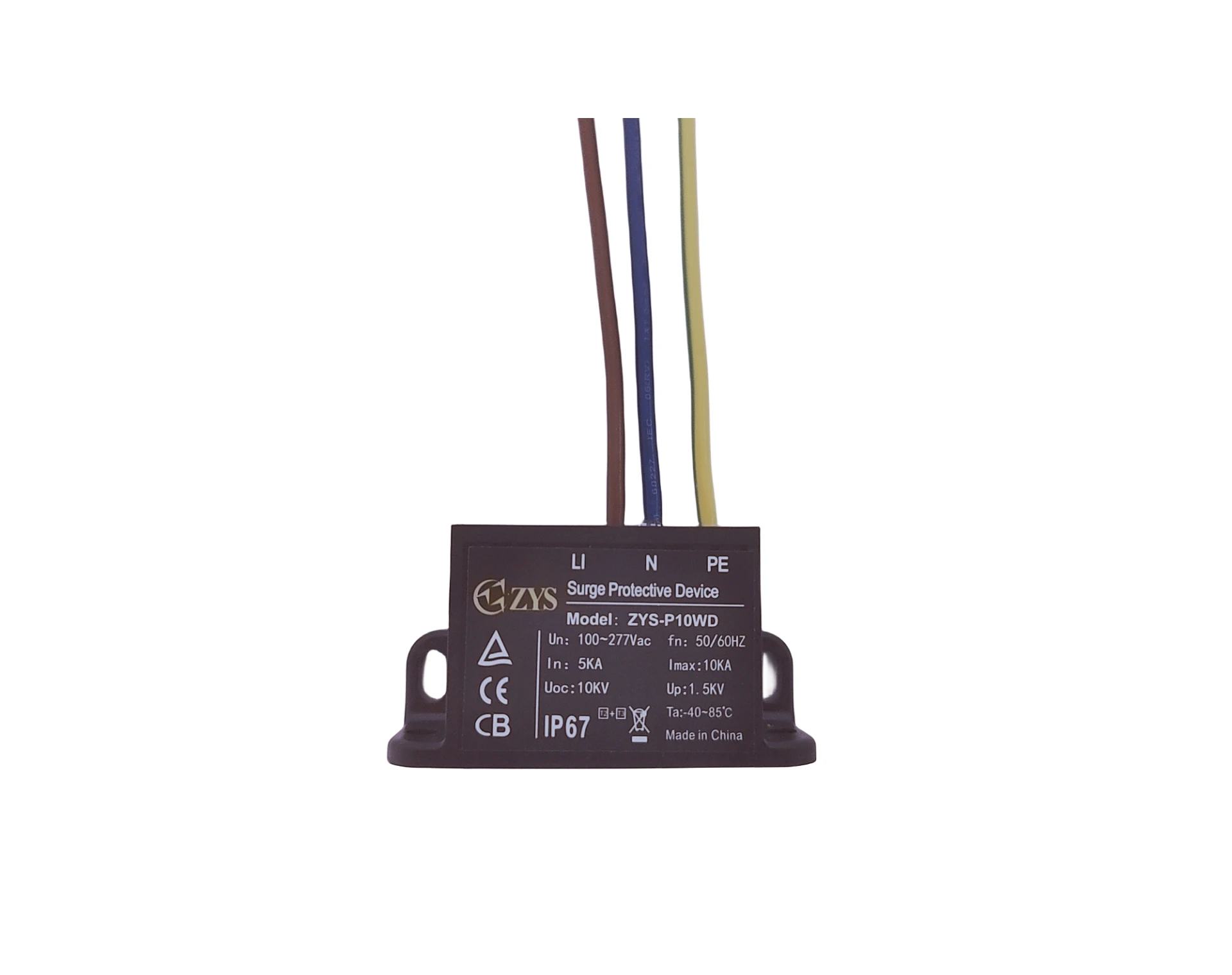

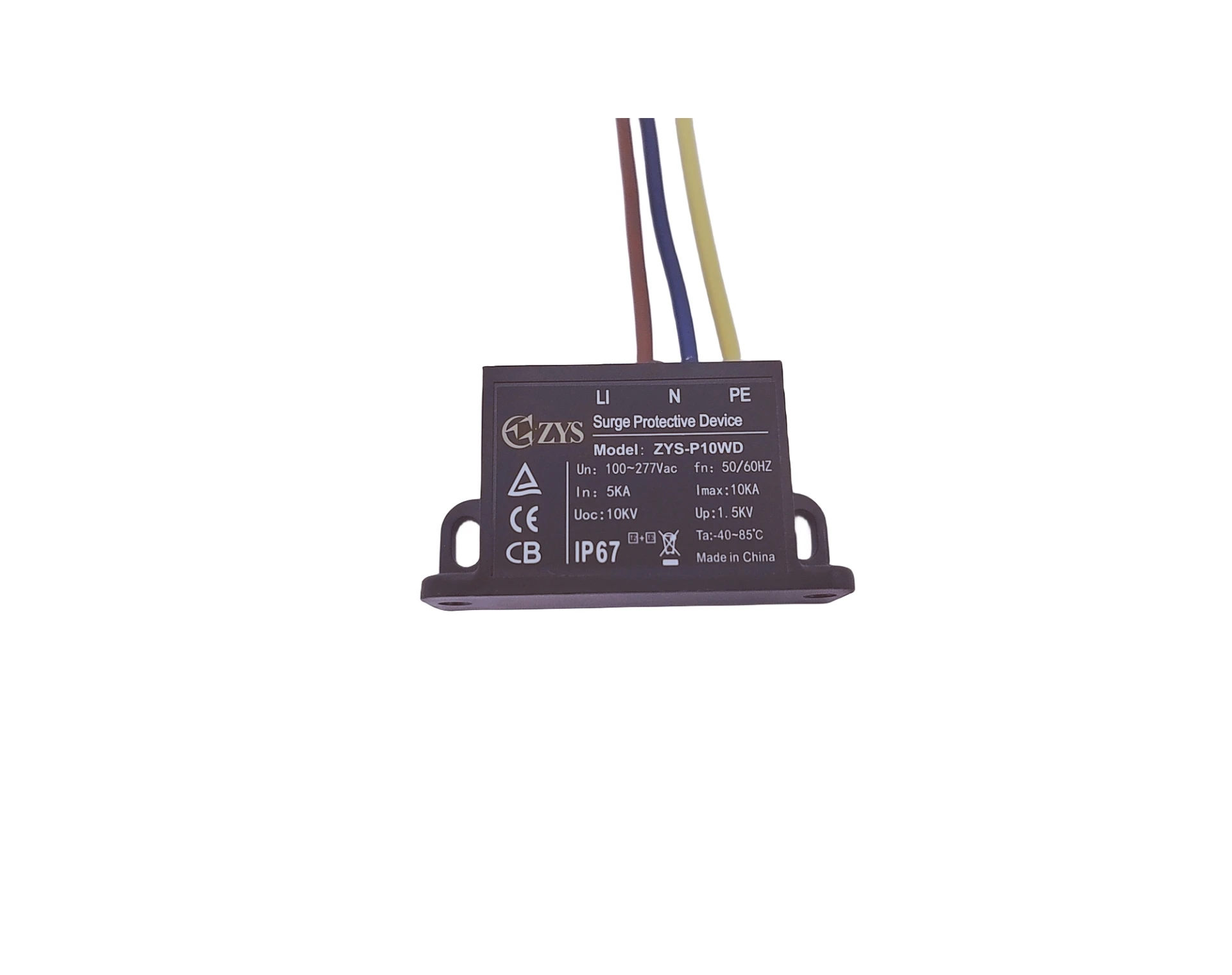

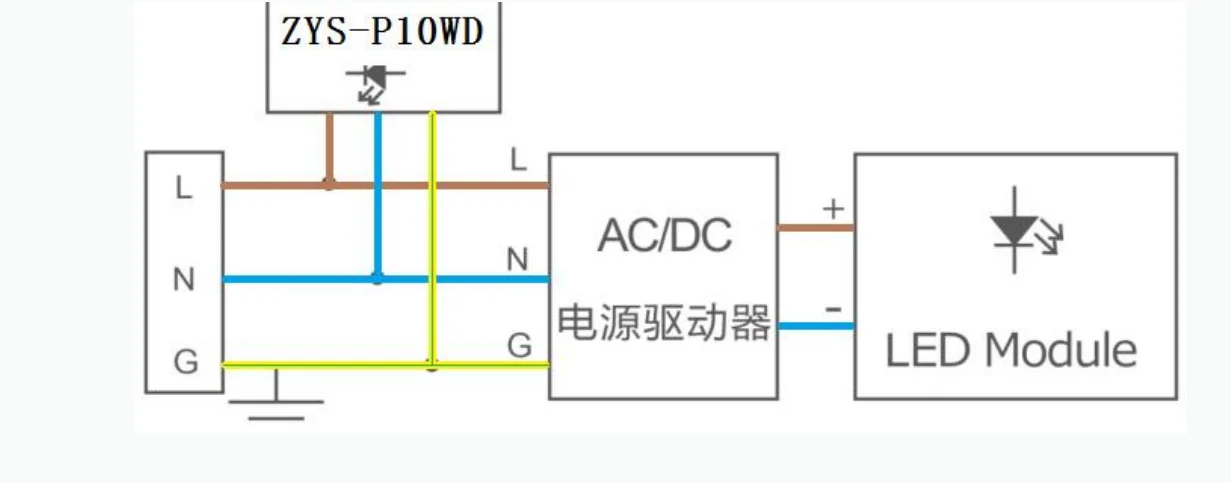

ZYS-P10WD series surge protector is a transient over-voltage protection device specially used for outdoor LED lighting system. It is mainly composed of thermal protection varistor and gas discharge tube device. It can be installed in LED lamp or perpetual lamp and connected with LED power driver to provide reliable surge protection. It can effectively prolong the service life of lamps and improve the stability of lamps and lanterns.

Product Paramenters

Features

Specification

Rated working voltage/Un（VAC）	100-277V
Maximum continuous working voltage/MCOV/Uc（VAC）	320V
Rated load current/IL(A)	5A
Nominal discharge current/In(kA)2	5KA
Maximum discharge current/Imax（kA）	10KA
Surge impulse voltage/Uoc（KV）	10KV
Voltage protection level/Up(V)	L-N≤1.5KV,L-G/PE,N-G/PE≤2.0KV
power supply system	TN
Waterproof grade	IP67
work environment	-40℃~+85℃
