Home > Metallurgy, Mineral & Energy > Solar & Renewable Energy > Solar Brackets > 2024 New Roller Brush For Solar Panel Cleaning Solar Panel Cleaning Kit

2024 New Roller Brush For Solar Panel Cleaning Solar Panel Cleaning Kit

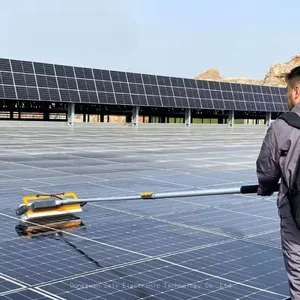

2024 New Roller Brush For Solar Panel Cleaning Solar Panel Cleaning Kit thumbnail-1
2024 New Roller Brush For Solar Panel Cleaning Solar Panel Cleaning Kit thumbnail-2
2024 New Roller Brush For Solar Panel Cleaning Solar Panel Cleaning Kit thumbnail-3
2024 New Roller Brush For Solar Panel Cleaning Solar Panel Cleaning Kit thumbnail-4

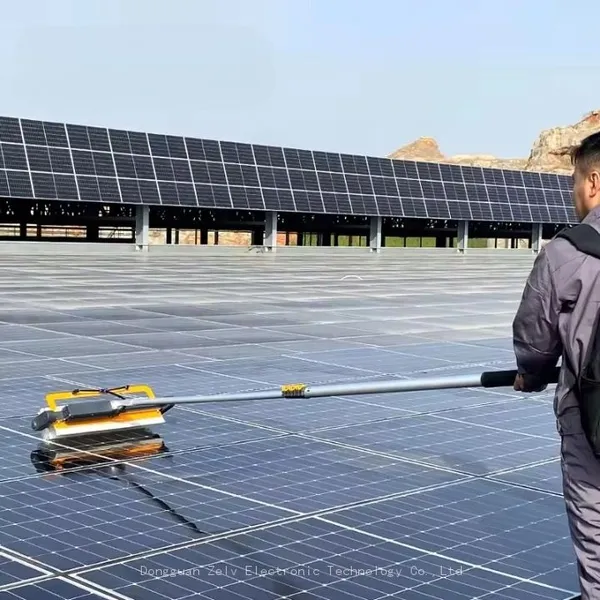

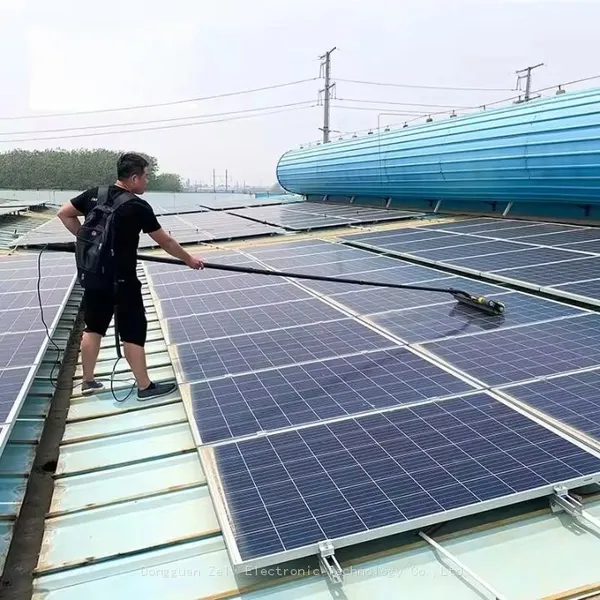

2024 New Roller Brush For Solar Panel Cleaning Solar Panel Cleaning Kit photo-1
2024 New Roller Brush For Solar Panel Cleaning Solar Panel Cleaning Kit photo-2
2024 New Roller Brush For Solar Panel Cleaning Solar Panel Cleaning Kit photo-3
2024 New Roller Brush For Solar Panel Cleaning Solar Panel Cleaning Kit photo-4
US$ 400 - 600 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
China
Type:
Other, Roller
Contact Supplier Request Quote Chat Now
Dongguan Zelv Electronic Technology Co.,Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
3 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Type Other, Roller

Key attributes

Other attributes
Place of Origin
Shandong, China
Warranty Time
1 year
Model Number
X5
Place of Origin
China
Product name
Photovoltaic cleaning machine
Application
Solar Power System
Material
Aluminum Alloy
Warranty
3months-1year
Four reasons for choosing
Photovoltaic roller brush X5
specification
Product parameter
Version
Powered version
Lithium battery version
Dual-use version
Battery life
---
4-5h
4-5h
Charging time
---
8-10h
8-10h
Lithium battery voltage
---
24v
24v
Lithium battery capacity
---
26ah
26ah
Wire length
16m
8m
16m
Water pipe length
20m
Motor voltage
24V
power of motor
150W
motor speed
700r/min
Cleaning width
60cm
Brush material
New nylon yarn
Telescopic rod parameters
Texture of wood
Aluminium alloy
3.5m telescopic rod
Shorten the size by 157cm/3 knots
5.5m telescopic rod
Shorten the size by 182cm/4 knots
7.5m telescopic rod
Shorten the size by 200cm/5 knots
Packing size
Length * width * height (cm)
weight (kg)
3.5m rod body packaging
157*10*10
3.6kg
5.5m rod body packaging
182*10*10
4.4kg
7.5m rod body packaging
200*10*10
5.2kg
Commercial power version box packaging
75*47*22
11.5kg
Box packaging of lithium plate
75*47*22
14.5kg
Dual-purpose box packaging
95*47*22
16.8kg
* Note: The product is packaged in split type with rod body and box bodywhich may lead to two deliveries;
Manufacturing Technique
Dual brush head design, easy to dry clean and wash.
This product update provides two kinds of brush heads,which can be used for dry cleaning and water washing.
Strip brush - lt is composed of compact rows of bristles, which can constantly flap and raise dust like a broom, so the effect of dry cleaningdust is remarkable;
Loose bristle brush - The uniform distribution of scattered bristles can driveaway sewage like a wiper and reduce the secondary pollution of sputtering, so it is more suitable for water washing;The uniform distribution of scattered bristles can drive away sewage like a wiper and reduce the secondary pollution of sputtering, so it is more suitable for water washing;
Generally speaking, water washing is more thorough than dry cleaning, and you can also choose according to your own water environment. Brush head replacement can be completed quickly in 2 minutes.
Pure copper brushless motor，more durable
More durable than ordinary brush motor, with a theoretical life of more than 10000 hours; At the same time, the motor itself has high dustproof and waterproof performance, and the dusty environment can be guaranteed not to be affected;
Principle of popular science: Brushless motor is electronically commutated without carbon brush; Brush motor commutates through carbon brush; Brushless motor is electronically commutated without carbon brush; Brush motor commutates through carbon brush;
Motor difference: Brushless motor has high efficiency, small size, no carbon brush wear and long life, but high cost; Brushed motor has low efficiency, large volume, worn carbon brush, short life, but low cost.
The whole machine is waterproof design, can be cleaned even in rainy days
to cope with the harsh environment of outdoor cleaning and the summary of product practice, the waterproof performance of the whole product can greatly improve the service life.
Therefore, this product adopts export-grade waterproof buttjoint and brushless waterproof motor. At the same time, the motor adopts integrated waterproof structure, which prevents water from soaking prevents short circuit and oxidation rust,and is still reliable on rainy days.
Self-driven brush head for easy operation
The brush head rotates at high speed to drive the cleaning machine forward, and it is effortless to push and pull by holding the telescopic rod.
Adjustable brush head speed
The suitable rotating speed can be adjusted according to the degree of dirt, water supply, usage habits and dry washing methods, so as to prevent secondary pollution caused by sewage sputtering due to too fast rotating speed, and also to avoid excessive traction caused by too fast rotating speed ofthe brush head, making the product easier to control;
How to choose
Mains electricity version
Equipped with a power converter, using 220V household electricity. lt is inconvenient to drag cables, so it is not suitable for moving and cleaning large-area power stations.
Lithium battery version
Equipped with a set of lithium battery and backpack, it can be carried on the body for cleaning, and the battery life is about 4 hours. lf the battery life is realized all day a lithium battery pack can be added. Compared with the commercial power version, there is no wire constraint, the effect is higher and it is suitable for most environments.
Double-use version    75% people choose
At the same time, it is equipped with a 220V to 24V DC power supply and a set of lithium batteries and backpacks which can be used on the back and last for about 4 hours.
How to supply water
