High Voltage 480V Outdoor LED Street Lighting SPD 10kA 10kV Surge Protection Device SPD Surge Protective

High Voltage 480V Outdoor LED Street Lighting SPD 10kA 10kV Surge Protection Device SPD Surge Protective photo-1

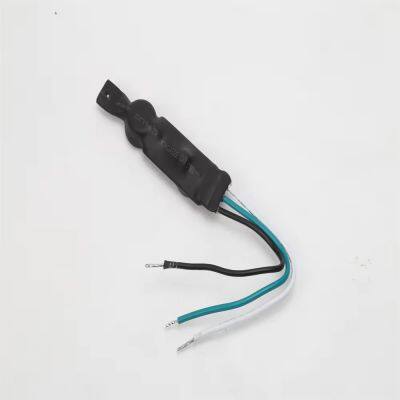

High Voltage 480V Outdoor LED Street Lighting SPD 10kA 10kV Surge Protection Device SPD Surge Protective photo-2
High Voltage 480V Outdoor LED Street Lighting SPD 10kA 10kV Surge Protection Device SPD Surge Protective photo-3
High Voltage 480V Outdoor LED Street Lighting SPD 10kA 10kV Surge Protection Device SPD Surge Protective photo-4
High Voltage 480V Outdoor LED Street Lighting SPD 10kA 10kV Surge Protection Device SPD Surge Protective photo-5
US$ 0.1 - 2.0 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2017
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
7 days
Key attributes
Industry-specific attributes
Number of Pole
2


Rated Voltage
277-480V


Max Discharge current
10000


Other attributes
Place of Origin
Guangdong, China




Model Number
ZYS-P10H


Nominal Discharge current
5000


Rated working voltage/Un(VAC)
249-510V


Maximum working voltage/MCOV/Uc(VAC)
510V


Rated load current/IL(A)
5A


Nominal discharge current/In(kA)
5KA


Maximum discharge current/Imax(kA)
10KA


Surge impulse voltage/Uoc
10KV


Voltage protection level/Up(V)
L-N,L-G/PE,N-G/PE≤1.5KV


power supply system
TN


Waterproof grade
IP62


work environment
-40℃~+85℃


Packaging and delivery
Packaging Details
Carton Package

Port
Yantian Port


Supply Ability
Supply Ability
5000000 Piece/Pieces per Year



Product Description
Overview

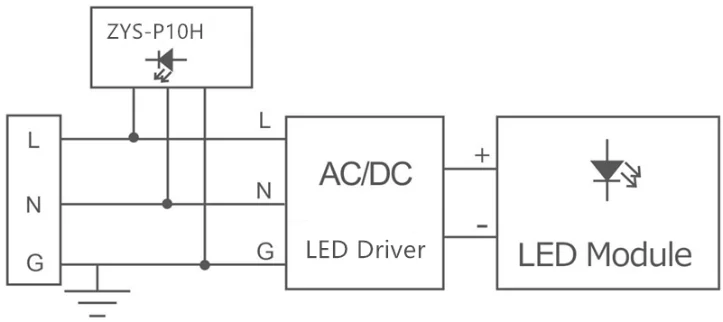

ZYS-P10H series surge protector is a transient over-voltage protection device specially used for outdoor LED lighting system. It is mainly composed of thermal protection varistor and gas discharge tube device. It can be installed in LED lamp or perpetual lamp and connected with LED power driver to provide reliable surge protection. It can effectively prolong the service life of lamps and improve the stability of lamps and lanterns.
Product Paramenters
Features
* Applicable to class I or II lamps
* Built in protection mode: L-N, L-PE,N-PE
* Built in thermal separation function for higher security
* Parallel isolation design, excellent protection performance
* Excellent surge resistance and very low residual voltage
* Double green cable andwire
* The product is small and convenient for embedded installation
* IP62 dust proof and waterproof grade
Specification
Rated working voltage/Un(VAC)
249-510V
Maximum continuous working
voltage/MCOV/Uc(VAC)
510V
Rated load current/IL(A)
5A
Nominal discharge current/In(kA)2
5KA
Maximum discharge current/Imax(kA)
10KA
Surge impulse voltage/Uoc(KV)
10KV
Voltage protection level/Up(V)
L-N,L-G/PE,N-G/PE≤1.5KV
power supply system
TN
Waterproof grade
IP62
work environment
-40℃~+85℃
